ZQ 1560GT Touch Monitor

Downloads

File	Size	Download
ICS_ZQ-1560.pdf	555.11KB	Download

Description

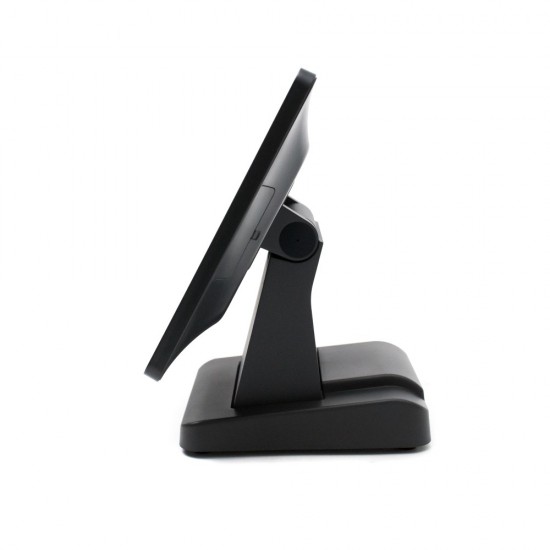

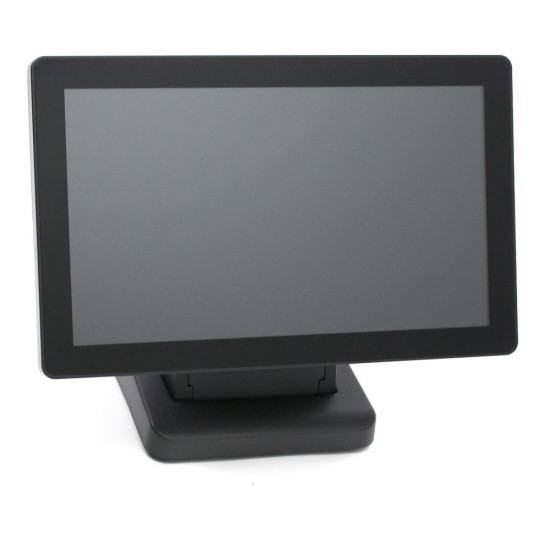

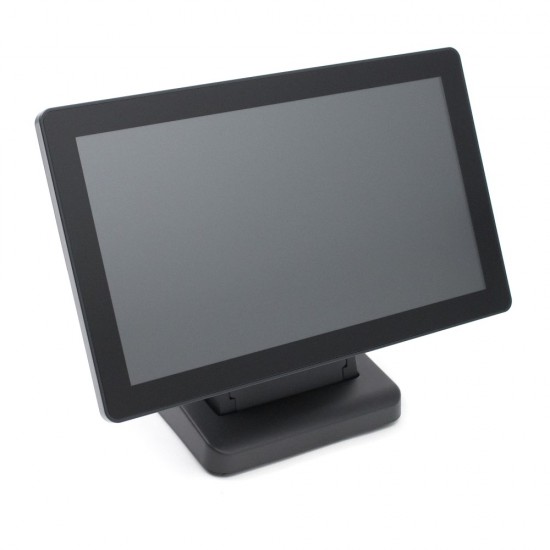

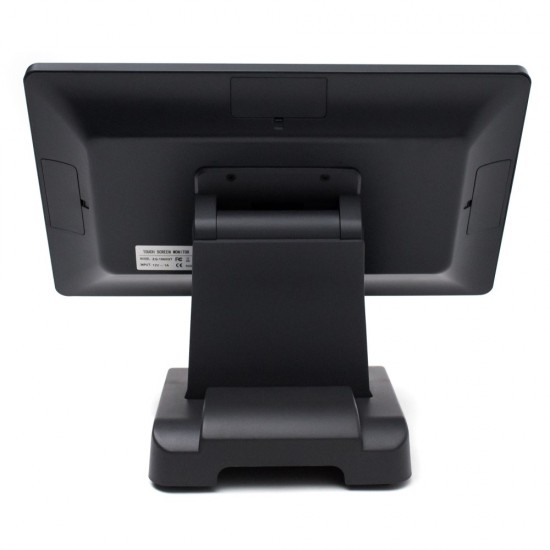

Touch Monitor ZQ 1560GT

Flat touch panel design with 15.6"TFT LCD normal screen touch monitor. Stable and solid qualified base. Wide adjusting angle for display panel. Multi-point capacitive touch solution. LED life 30.000hours, resolution 1920x1080, luminance of white 300cd/sqm, viewing angle range (min) 75 degree, response time (white black) 35mx. Data Interface VGA. Interface type USB. Dimensions 39.4 x 21 x30.2cm. Weight 4.2kg.

ICS

Specifications

Monitors
Monitor specifications	15.6 “TFT LCD
Monitor Technology	Capacitive multi-points normal screen touch monitor
Brightness	250cd/m2
Resolution monitor	1920x1080

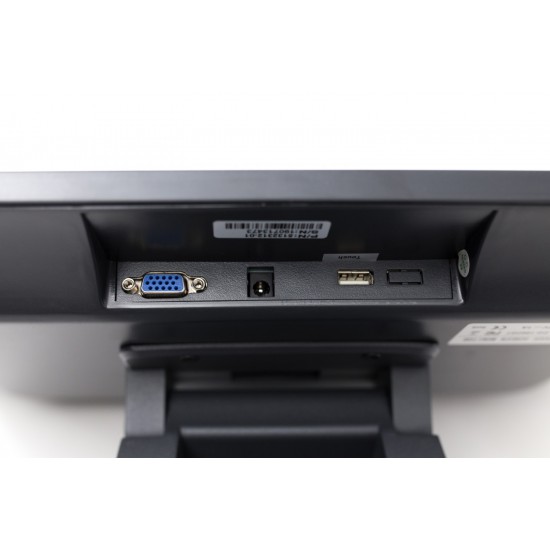

Interface	VGA/ USB
USB Ports	USB
VGA Ports	VGA
Other ports for monitors	DC
Power monitor	AC: 100-240V-1.8A, 50-60Hz DC: 12V/2.5A/ Power Consumption under Operating Mode: 20W/ DPMS Sleep Mode: <1W
Dimensions /weight	394x21x302mm/ 4.2kgr
Additional features - Monitor	Responce time 35ms/ Contrast Ratio 900~1500/ Viewing Angle Range(min) 75 degrees/ Operating Temperature & Humidity -10-60℃ ≤65%RH/ Storage Temperature & Humidity -20-70℃ ≤85%RH.
