ZD-500 Barcode Printer

ZD-500 Barcode Printer

Downloads

File	Size	Download
zebra-zd500-barcode-printer-datasheet.pdf	582.52KB	Download

Description

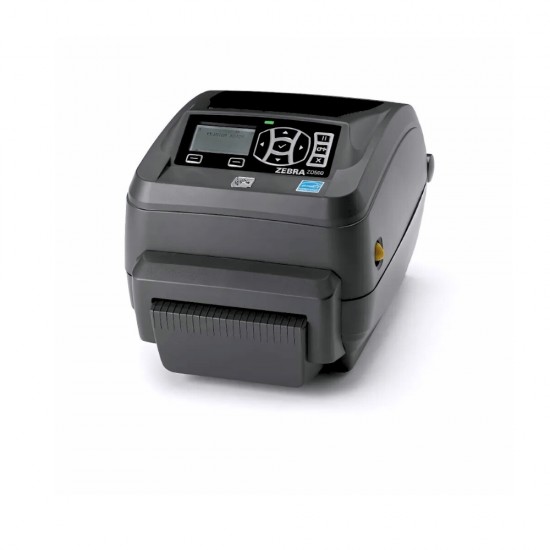

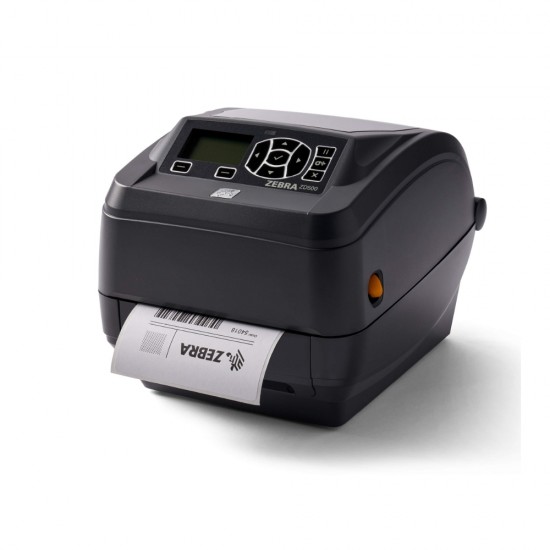

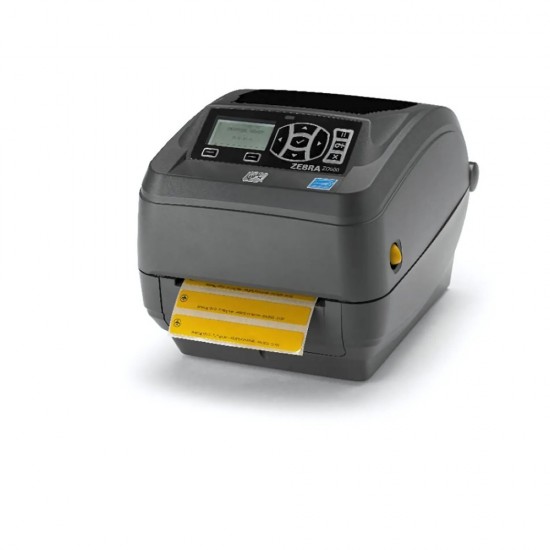

Zebra ZD500 Direct Thermal printer USB, RS-232, Ethernet, Parallel, Wireless, Bluetooth

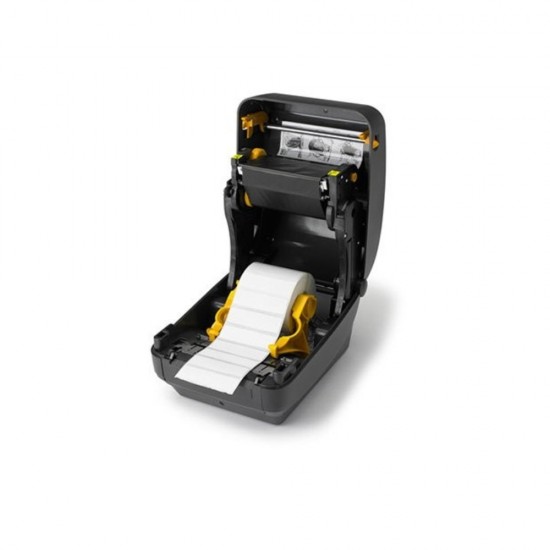

Thermal transfer or direct thermal printer with ZPL® programming language and dual-wall frame construction. Tool-less printhead and platen replacement. OpenACCESS™ for easy media loading, quickly and easily. Simplified calibration of media and quad connectivity: USB, Parallel, Serial, and Ethernet. Real-time clock and LCD user interface.

ZEBRA

Specifications

Barcode Printers
Printing technology	Direct Thermal or Thermal transfer
Printing Speed	152mm/sec 203dpi/ 102mm 301dpi
Printing Width	104mm
Printing Resolution	203 dpl/8 dots per mm. Optional 300dpi/12 dots per mm
Memory	256MB Flash, 128MB SDRAM
Interfaces printers	RS-232 auto-sensing Serial interface, DB-9. USB V2.0, bi-directional. Centronics® Parallel 36 pin. Ethernet – 10/100 internal. Wireless – 802.11 a/b/g/n and Bluetooth 3.0.
Additional features	Programming Language: ZPL II. Operating Temperature: 40º to 105ºF (4.4º to 41ºC). Storage Temperature: -40º to 140ºF (-40º to 60ºC). Dimension: 191x193x254mm/ Weight: 2.1kg.
