SP72-V 2D Scanner

SP72-V 2D Scanner
SP72-V 2D Scanner
SP72-V 2D Scanner
SP72-V 2D Scanner
SP72-V 2D Scanner
SP72-V 2D Scanner
SP72-V 2D Scanner
SP72-V 2D Scanner
SP72-V 2D Scanner

Downloads

File Size Download
sp72-series-spec-sheet-en-us.pdf 284.24KB Download
SP72 Series Single-Plane Scanners (1).pdf 454.88KB Download

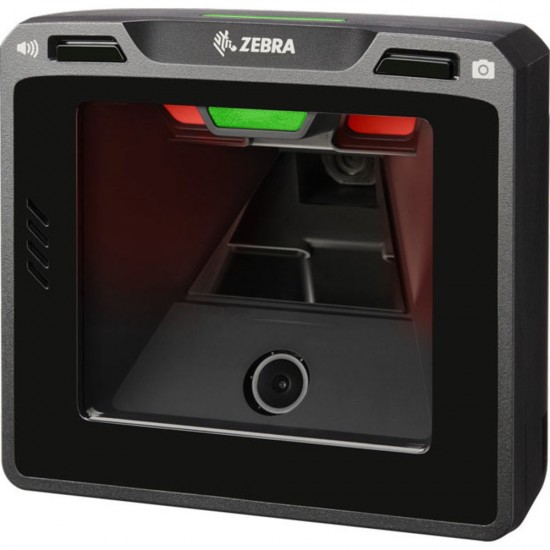

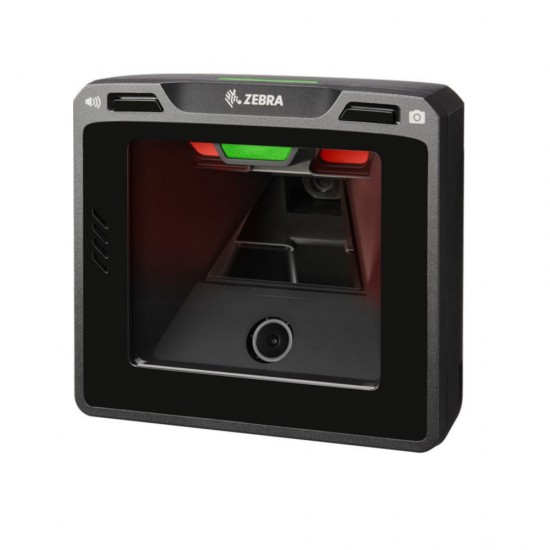

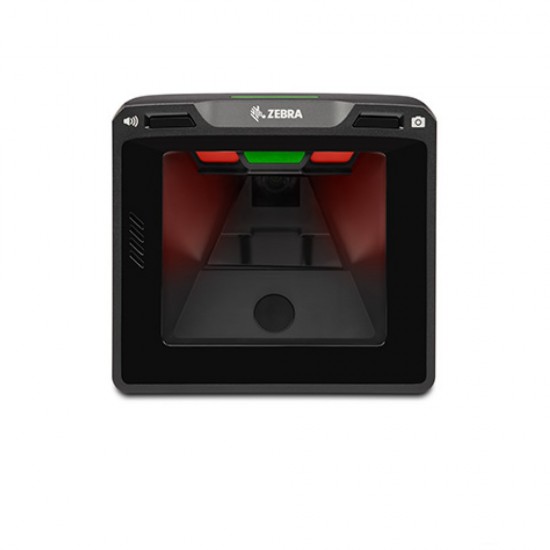

Zebra SP72-V Scanner Vertical 1D/2D

Innovative features like optional color camera to enable vision-based applications, the SP72 Series scanner frees associates to do higher-priority tasks and better serve shoppers while minimizing the risk of shrink.The vertical SP72-V can be placed on a counter or mounted on a wall or table, its flat face design fits flush into self-checkouts and kiosks.The vertical SP72-V is the first single-plane scanner with a 2.3 MP color camera option. The camera provides a large field of view and captures even the smallest details, enabling a wealth of vision-based applications to help minimize shrink and fraud at self-checkout. An application can identify a mismatch between the item scanned and the associated barcode — for example, if a barcode from a less-expensive item is placed on a more expensive item for purchase. And the presence of a live video stream can deter customers from attempting checkout fraud.IP52 sealing protects against spills and dust. Multiple on-board interfaces ensure compatibility with all popular POS systems and auto-host detect cables simplify installation. Boosts productivity and reduces shrink with optional EAS support.

Specifications

Scanners
Reading mode 1D, 2D, Digimarc®, paper and mobile barcode.
Scanning range/ Width of Field 54° H x 35.5° V nominal
Scan Rate Ρυθμός σάρωσης Up to 120 in./305 cm per second for 13 mil UPC in optimized mode
Resolution Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil
Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Dimensions 13.7 cm H x 15.2 cm W x 8.4 cm D
Weight 577gr
Ambient light 0 to 8,000 Foot Candles/0 to 86,100 Lux
Symbologies 1D: All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). 2D: All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm. Digimarc barcodes. Minimum Input Resolution: Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil
Additional features Supports over 90 international keyboards. Operating Temperature 32.0° to 104.0° F/0.0° to 50.0° C. Storage Temperature -40.0° to 158.0° F/-40.0° to 70.0° C. Environmental Sealing IP52. Input Voltage Range 4.7 to 5.2 VDC host powered, 11 to 13 VDC external power supply. Accessories SP72-V: Table Mount Bracket, Riser Mount Bracket.
