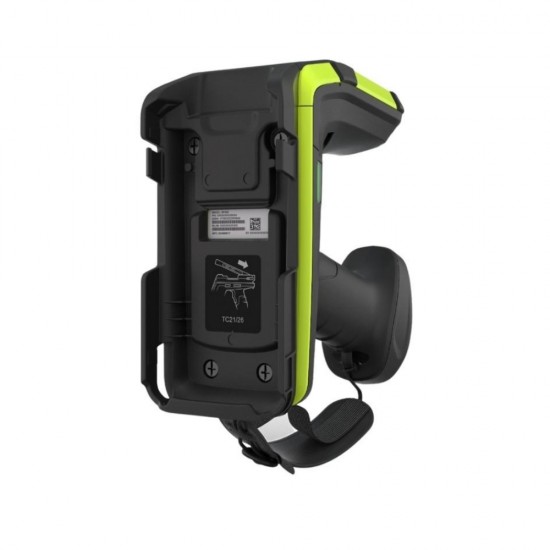

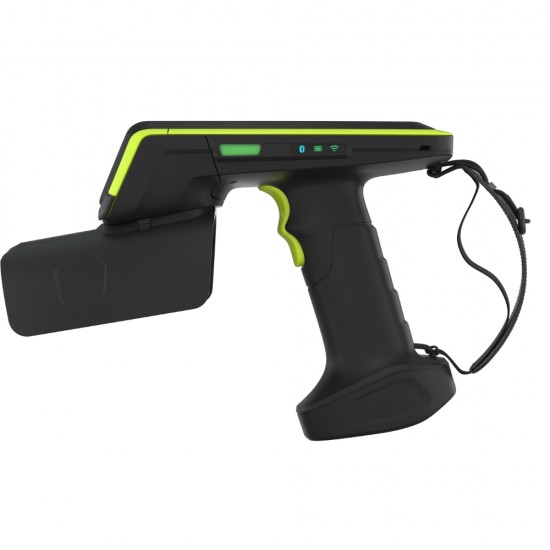

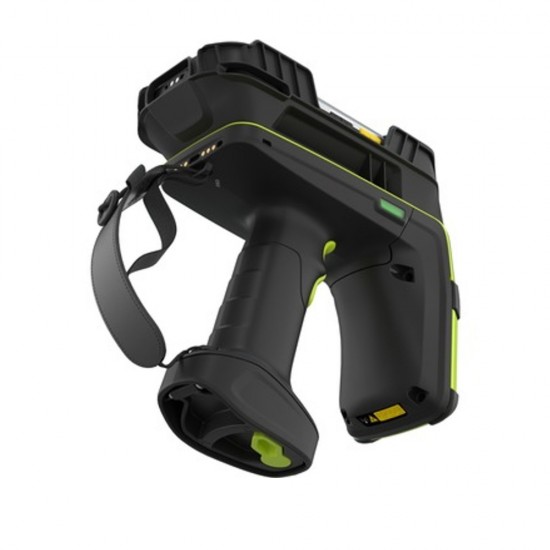

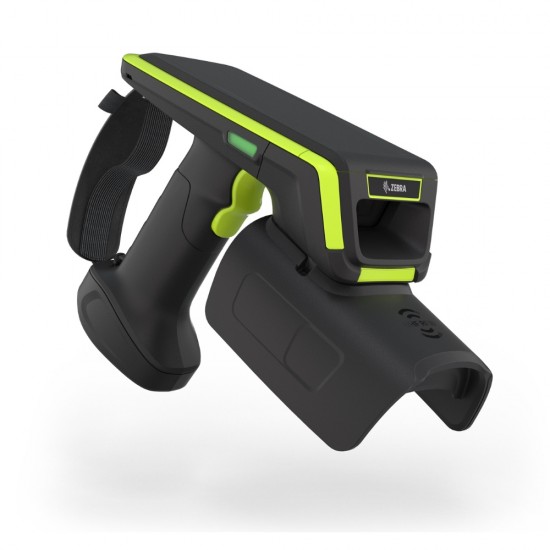

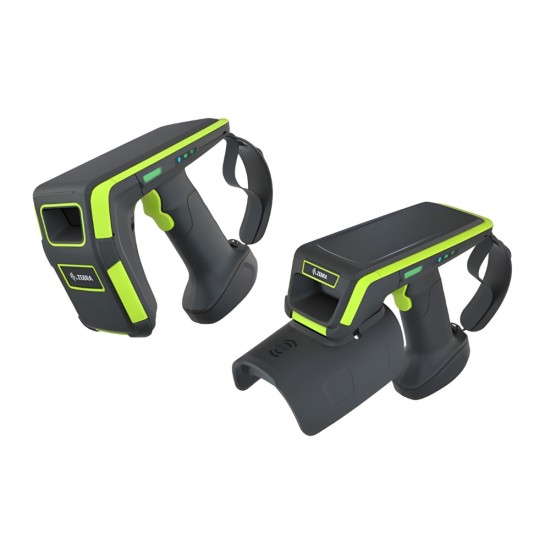

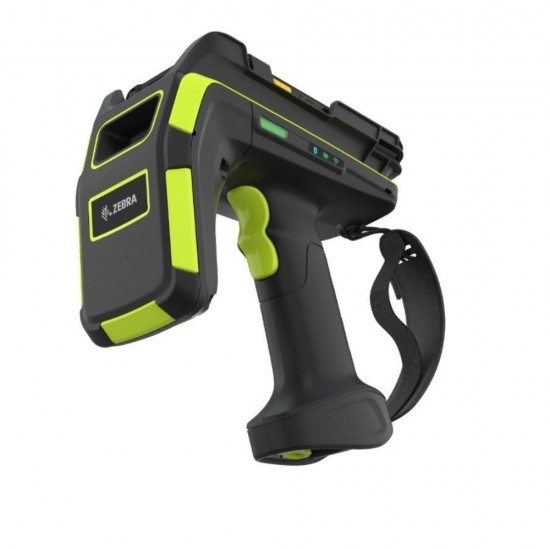

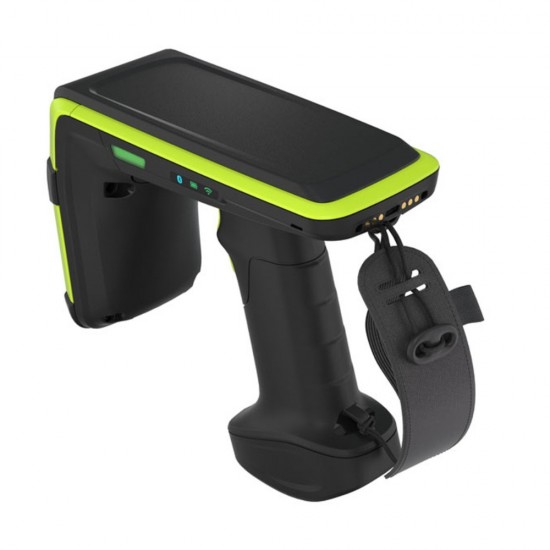

Zebra RFD90 Ultra-Rugged UHF RFID Sleds

Zebra’s RFD90 Ultra-Rugged UHF RFID Sleds are engineered to withstand everyday use across a wide variety of harsh conditions, including manufacturing, transportation and logistics environments. These ultra-rugged sleds are dust-proof, spray-proof, water-proof and tested for drops up to 6 feet (1.8 meters) onto concrete surfaces. And superior ergonomics contribute to worker comfort and productivity by reducing strain. With a robust read rate of 1,300 tags per second, RFD90 Sleds enable rapid inventory counts and increase workflow accuracy.


Specifications

Device
Network Wireless LAN. RFID Engine Zebra Proprietary Radio Technology. Standards Supported EPC Class 1 Gen 2; EPC Gen2 V2
Ports Electronic 8-Pin Connection (eConnex™). Bluetooth 5.3. USB Cable Cup
Environment Operating Temperature -40°C to +55° C. Storage Temperature -40°C to +70°C. Humidity 5-95% non-condensing. Sealing IP65
Additional device features EMI/EMC: FCC Part 15 Subpart B Class B; ICES 003 Class B; EN 301 489-1; EN 301 489-3; EN 55024; EN 55032 Class B Electrical Safety : IEC 62368-1 (ed.2) UL 62368-1, second edition, CAN/CSA-C22.2 No. 62368-1-14 RF Exposure EU: EN 50364, EN 62369-1, EN 50566, EN 62311; USA: FCC Part 2. 1093 OET Bulletin 65 Supplement ‘C’; Canada: RSS-102 RFID EU EN 302 208, FCC Part 15 Subpart C; Canada: RSS-247
RFID RFID Engine Zebra Proprietary Radio Technology. Fastest Read Rate 1,300+ tags/sec. Nominal Read Range RFD9090: ~75 ft./~22.9 m.
