MC32 Gun Mobile Computer

Downloads

File	Size	Download
mc3200-datasheet.pdf	235.79KB	Download
mc3200-accessories.pdf	1.16MB	Download

Description
Video

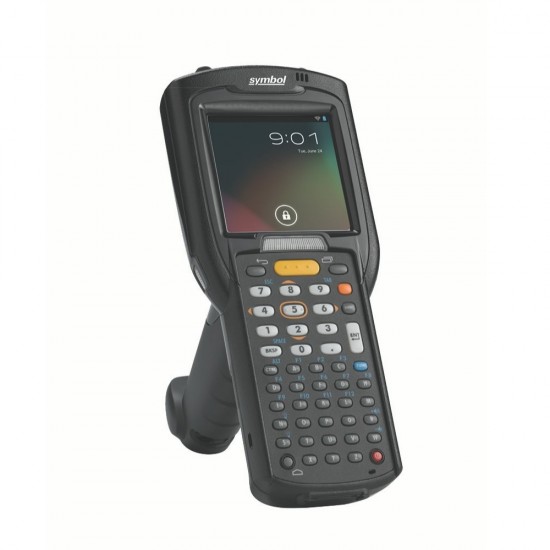

Zebra MC3200 Gun Mobile Computer

Redefine productivity and reliability with the MC3200 mobile computer, the next generation in the class-leading MC3000 Series, now with more options to meet your needs. Choose the right operating system for your business – Android™ Jelly Bean or Microsoft™ Embedded Compact 7. Your choice of our most advanced 1D laser or 1D/2D imager scan engine allows your workers to easily capture barcodes in any condition. Three lightweight models – brick, gun and turret – bring all day comfort to every task – from cycle counting to put away, replenishment and voice-directed picking. And with over a million and a half MC3000 Series devices sold to date, you get a well-tested device you can trust.

ZEBRA

Specifications

Mobile Terminals
Monitor pda	3.0 in. color (TFT) (320 x 320) display. Touch Panel Chemically strengthened glass, resistive touch. LED Backlight.
Operation System	Choice of Windows Embedded Compact 7.0 (Standard or Premium) or Android 4.1 (Premium).
CPU pda	Dual core 800 MHz OMAP4 Processor (Standard) or Dual core 1 GHz OMAP4 processor (Premium).
Memory pda	512 MB RAM/2 GB Flash (Standard). 1 GB RAM/4 GB Flash (Premium)/ Expansion Slot: User accessible Micro SD slot; (supports up to 32 GB microSDHC).
Communication	Bluetooth Class II, v2.1 with Enhanced Data Rate (EDR); integrated antenna.
Interface-Ports	USB 1.1 Full Speed Host/ Client or RS232
Barcode scanner	1D Laser(1): SE965 Standard Range with Adaptive Scanning (all models)/ 1D/2D Imager: SE4750-SR, 4750-MR (Straight Shooter and Gun models only)
Battery pda	PowerPrecision Li-Ion batteries. Two options: High Capacity 4800 mAh or Standard Capacity 2740 mAh (not available on gun form factor)
Keyboard	28-key Numeric, 38-key Shifted Alpha, 48-key Alpha-Numeric.
Sealing	IP54
Resistance	Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G
Dimensions/ Weight pda	Dimensions: Straight Shooter: 7.49 in. L x 3.22 in. W x 1.78 in. D 190.4 mm L x 81.9 mm W x 45.2 mm D At grip: 2.40 in. W x 1.35 in. D 60.9 mm W x 34.2 mm D/ Rotating Turret: 8.37 in. L x 3.22 in. W x 1.57 in. D 212.6 mm L x 81.9 mm W x 40.0 mm D/ At grip: 2.40 in. W x 1.35 in. D 60.9 mm W x 34.2 mm D/ Gun: 7.59 in. L x 3.18 in. W x 6.5 in. D 192.7 mm L x 80.8 mm W x 166 mm D/ Weight (including strap, stylus, and battery) Straight Shooter: 12.88 oz./365 g/ Rotating Turret: 13.13 oz./372 g (with standard battery)/ Gun: 18.0 oz./509 g (with extended battery)
Accessories	Convenient belt holsters, protective covers, reliable power supplies, durable USB cords and extended batteries.
Additional features mobile terminals	Audio: Speaker, microphone and headset connector (2.5 mm jack)/ ESD: EN61000-4-2; ± 20kV Air discharge, ± 10kV direct discharge, ± 10kV indirect discharge.
