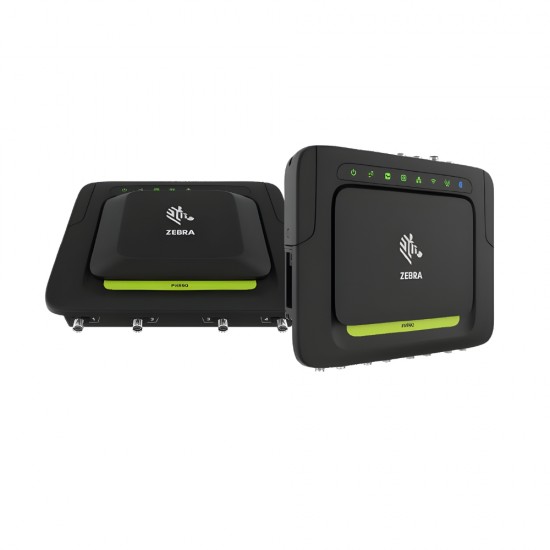

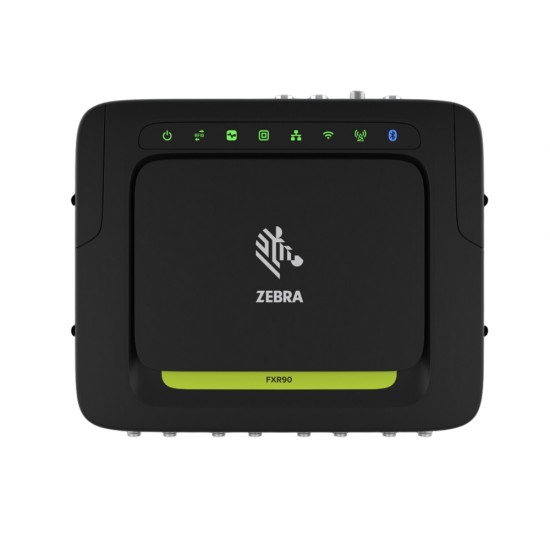

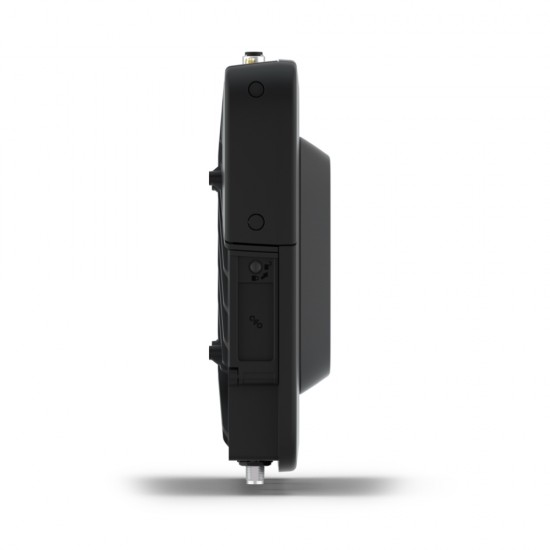

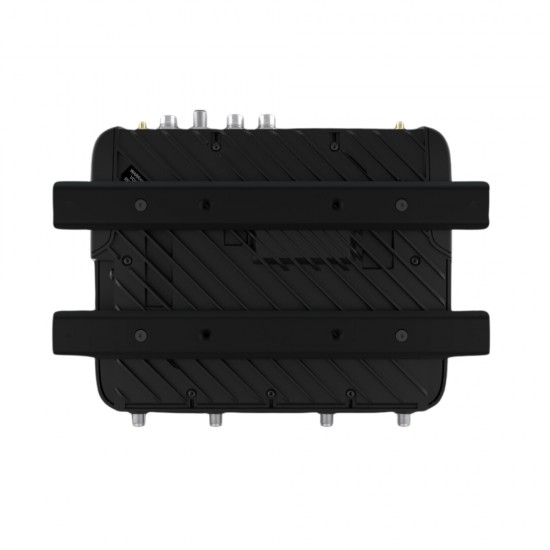

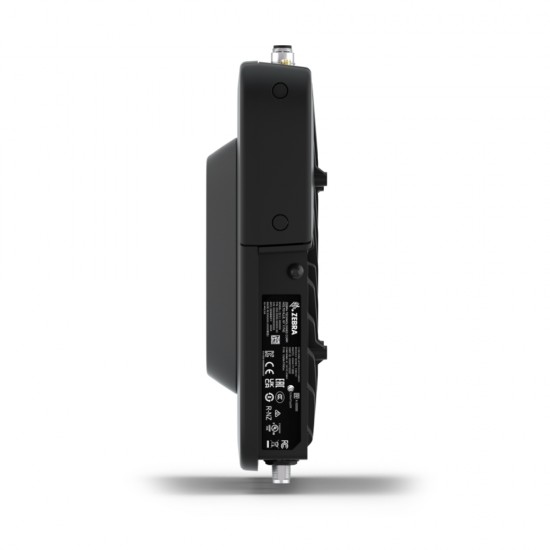

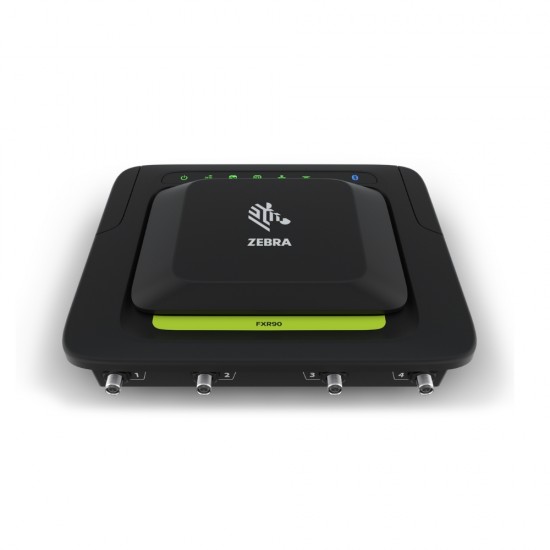

Zebra FXR90 Ultra-Rugged Fixed Reader

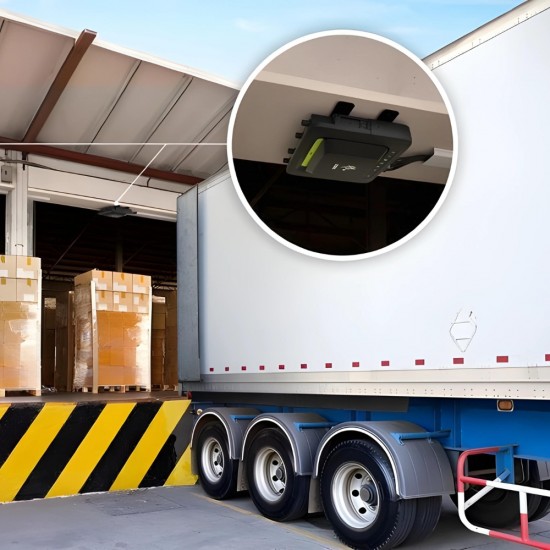

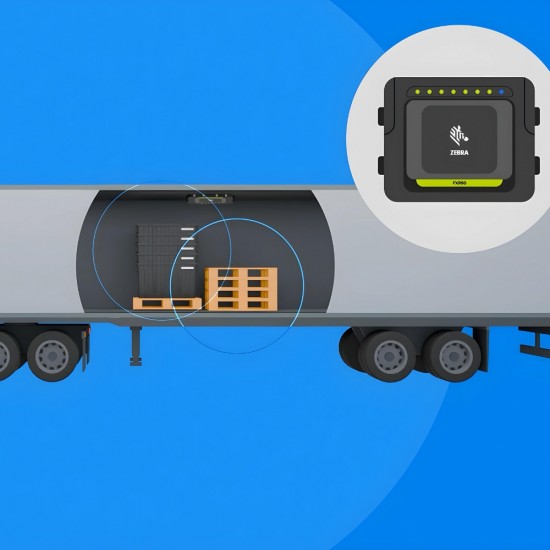

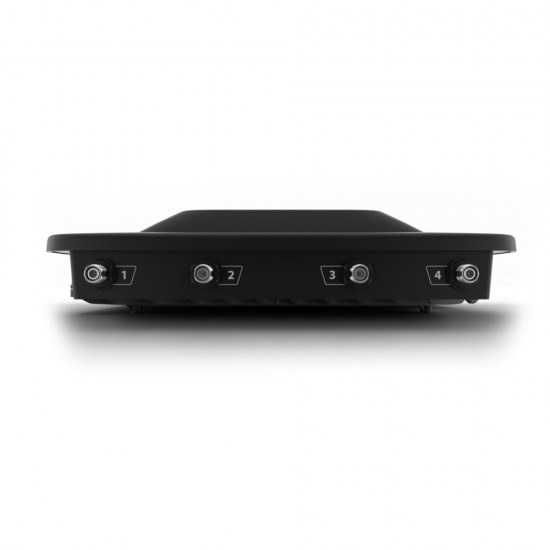

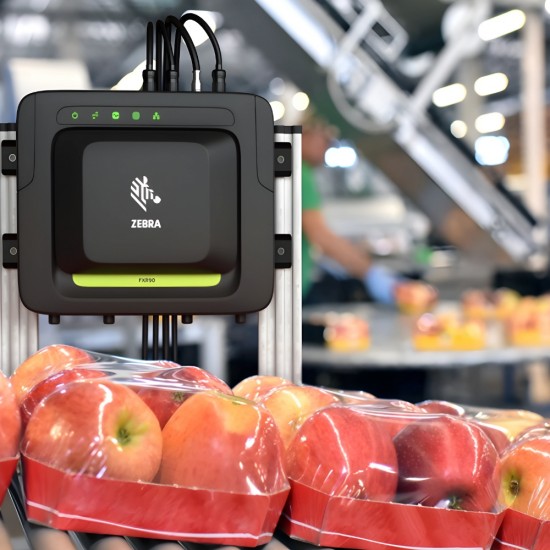

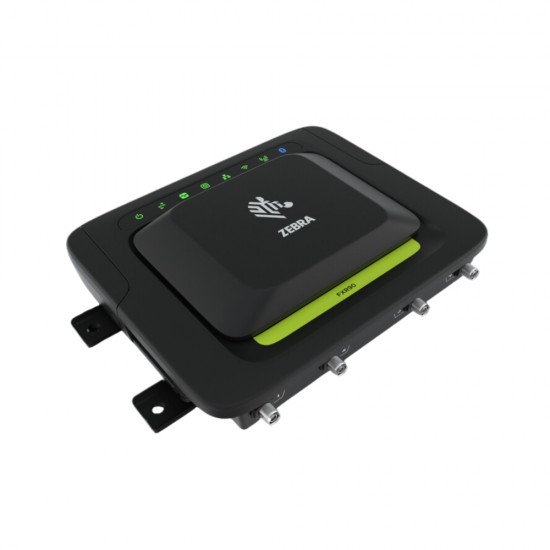

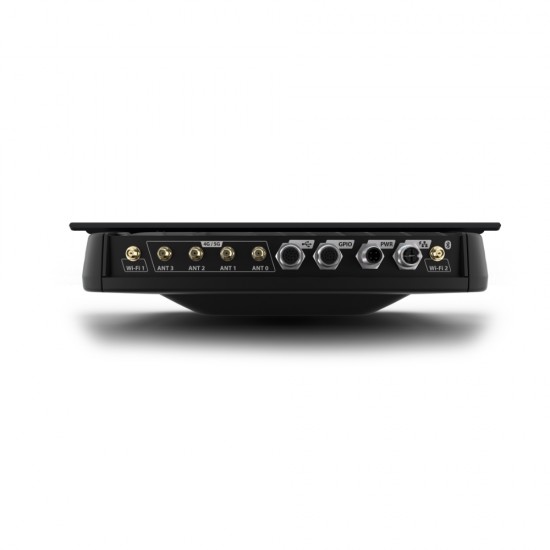

Zebra’s FXR90 Ultra-Rugged Fixed RFID Readers are built for extreme conditions—both indoors and outdoors—and sealed to industrial-grade dual IP65 and IP67 ratings for reliable performance anywhere. Their versatile design includes an integrated RFID antenna built in for streamlined deployment, even across the largest facilities. And with built-in wireless technologies, such as Wi-Fi 6, Bluetooth®, 5G, GPS and CBRS, the FXR90 provides unmatched connectivity, even outside the facility’s four walls, to meet the demands of today and the innovations of tomorrow. With a robust read rate of up to 1,300+ tags per second, FXR90 Readers enable greater visibility and real-time data wherever you need it most. And with rugged, sealed M12 connectors, as well as higher receiver sensitivity, you can expect reliable performance and increased accuracy in even the most challenging environments.


Specifications

Device
CPU of device NXP iMX8 Mini Quad Cortex-A53
Operating System Software Linux
Network Cryptography Transport Layer Security Ver 1.2, 1.3, FIPS 140-2
Memory of device 2GB LP DDR4 RAM/16GB eMMC Flash
Ports 2 USB host, USB client
Environment Operating Temperature -40°C to +65° C. Storage Temperature -40°C to +70°C. Humidity 5-95% non-condensing. Sealing IP65 and IP67.
Device dimension Without integrated RFID antenna (with flush mount brackets) 13.2 X 10.0 X 2.2 (in); 33.5 X 25.4 X 5.5
Additional device features Regulatory Compliance: Safety UL 62368-1, IEC 2368-1, EN 62368-1. RFI/EMI/EMC: FCC Part 15, RSS210, SS247, EN 302 208, EN, 300 328, EN 300 440, EN 301 893, EN 303 413, EN 301 489-1/13/25, ICES-003 Class A, EN 301 489-1/3/17/19/52. SAR/MPE: FCC 47CFR2: OET Bulletin 65, EN 50364, EN 50566. Other: RoHS, WEEE. General Certifications: TAA compliant. Altitude: MIL-STD-810
RFID RFID Engine Zebra Proprietary Radio Technology. Maximum RFID Read Range -Integrated Antenna at 100 (ft); 30.5 m (Note: This read distance is with specific tag and setup)
