FX9600 Fixed UHF RFID Reader

Name: FX9600 Fixed UHF RFID Reader
Brand: ZEBRA
Price: 1.00 EUR
Availability: InStock

FX9600 Fixed UHF RFID Reader

Downloads

File	Size	Download
fx9600-specification-sheet-en-us.pdf	165.56KB	Download

Description
Video

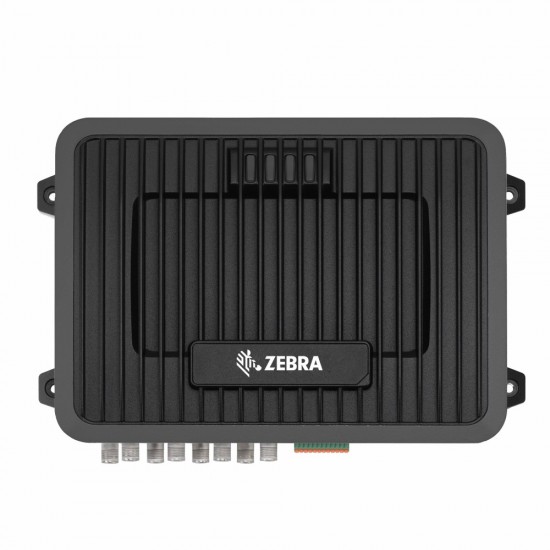

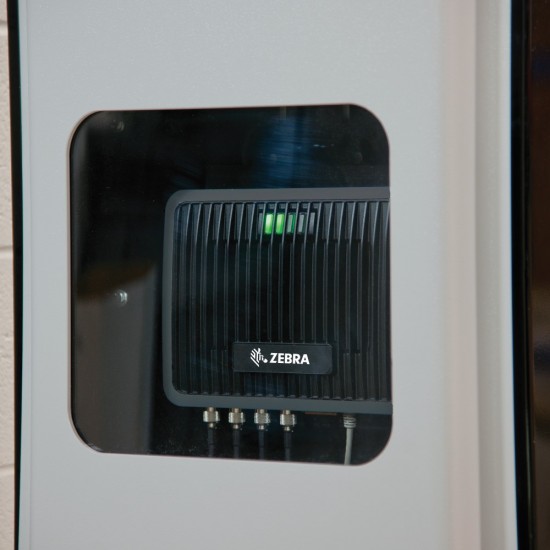

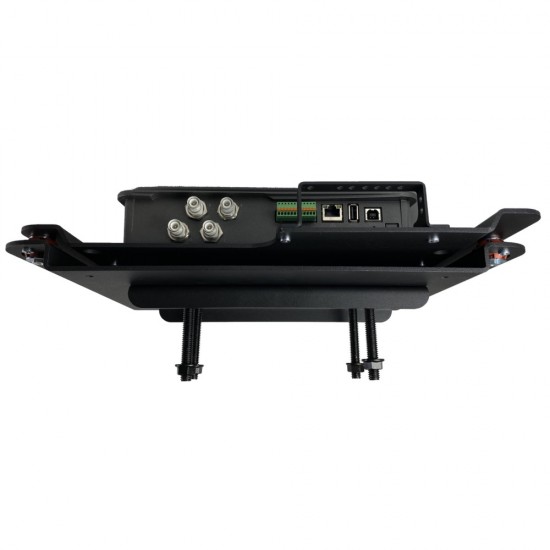

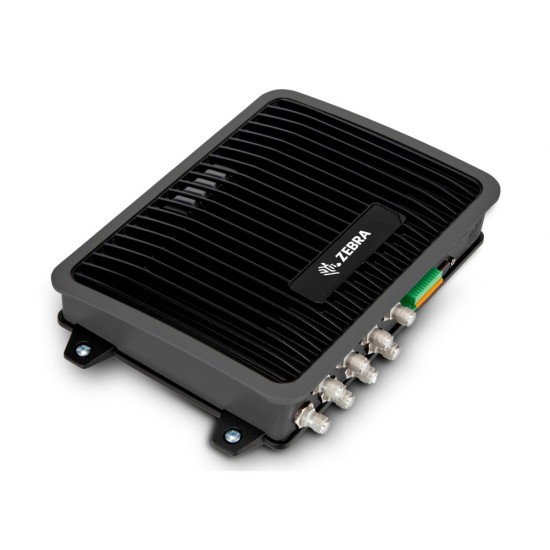

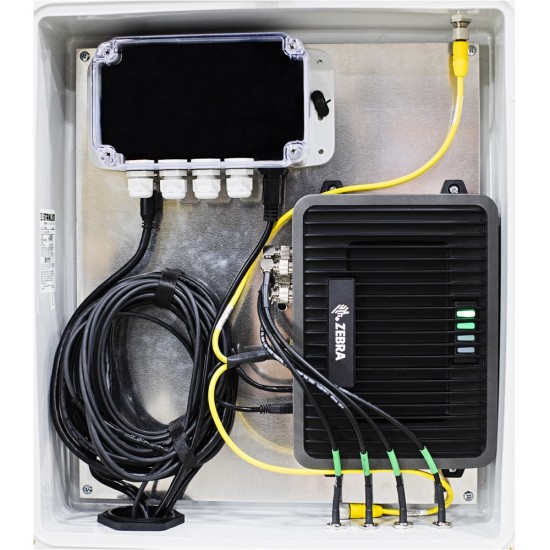

Zebra FX9600 Fixed UHF RFID Reader

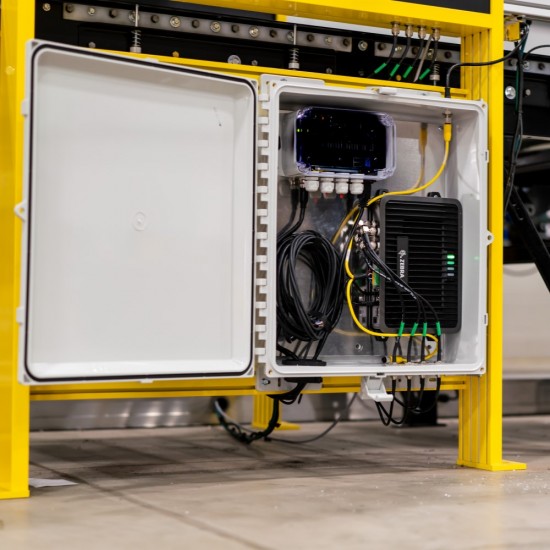

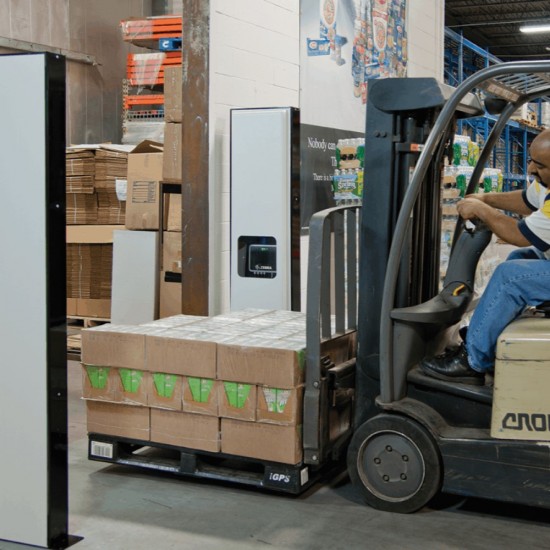

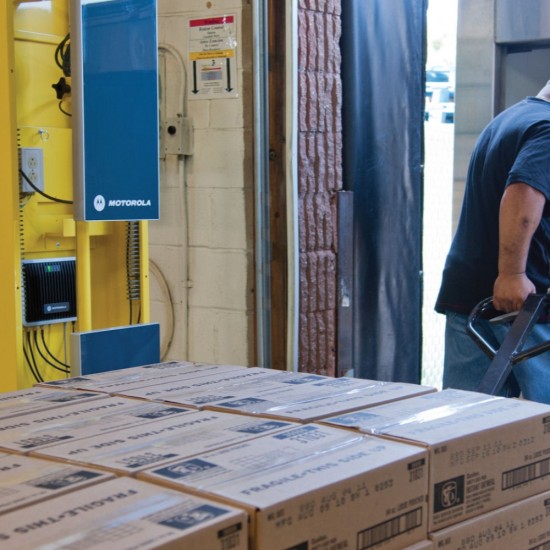

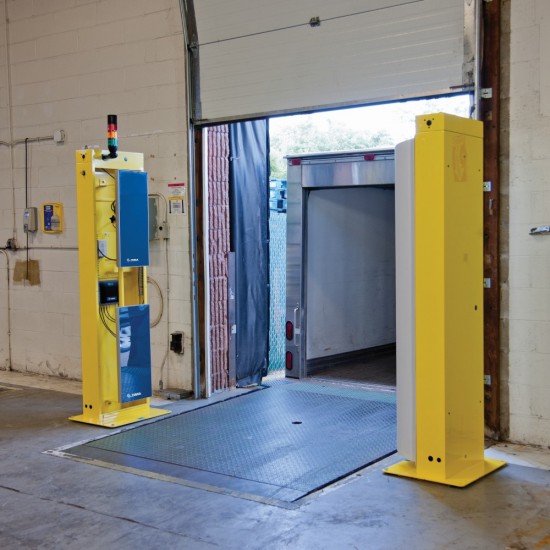

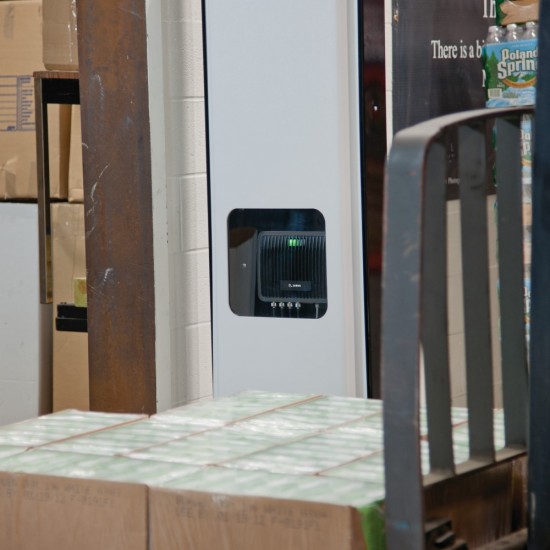

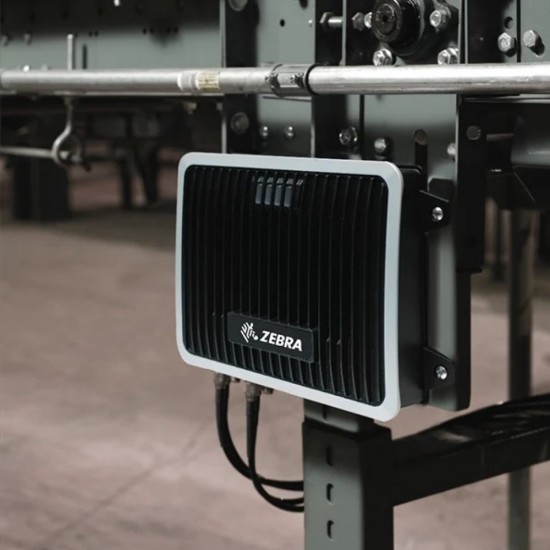

For maximum visibility and efficiency in the most rugged environments, an RFID reader can keep up with the high volume and wide variety of pallets, cases and tagged items that go in, out and through the warehouse and dock doors each day. The Zebra FX9600 Fixed UHF RFID Reader delivers the performance and features to handle it all. Supports Power over Ethernet, IP53 sealing and up to eight RF ports, the FX9600 brings a new level of cost efficiency to passive UHF asset tracking and inventory management, without compromising on performance. Industry-leading read rates, long read ranges and exceptional RF sensitivity ensures the automate inventory management - from receiving and putaway to picking and shipping - without errors and without bottlenecks. Brings increased efficiency and accuracy every time the inventory is touched, reduces labor costs and the delivery of the right product to the right customer, on time, every time.

ZEBRA

Specifications

Device
CPU of device	Texas Instruments AM3505 (600 MHz)
Operating System Software	Linux
Network	Management Protocols RM 1.0.1 (with XML over HTTP/HTTPS and SNMP binding), RDMP. Network Services DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP. Network Stack IPv4 and IPv6
Memory of device	Flash 512 MB; DRAM 256 MB
Ports	10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B); Serial (DB9). Configurations without a USB hub require an external USB hub for full USB functionality
Environment	Operating Temperature -20°C to +55° C. Storage Temperature -40°C to +70°C. Humidity 5-95% non-condensing. Sealing IP53.
Device dimension	27.3 x 18.4 x 5.0 cm/ Weight 2.13 kg Approx.
Additional device features	Regulatory Compliance: Safety UL 60950-01, UL 2043, IEC 60950-1, EN 60950-1. RF/EMI/EMC: FCC Part 15, RSS 210, EN 302 208, ICES-003 Class B, EN 301 489-1/3, SAR/MPE: FCC 47CFR2:OET Bulletin 65; EN 50364. ROHS, WEEE
RFID	Max Receive Sensitivity -86 dBm monostatic. Frequency (UHF Band) Global Reader: 902 MHz - 928 MHz (Also supports countries that use a part of this band), 865 MHZ - 868 MHz. Transmit Power Output 0dBm to +33.0dBm: PoE+, 24V External DC, Universal 24 VDC Power Supply; 0dBm to +31.5dBm: PoE, 12V External DC (4-port-models only), 24V External DC, Universal 24 VDC Power Supply. Air Protocols ISO 18000-63 (EPC Class 1 Gen 2 V2).
