DS55 Scanner 1D/2D

DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D
DS55 Scanner 1D/2D

Downloads

File Size Download
zebra-ds55-barcode-scanner-brochure.pdf 446.26KB Download
zebra-ds55-barcode-scanner-guide-accessory.pdf 510.13KB Download

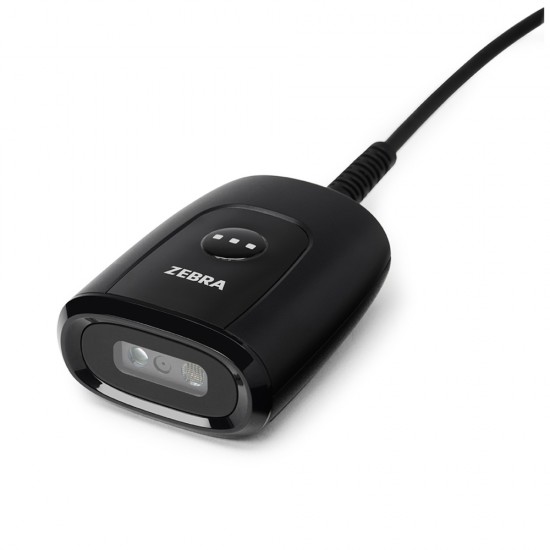

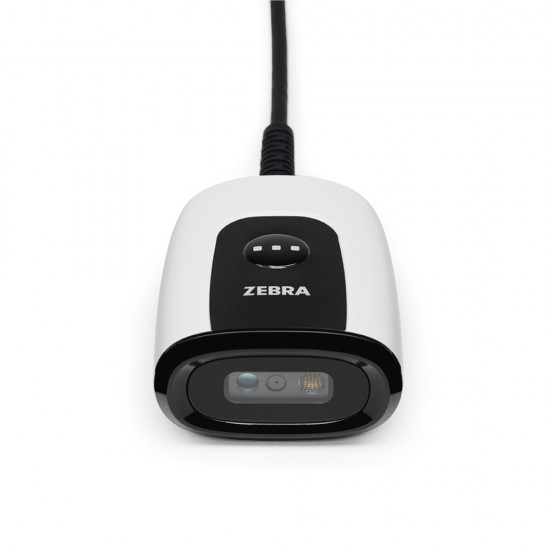

Zebra DS55 Scanner 1D/2D, USB, RS232, compact, fits anywhere

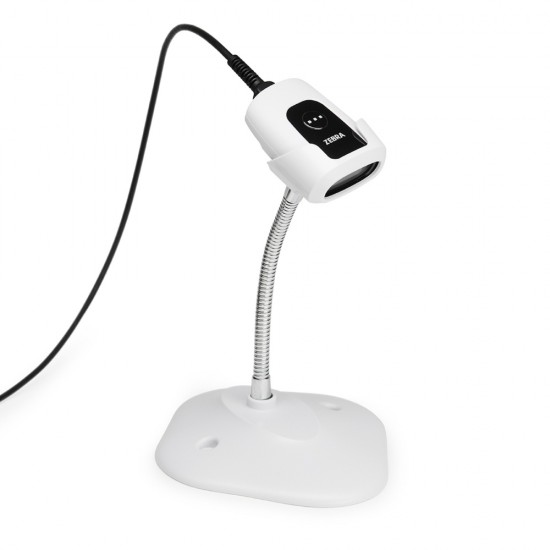

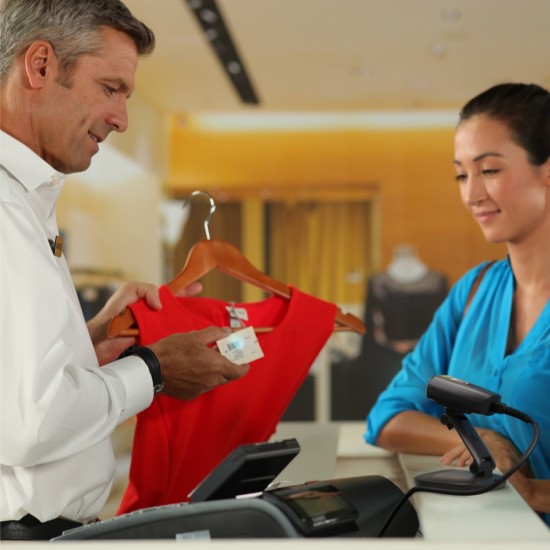

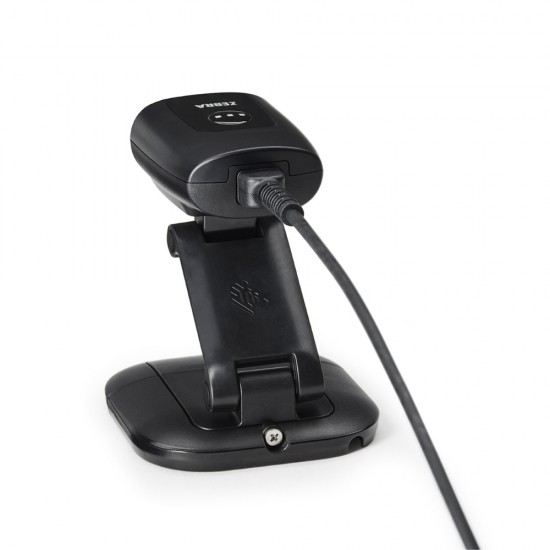

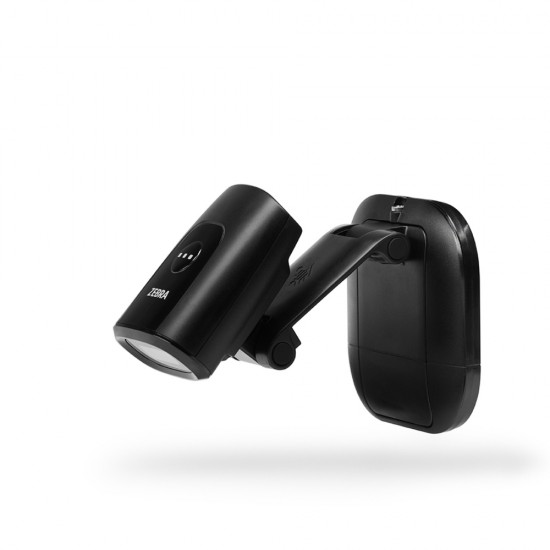

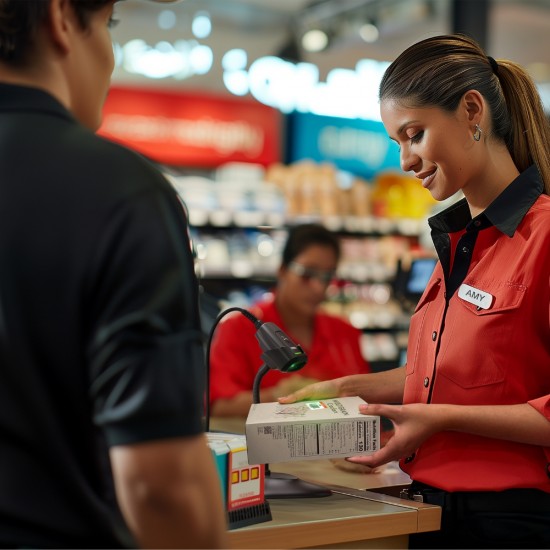

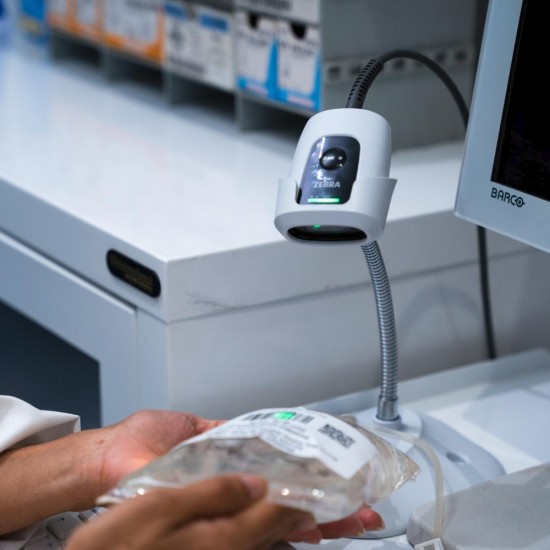

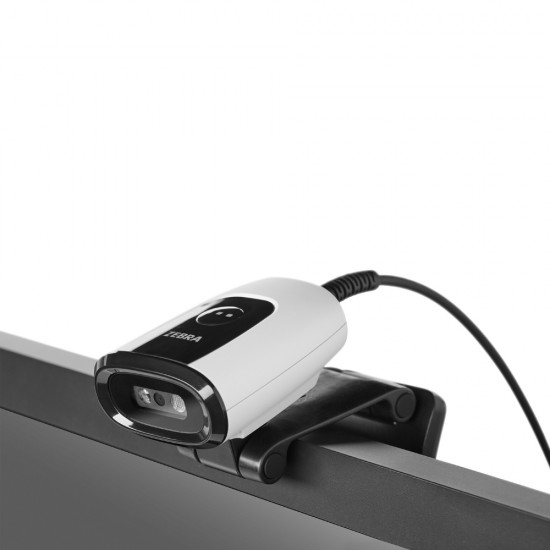

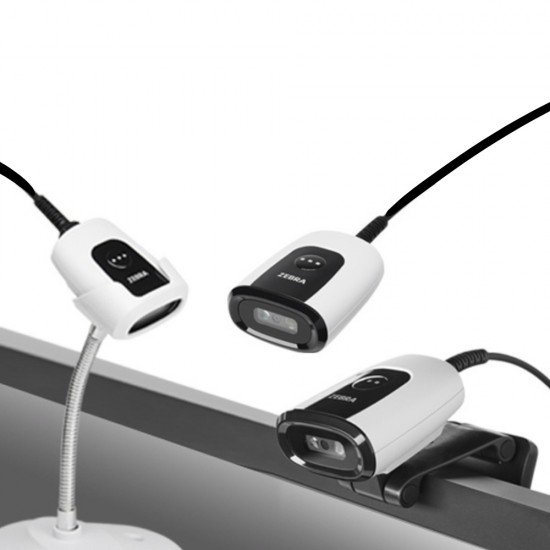

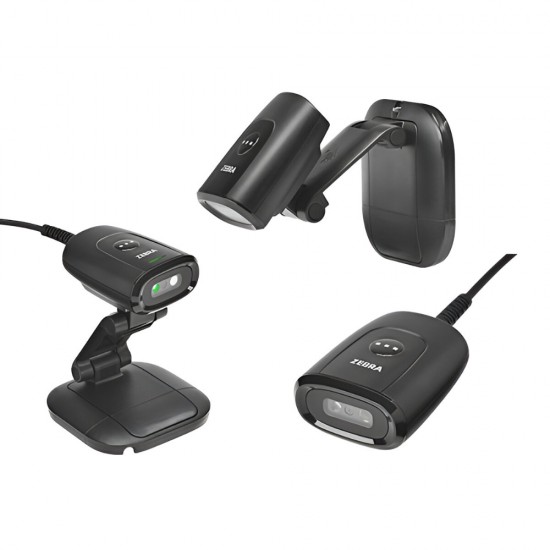

The compact DS55 Fixed Mount Scanner puts high-performance scanning at the retail counter, self-service and ticketing kiosks, contactless pickup lockers, boarding gates and more. A versatile design lends itself to both standalone and embedded applications. With a tiny footprint, the DS55 Series fits into the smallest of kiosks, while its modern and elegant design blends seamlessly in any décor. Flexible mounting options, including support for third-party accessories, enable the DS55 Series to meet a wide range of applications.

ZEBRA ZEBRA

Specifications

Scanners
Reading mode 1D/2D
Scanning range/ Βάθος πεδίου Code 39: 3 mil *Code 39: 4 *Code 39: 5 mil *Code 39 *Code 39: 20 mil *Code 128: 3 mil *Code 128: 5 mil *PDF 417: 6.7 mil *UPC: 13 mil (100%) *Data Matrix: 10mil *QR: 20 mil
Scanning range/ Width of Field Imager Field of View 48° H x 30° V nominal
Resolution Code 39: 3.0 mil; Code 128: 3.0 mil; Data Matrix: 5.0 mil; QR Code: 5.0 mil
Interfaces USB, RS232
Dimensions 30 cm x 5.6 cm x 7.2 cm
Weight 65.2 gr
Ambient light Warm White LED
Sealing IP54
Symbologies 1D:All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). 2D: All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm. OCR OCR-A, OCR-B, MICR, US Currency
Additional features Image Sensor 1280 x 800 pixels. Operating Temperature 0° to 50°C. Storage Temperature-40° to 70°C. Humidity 5% to 95% RH, non-condensing. Regulations: Environmental RoHS - EN IEC 63000:2018 Amendment 2015/863 WEEE RECAST 2012/19/EU China RoHS - SJ/T 11364 REACH - EC 1907/2006 Electrical Safety EN 62368-1:2014/AC:2015 EN 62368-1:2014/A11:2017 IEC 62368-1:2014 EN IEC 62368-1:2020+A11:2020 IEC 62368-1:2018 UL 62368-1, third edition CAN/CSA-C22.2 No. 62368-1-19 LED Safety EN 62471, IEC 62471 plus all amendments and all national deviations EMI/RFI FCC 47 CFR Part 15B, ICES-003, EN55032, EN55035, EN61000-6-2, EN60601-1-2, IEC60601-1-2, VCCI, and SABS
