WF43 Mobile Computer

Downloads

File	Size	Download
wf-43-wf_43_brochure.pdf	1.84MB	Download

Description

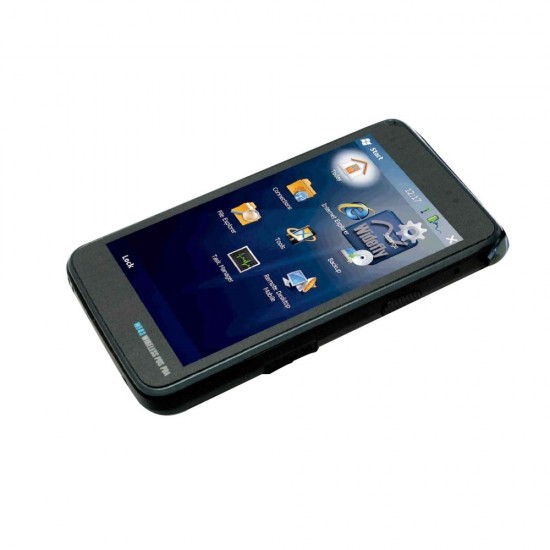

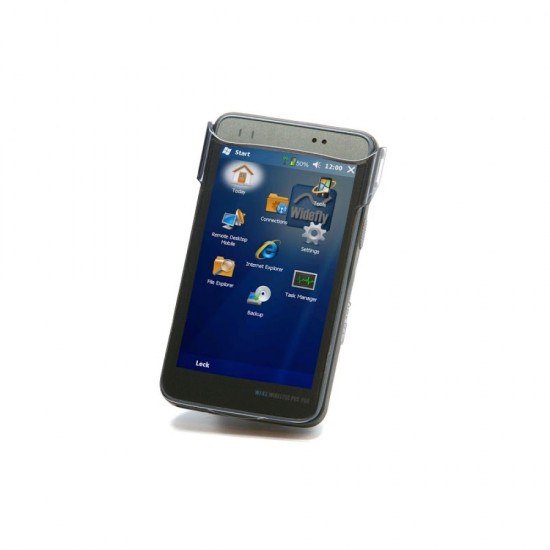

Mobile Computer ICS WF43

The new 4.3’’ LCD provides bigger and brighter screen with sunlight viewable resolution, it can accommodate applications written in QVGA 320x240 or VGA 600x480 without any GUI modification. It supports auto light adjustment with ambient light sensor. Rugged Windows Mobile, easy to repair by resellers, Wi-Fi Seamless Roaming, 802.11bg 2.4 Wi-Fi, Full screen / auto-logon RDP, Kiosk Mode (User/Admin Mode), Remote Support, Charging Cradle.

ICS

Specifications

Mobile Terminals
Monitor pda	4.3” 800x480 WVGA IPS LCD / sunlight viewable. Compatible with existing QVGA and VGA application. Ambient light sensor for auto LCD brightness.
Operation System	Windows Mobile 6.5
CPU pda	Intel PXA 624MHz
Memory pda	128MB RAM/ 256MB ROM (System ROM + backup disk + user disk)
Communication	Wi-Fi 802.11 bg 2.4GHz + high sensitivity antenna. Exceptional Wi-Fi always-on w/ sleep mode. Locked / Single SSID (persistent connection)/ Wi-Fi Roaming Fast & seamless roaming. Configurable roaming trigger level/ Bluetooth EDR v2.x. Support serial port (mobile printer).
Interface-Ports	Support COM port redirection for Bluetooth printer/ Audio speaker port/ Standard 3.5mm earphone jack/ Mini-USB for charging and data transfer via PC (ActiveSync)

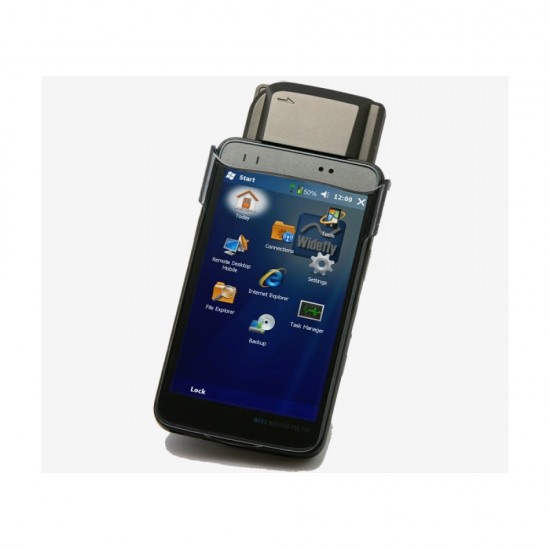

Barcode scanner	(Optional) Barcode scanner add-on module

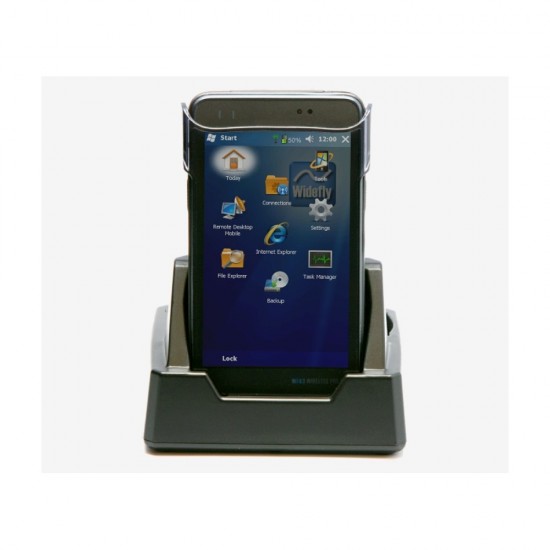

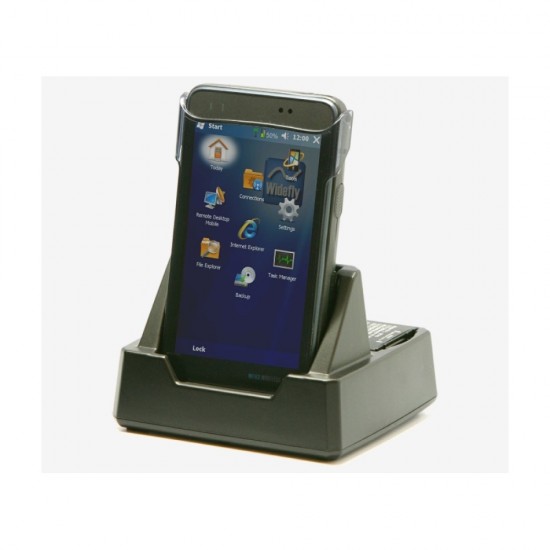

Battery pda	Rechargeable Li-ion 2670mAh battery. Battery lock prevents accidental reboot. (Optional) Charging cradle for PDA & extra battery.
Keyboard	Stylus. Power/Reset buttons. Left/right buttons (optional for barcode scanner).
Sealing	IP54
Resistance	1.5m drop tested to concrete floor
Dimensions/ Weight pda	125 x 75 x 19mm (HxWxD) / 197g

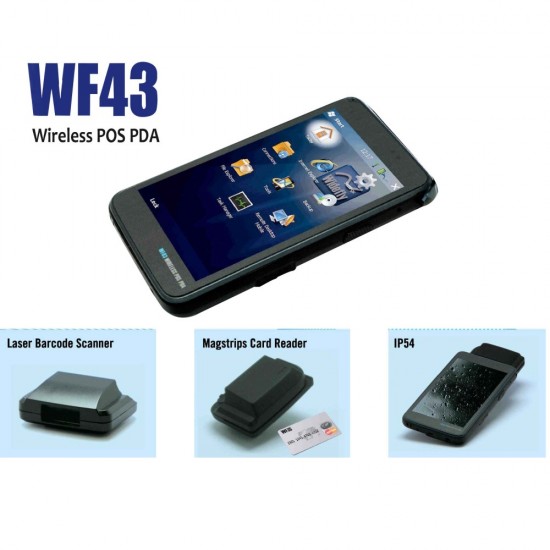

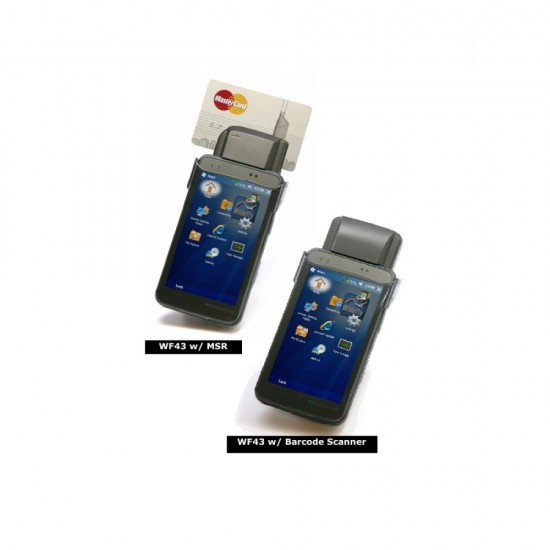

Accessories	Support detachable external device: barcode scanner, Magstripe card reader, RFID reader & etc Strong and reliable attachment at PDA’s top. (Optional) Magstripe card reader (MSR) add-on module. (Optional) Barcode scanner add-on module
Additional features mobile terminals	KIT: pda, charging cable, USB communication cable, stylus./Remote Desktop (RDP): RDP Unique XP-like remote desktop client/ Remote access / control tool/ FTP server for remote file upload/download/ Vibrator/ System & programmable LED/ SDK for third party development/ Control on LED, Vibrator, Wi-Fi, Bluetooth & etc
