VFD-220V II Customer Display

VFD-220V II Customer Display

Downloads

File	Size	Download
VFD220V (1).pdf	1.13MB	Download

Description

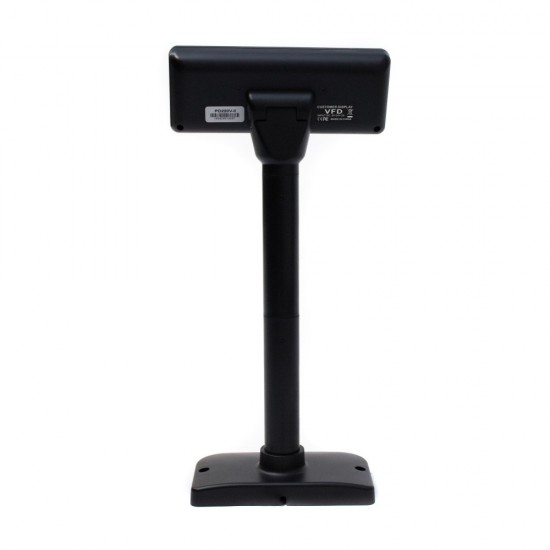

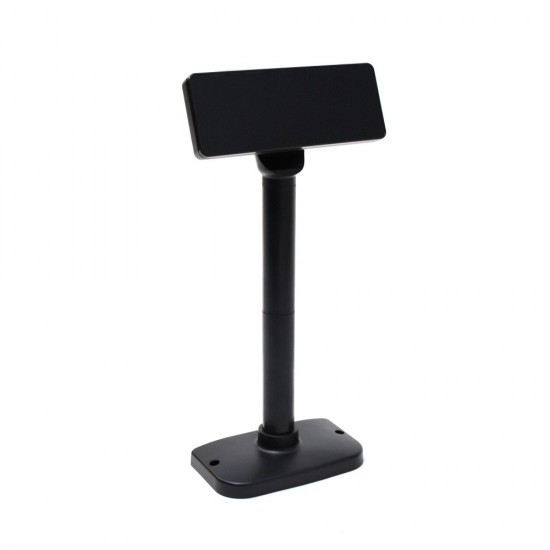

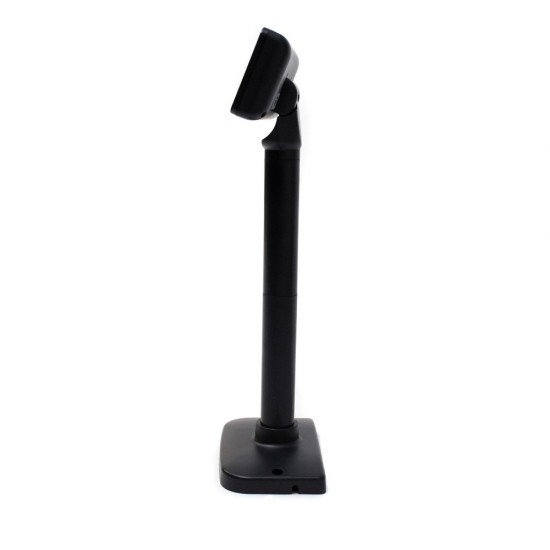

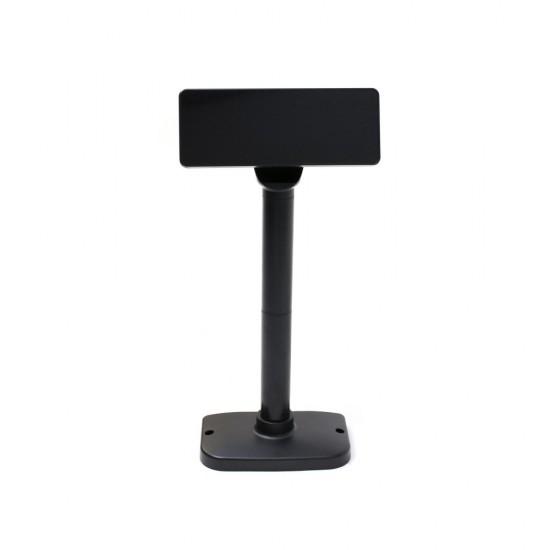

VFD-220V II Monitor/POS Customer Display

Font size 9.02mm x 5.25mm, two-line display capable of displaying up to 40 different alphabetic and numeric characters. Supports for 11 sets of commands (including EPSON). Power consumption from 5 to 24 W in order to prevent excessive consumption of electricity. Easy compatibility with a wide range of POS products. OPOS / JPOS Standard Driver.

ICS

Specifications

Monitors
Monitor specifications	Characters: 40 (20 characters x 2 lines). Character sets 1.95 alphanumeric/ 2.32 sets of international fonts, including Russian. Font size 5x7 dot alphanumeric matrix/ 9.02mm x 5.25mm. Point size 0.86mm x 1.05mm.
Monitor Technology	VFD
Brightness	500 - 1000 cd / m 2

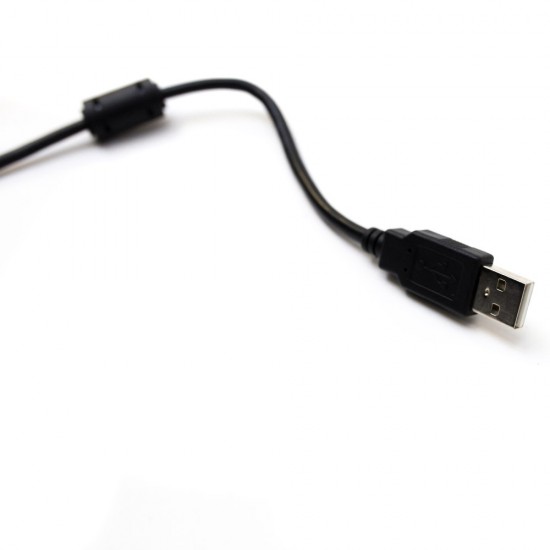

Interface	RS-232(serial) / USB 2.0
Vieweing Angle	Vertical: 90 degrees, horizontal: 355 degrees
Backlight MTBF	30,000 hour
Power monitor	Source of power 5 in. Power consumption 5-24 watts.
Dimensions /weight	Panel Dimension: 200 x 77.5 x 31mm/ Weight: 800 grams.
Additional features - Monitor	EMC standards. Safety standards FCC, CE. Baud rate 9 600/19 200 Baud. Command set: 1. LD 220/ 2. EPSON POS D101/ 3. AEDEX/ 4. UTC / S/ 5. UTC / P/ 6. ADM788/ 7. DSP800/ 8.CD5220/ 9. EMAX/ 10. LOGIC CONTROL.
