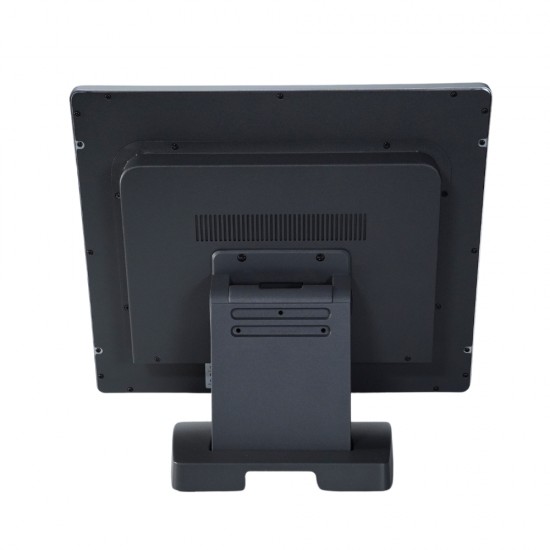

ZQ-T9170 i5-1035G1 Touch POS

Name: ZQ-T9170 i5-1035G1 Touch POS
Brand: ICS
Price: 1.00 EUR
Availability: InStock

ZQ-T9170 i5-1035G1 Touch POS

Downloads

File	Size	Download
ZQ-T9170 i5-1035G1.pdf	396.29KB	Download

Description

ZQ-T9170 i5 1035G1 10th Gen. fanless USB-RS232-Audio-VGA-HDMI

Advanced 17 "Touch POS solution for point of sale and customer service management. Durable construction, sleek design and upgraded features. With fanless technology, Intel® Core ™ i5 10210U fanless processor and excellent flat touch screen. Multiple USB connectivity capabilities as well as RS232, Audio, VGA, HDMI. Wall mount optional.

ICS

Specifications

Touch Systems
Monitor	17" LCD TFT Multi-point capacitive touch panel, 85 degress view angle adjustable.
CPU	Intel Core i5-1035G1 10th Gen 1.00GHz up to 1.19 GHz FANLESS
Memory	1 X SLOT 8GB DDR4 SO DIMM up to 16GB
Disk	1 X SLOT 256GB SSD M2
Operating System	Windows 10 IoT / Windows 10 pro
Resolution	1280 x 1024

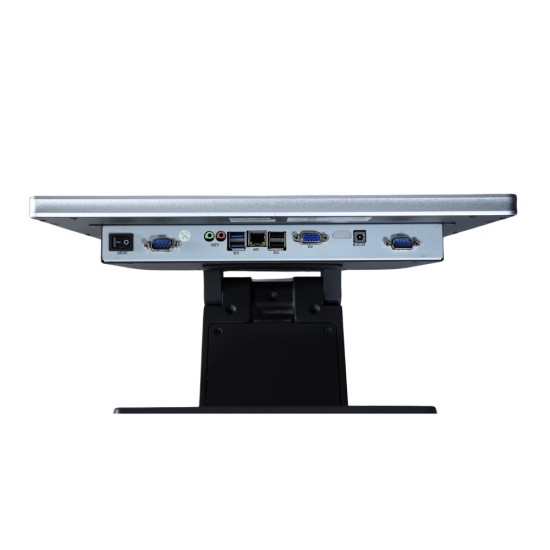

Ethernet Ports	1 X RJ45 (10/100/1000 Mbps)
USB Ports J1900	4 X USB (2 X 3.0 , 2 X 2.0)
Serial Ports J1900	2 X RS232
Additional Ports J1900	2 X 3.5 mm CTIA (1 x Line-out , 1 x Mic-In) , 1 x VGA

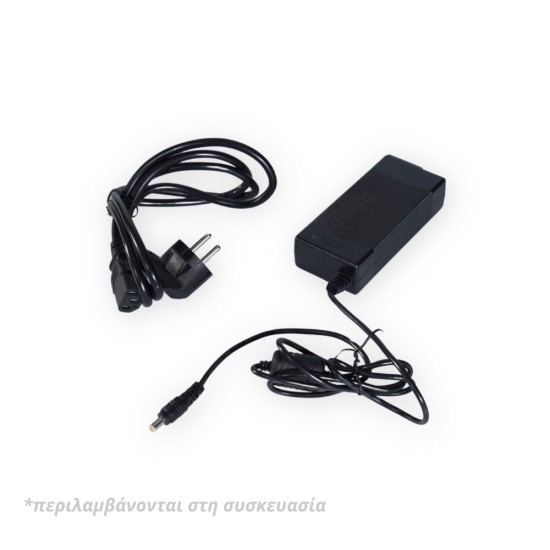

Power supply	100~240V, 50/60Hz – 12V / 7A 84W
Temperature/ Humidity	Operation temperature -10 to 60 ℃/ Storage temperature -20 ως 70°C. ≤65%RH
Dimensions/ Weight	390x200x360mm (WxDxH)/8.35kg
Additional features Touch Touch Systems	Network: RTL8168DE PCI-E Gigabit Ethernet NIC/ Video Card: Intel Graphics Media/ Sound Card: Accelerator 3150 (256MB/Intel) RTL ALC662 @INTEL 82801G (ICH7) High Definition Audio/
