ZQ-T8650 Touch POS i5 4300U

Downloads

File	Size	Download
ZQ-T8650-i5-4300u.pdf	372.54KB	Download

Description

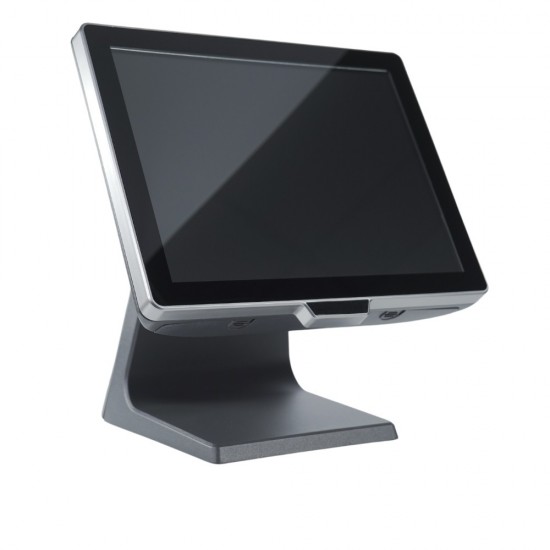

Touch POS ZQ-T8650 Intel 4300U Core i5 1.9GHz

15" PC-based Touch POS Terminal. Monitor housing made by aluminum, with Intel 4300U Core i5, 1.9GHz up to 2.5GHz FANLESS with different interfaces. Various options of peripherals and multi-point capacitive touch solution. The inside is very neat. Rotatable and inseparable cable cover. Easy to add customer display or secondary monitor. Peripheral connection cables could easily go through the base and be fixed well. Pluggable Dallas Lock / MSR modules without cable connection.

ICS

Specifications

Touch Systems
Monitor	15” TFT LCD, 1024 x 768 (max.) Capacitive touch panel 45 degree adjustable
CPU	Intel 4300U Core i5, 1.9GHz up to 2.5GHz FANLESS
Memory	DDR3L 1333/1600MHz, 8GB as standard, optional up to 16GB, 2 X SO-DIMM
Disk	64G128GB SSD 2,5 as standard, optional up to 256GB , supports 2 x mini sata slots
Operating System	Windows 8, Windows 10, Linux (not included)
Resolution	1024 x 768
USB Ports	5 x USB 2.0, 2 x USB 3.0
Serial Ports	2 x RS232
Ethernet Ports	1 x LAN

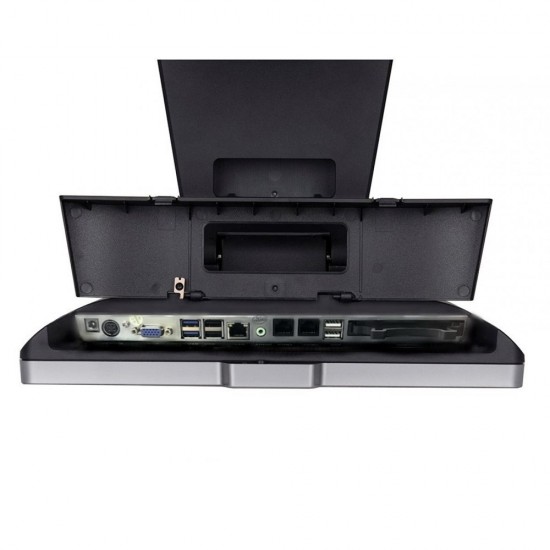

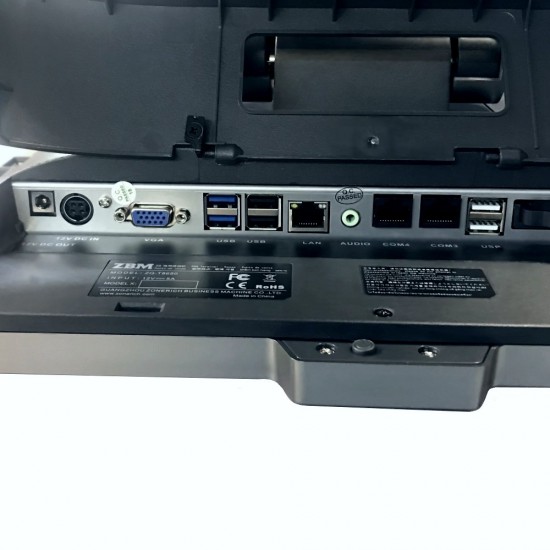

Additional Ports	1 x DC12V_OUT, 1 x VGΑ , 1 x Audio output jack
Power supply	100-240V / 3.5A 47~63Hz
Temperature/ Humidity	Operation Temperature 0 - 60°C - Humidity 0 - 95%
Dimensions/ Weight	330 x 350 x 200mm ( height x width x depth )
Additional features Touch Touch Systems	Audio: Realtek ALC 662HD (on board), LAN Realtek RTL8111H, 1000M (on board), Extended Slots: 1 x MINI-PCIE (for 4G/WIFI), 1 x SIM (on board), Customer Display: VFD or 9.7" secondary monitor (option)
