ZQ-RS20 i5-1035G1 Touch POS

Downloads

File	Size	Download
ZQ-RS20 i5-1035G1.pdf	363.89KB	Download

Description

ICS ZQ-RS20 21.5'' Capacitive i5 1035G1 10th Gen. USB- RS232 - LAN-Audio – VGA

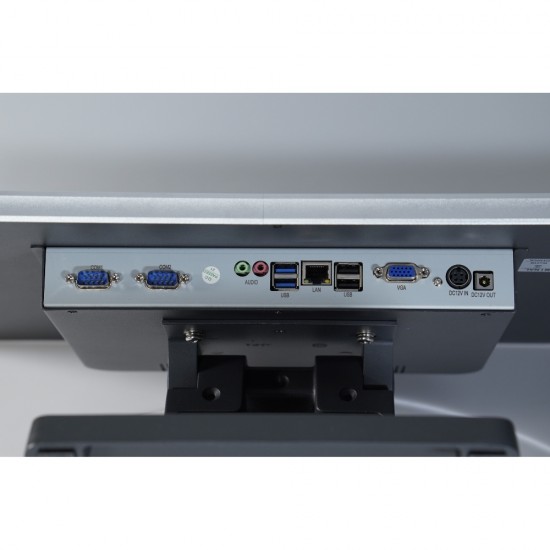

Integrated POS system with wide 21.5 '' touch screen to meet the expectations according to the sector's activity . Robbust construction, elegant design and upgraded features. With fanless technology, Intel® i5-1035G1 processor and excellent flat touch screen. Multiple connectivity capabilities USB, RS232, Audio, VGA, LAN, Audio, LVDS. Second display optional. Wall mount VESA 75x75 optional.

ICS

Specifications

Touch Systems
Monitor	21,5” TFT LCD , CAPACITIVE multi-point TOUCH
CPU	Intel Core i5-1035G1 10th Gen 1.00GHz up to 1.19 GHz FANLESS
Memory	1 X SLOT 8GB DDR4 SO DIMM up to 16GB
Disk	1 X SLOT 256GB SSD M2
Operating System	Windows 10 IoT / Windows 10 pro
Resolution	1920 x 1080
USB Ports	4 X USB (2 X 3.0 , 2 X 2.0)
Serial Ports	2 x RS232
Ethernet Ports	1 X RJ45 (10/100/1000 Mbps)
Additional Ports	2 X 3.5 mm CTIA (1 x Line-out , 1 x Mic-In) , 1 x VGA , power out 12v

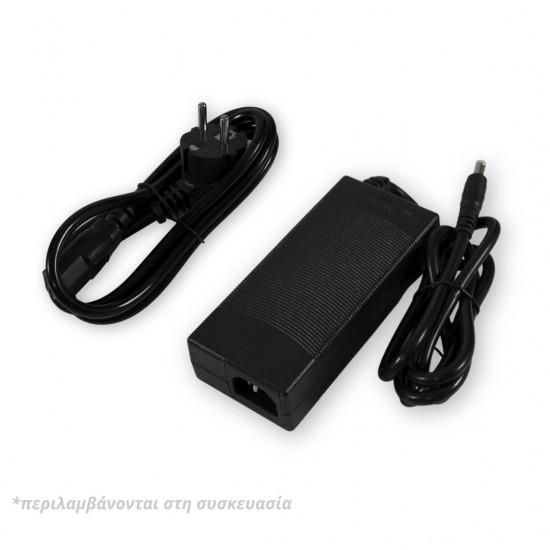

Power supply	100~240V, 50/60Hz – 12V / 7A 84W
Dimensions/ Weight	364x340x210mm/ 8.35kg
Additional features Touch Touch Systems	Second display ICS ZQ RS 20 LCD 9,7” . Customer display VFD ICS VFD for ZQ-RS20. Related components: RAM 6GB/DDR IV 2666MHZ SODIMM. RAM 8GB/DDR IV 2666MHZ SODIMM (K-9000 I3(7100)). Disk: 256GB MSATA M2 SSD. Optional: wall mount VESA 75x75.
