ICS TS-201 J6412 TOUCH POS

Downloads

File	Size	Download
TS-201-Intel-Celeron-J6412.pdf	923.64KB	Download

Description
Video

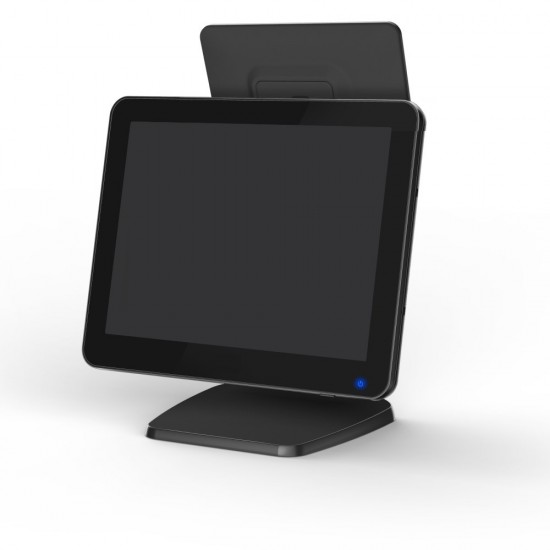

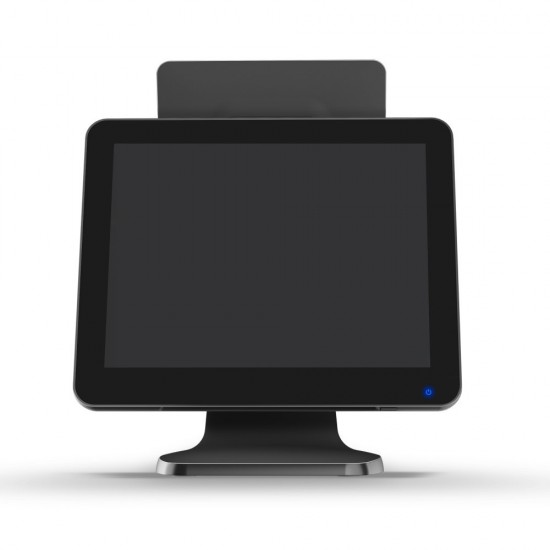

Touch POS ICS TS-201 CELERON J6412

Thin and sleek POS system with 15˝ TFT LCD 10 Point Capacitive touch screen, designed for enhanced performance, durability and usability. Fanless and silent operation. Powerful processor, built to be easily upgraded and repaired, the ICS TS-201 is the ideal choice for points of sale and customer service applications. Optionally supports second customer monitor 9,7 ”, vfd customer display, MSR magnetic card reader/iButton for Identification and wall mount.

ICS

Specifications

Touch Systems
Monitor	15.1″ TFT Ultra wide view angle. 10 Point Capacitive True-Flat PCAP Touch
CPU	Intel® Celeron® ProcessorJ6412 2.00 GHz / Fanless
Memory	DDR4 2666MHz, 4GB as standard, optional up to 32GB, 1 x SO-DIMM
Disk	SSD 2,5 ”128 GB /επιλογή: έως 512 GB
Operating System	Windows 10 iot / Windows 10 PRO / Linux
Resolution	1024x768
USB Ports	6x USB (4x USB 2.0, 2x USB 3.0)
Serial Ports	2 x RS232, 3 x RS232 RJ45
Ethernet Ports	Realtek RTL8111H, 1000M (on board)
Additional Ports	AUDIO: 1 x Audio output jack/ VIDEO OUT: VGA
Power supply	60W Adaptor. Input100~240V/50~60Hz, Output DC 12V/5A
Dimensions/ Weight	364x340x210mm
Additional features Touch Touch Systems	2nd Display : 9.7” TFT LCD (1024 x 768). Optional Touchscreen. VFD, 20 Columns x 2 Lines. CR Port for cash drawer. 3 Track-HID & Dallas key (i-Button) via USB Interface. SPEAKER/BUZZER
