ICS TS-201 i3-7020U TOUCH POS White

Downloads

File	Size	Download
ST-201_Intel Celeron I3 7020U-WHITE.pdf	866.45KB	Download

Description
Video

Touch POS ICS TS-201 i3-7100U White

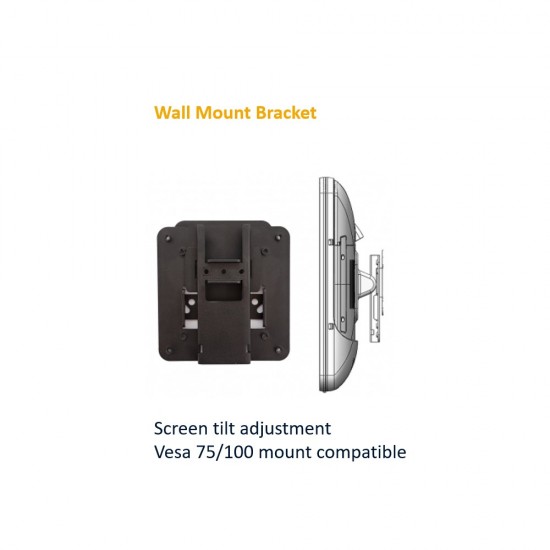

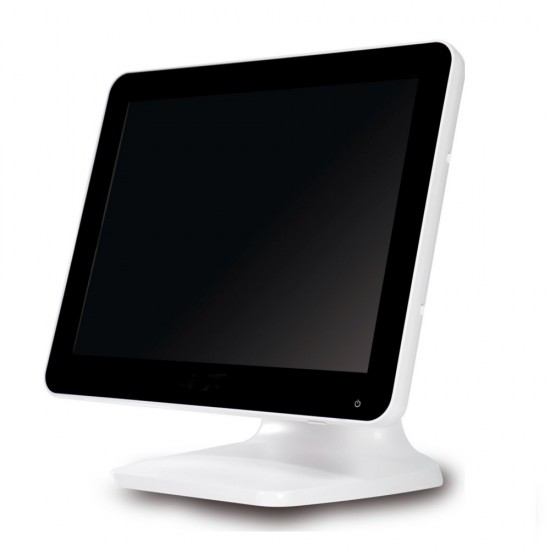

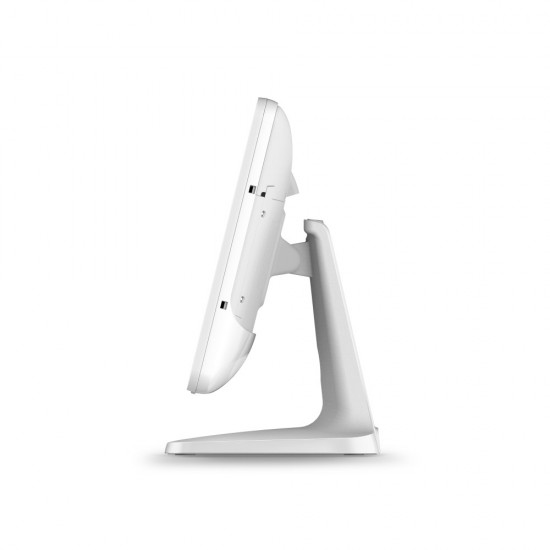

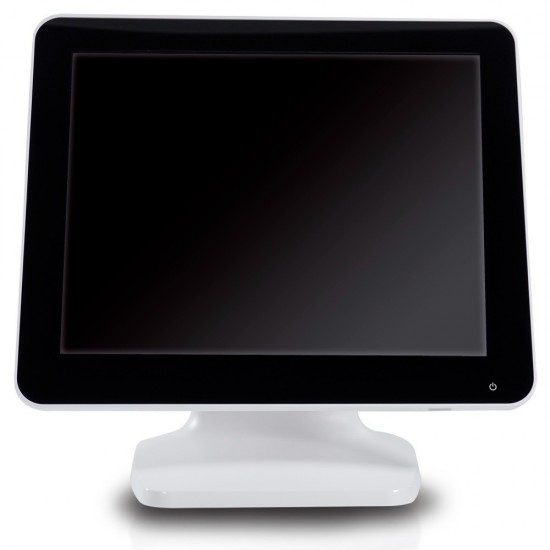

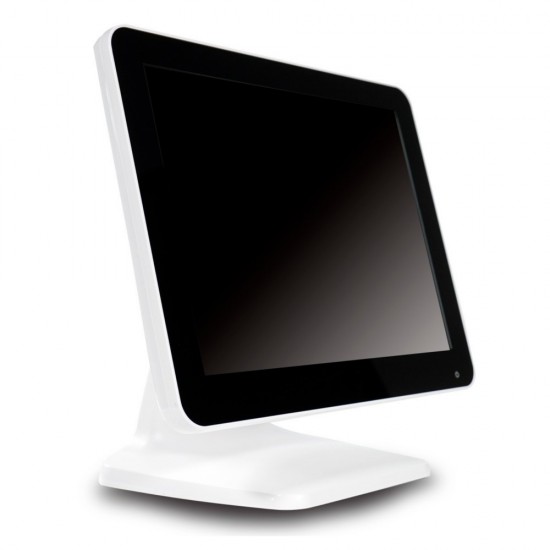

Integrated POS system with 15˝ TFT LCD 10 Point Capacitive touch screen with fanless and silent heat solution. Powerful processor, built to be easily upgraded and repaired, the ICS TS-201 is the ideal choice for points of sale and customer service applications. Optionally supports second customer monitor, vfd customer display, MSR magnetic card reader/iButton for Identification and wall mount.

Touch POS ICS TS-201 Intel® Core® Processor I3 - 7020U 2,3 GHz 4G/8GB RAM, 128G SSD, 15" PCAPTouch.

ICS

Specifications

Touch Systems
Monitor	15.1″ TFT Ultra wide view angle. 10 Point Capacitive True-Flat PCAP Touch
CPU	Intel® Core® Processor I3 - 7020U 2,3 GHz
Memory	4GB/8GB Standard, DDR4L, Socket 1 x SODIMM
Disk	2.5” SSD 128GB /option : up to 512GB
Operating System	Option POS Ready7 / Windows 10 IoT Entry / Linux
Resolution	1024x768

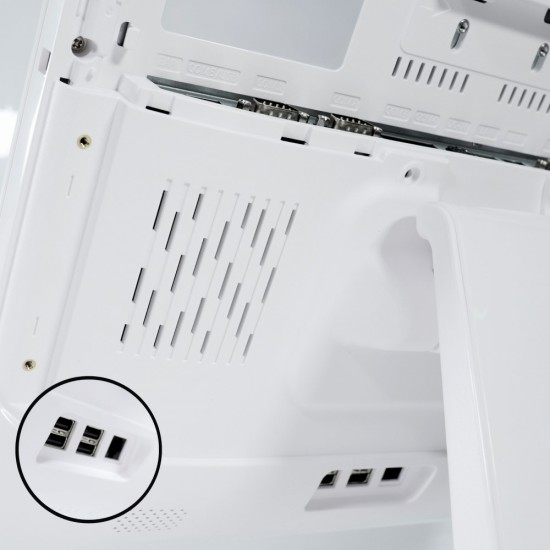

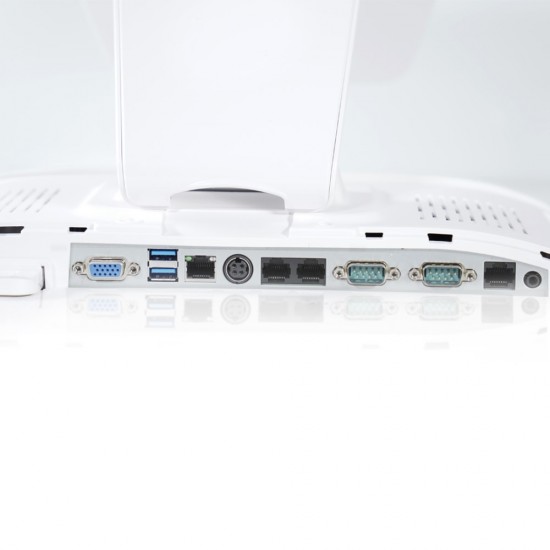

USB Ports	4 x USB 2.0, 2 x USB 3.0
Serial Ports	2 x RS232, 3 x RS232 RJ, 1x DRAWER PORT
Ethernet Ports	Realtek RTL8111H, 1000M (on board)
Additional Ports	AUDIO: 1 x Audio output jack/ VIDEO OUT: VGA
Power supply	60W Adaptor. Input100~240V/50~60Hz, Output DC 12V/5A
Dimensions/ Weight	364x340x210mm/ 6,610kg

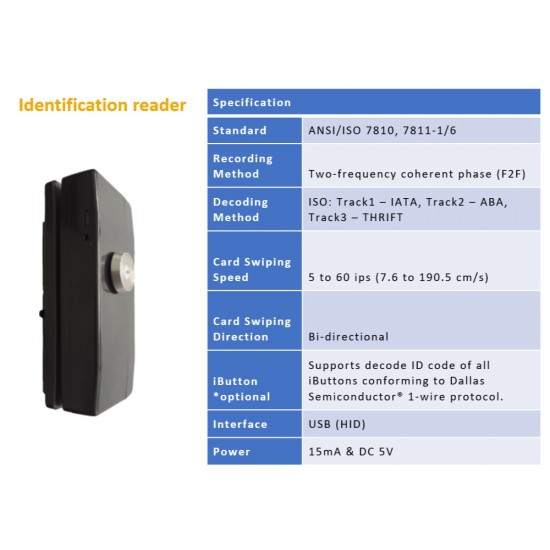

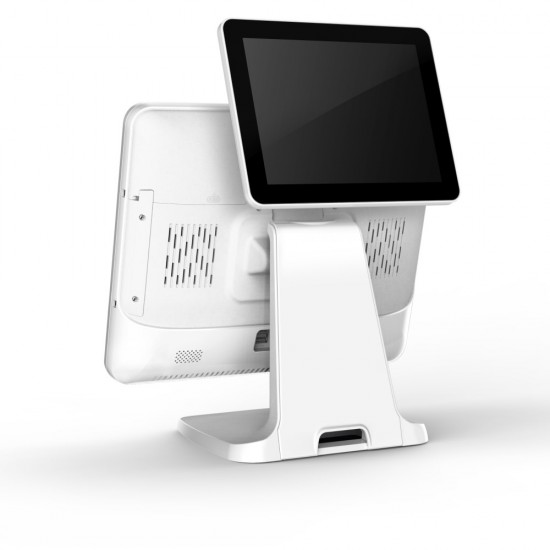

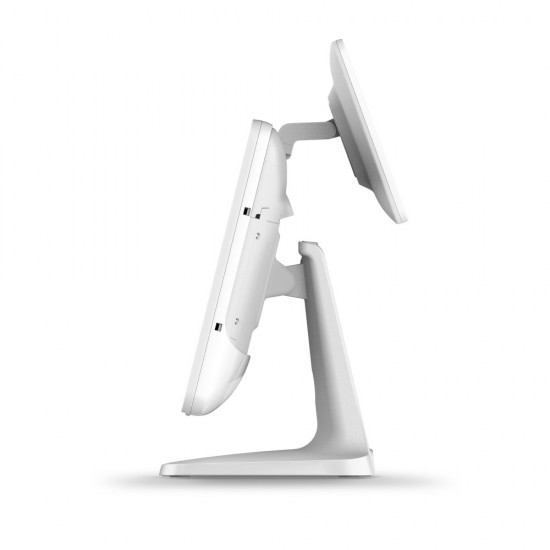

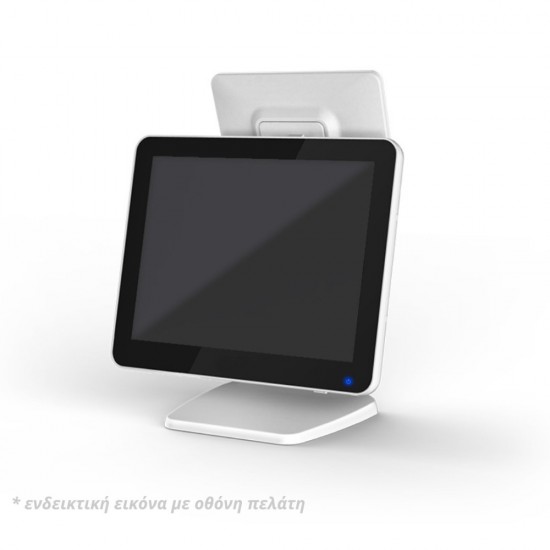

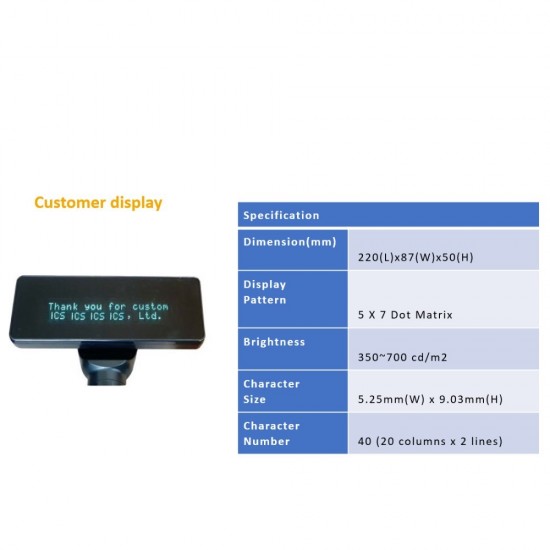

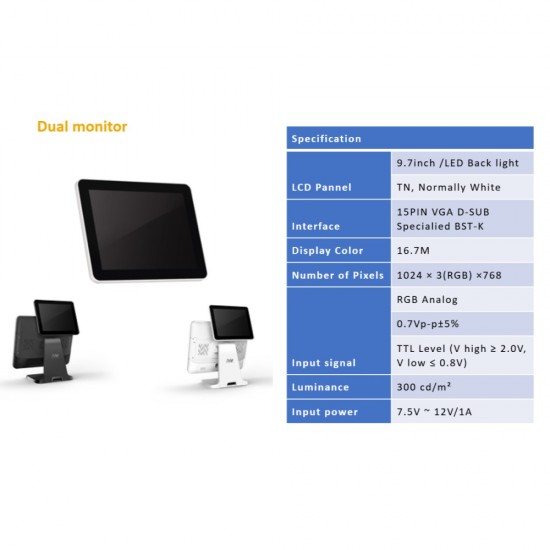

Additional features Touch Touch Systems	2nd Display : 9.7” TFT LCD (1024 x 768), RGB Interface, Optional Touchscreen. VFD, 20 Columns x 2 Lines. CR Port for cash drawer. 3 Track-HID & Dallas key (i-Button) via USB Interface.
