P2C-S250 i3 Touch POS White

Downloads

File	Size	Download
P2C_250 (1).pdf	981.83KB	Download

Description

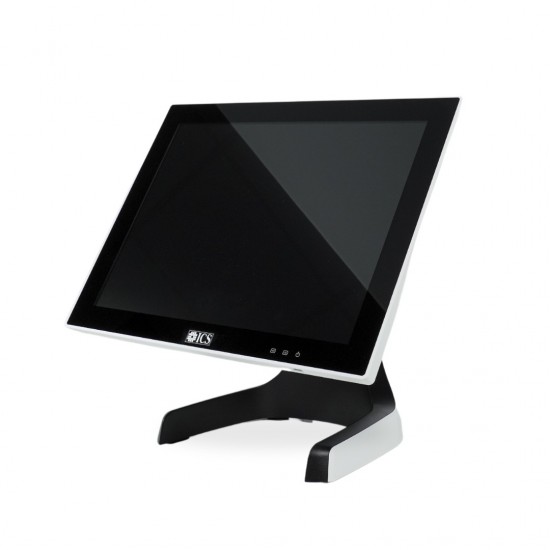

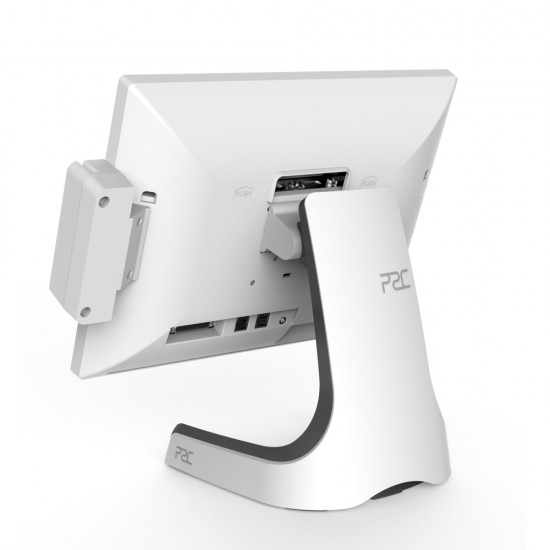

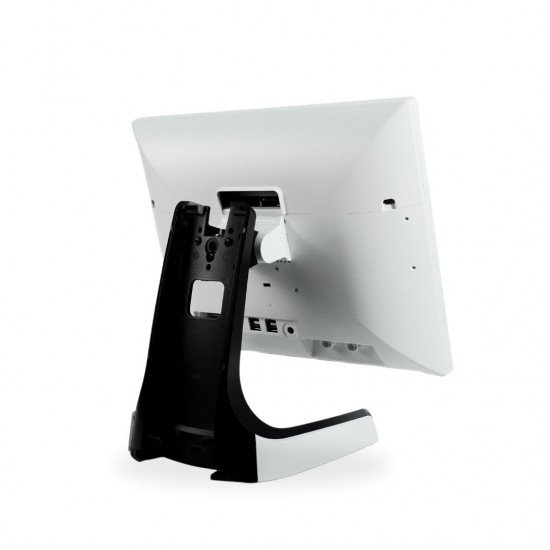

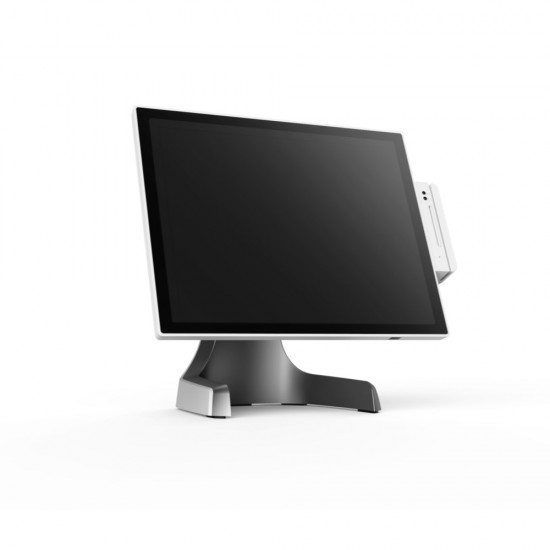

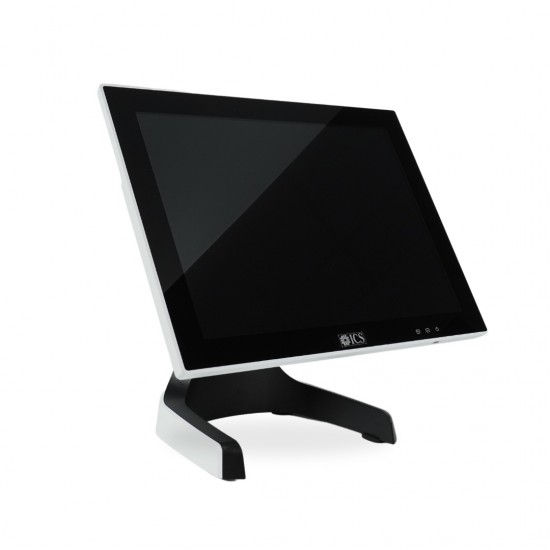

Touch POS P2C-S250 i3 7100U White

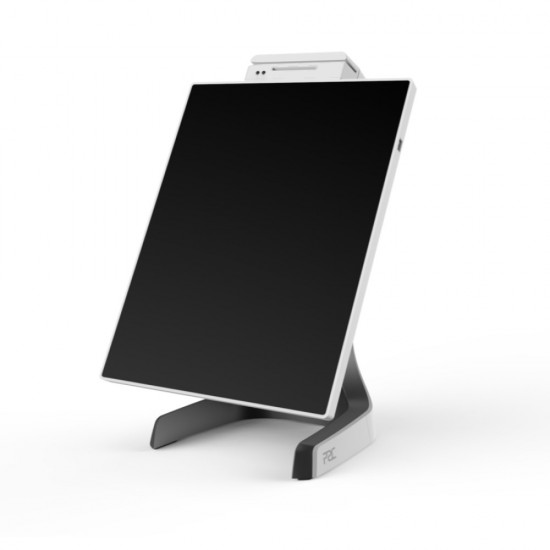

All in One POS System P2C 250 Series Kiosk and POS ia a true all in one solution with flexible multi-monitor support, various and wide I/O Interface to meet the expectations of diverse needs. All aluminum super heat dissipation frame design and Smart Desk Dock System with user convenience as the top priority. Easy cable arrangement, convenient maintenance with simple structure, stable performance and strong durability. Can be used as POS in horizontal position or Kiosk in vertical position with simple assembly. Multi-monitor supports HDMI, DVI, DisplayPort, VGA. All Serial Ports Powered (Powered Serial). Supports 2 kitchen printers. Supports various types of serial ports. Aluminum frame structure to optimize CPU heat dissipation 200K aluminum frame construction that covers the entire back. Fanless application even for high-end CPUs (i3/i5/i7). Excellent anti-static effect. Optimized CPU heat dissipation to ensure longevity of internal components. Available in black or white.

P2C

Specifications

Touch Systems
Monitor	15" WLED Backlight (Brightness: 350 cd/㎡, True-Flat Capacitive 10 Point Multi-touch
CPU	Intel® Core™ i3-7100U 2.40GHz FANLESS
Memory	4GB, DDR4 2666Hz x 2 slot (Max 32GB, optional)
Disk	SATA III SSD 128GB (HDD 500GB & SSD 256GB, optional)l)
Operating System	Windows 7,Windows 10, Linux
Resolution	1024 x 768

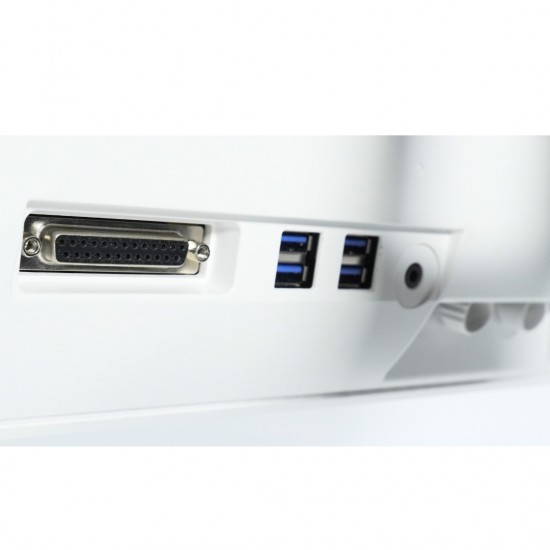

USB Ports	6 x USB 3.0

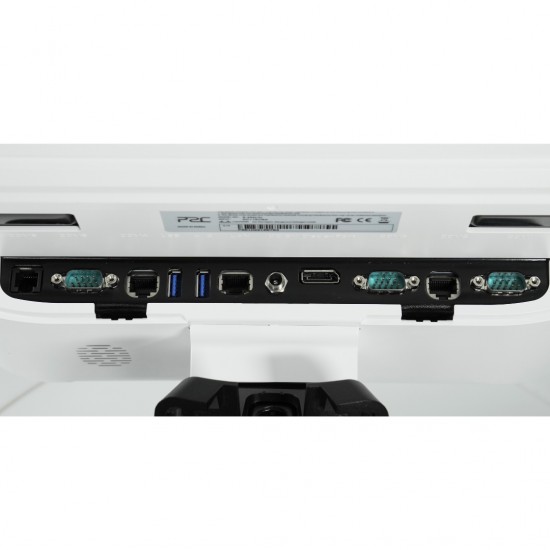

Serial Ports	6 X Serials (DB9 x 3, RJ50 x 2, RJ11 x 1) 1 x LPT
Ethernet Ports	Realtek RTL8111H, 1000M (on board)
Additional Ports	1 x Audio-out , 1x Display Port for Video, HDMI, VGA

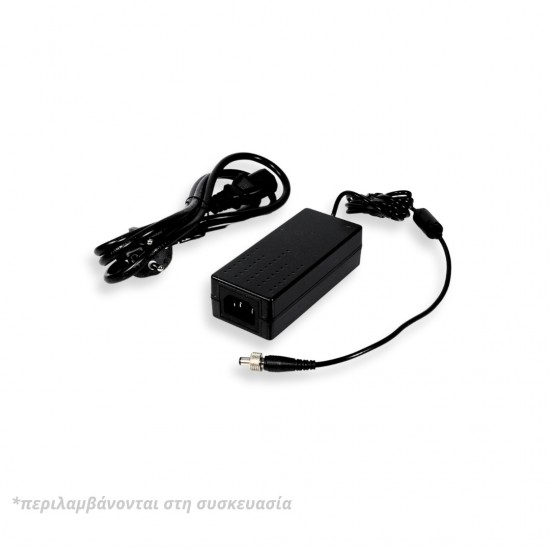

Power supply	DC 12V/5A (AC 100V~240V, 60W)
Temperature/ Humidity	Operating: 0 ~ 50℃ at 10% to 90% humidity
Dimensions/ Weight	362 x 237 x 357 mm/ 4.5Kg
Additional features Touch Touch Systems	2nd Display Type: LCD Type: 9.7" or 15" LCD (USB Port x 1)Touch Type: 9.7" or 15" LCD with Capacitive Touch (USB Port x 1).Standard DP, HDMI, DVI, VGA monitor by change monitor cable). Standard and Powered DP MST Hub. Customer Display VFD Type. Card Reader (MSR / SCR). Dallas Reader.
