P2C-S200 Touch POS White

Downloads

File	Size	Download
P2C 200 (4).pdf	936.13KB	Download

Description

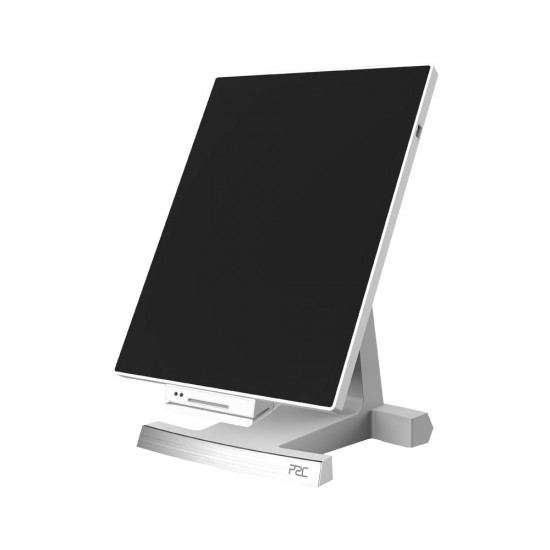

Touch POS P2C-S200 White

Luxurious POS system with stable performance and elegant design. Noise-free, low heat, fanless. Touch screen 15 "Backlight, Projected Capacitive Touch (PCAP). Hard disk 2.5" SATA III SSD 128GB (HDD 500GB & SSD 256GB. Memory 4GB or 8GB, DDR4 2133MHz x 2 slots (Max 32GB optional). Ports: USB 2 x USB 3.0, 4 x USB 2.0, 6 x Serials (DB9 x 3, RJ50 x 2, RJ11 x 1) 1 x LPT, Audio 1 x Audio-out, Video Out 1x Display Port, Ethernet Realtek RTL8111H, 1000M ( 12V 5A Power Supply. Peripherals: 2nd Display, Customer Display, Card Reader (MSR / SCR), Dallas Reader. Available in black or white and CPU:

P2C-S200P Intel® Core™ i3-7100U 4GB

P2C-S200 Intel® Core™ i5-7200U 8GB

P2C

Specifications

Touch Systems
Monitor	15" WLED Backlight (Brightness : 400 cd/㎡). Projected Capacitive Touch(PCAP): 10 Point Multi Touch.
CPU	Intel® Core™ i3-7100U 2.40GHz FANLESS Intel® Core™ i5-7200U 2.40GHz FANLESS
Memory	4GB/8GB, DDR4 2666Hz x 2 slot (Max 32GB, optional)
Disk	SATA III SSD 128GB (HDD 500GB & SSD 256GB, optional)l)
Operating System	Windows 7,Windows 10, Linux
Resolution	1024 x 768
USB Ports	6 x USB 3.0
Serial Ports	6 X Serials (DB9 x 3, RJ50 x 2, RJ11 x 1) 1 x LPT
Ethernet Ports	Realtek RTL8111H, 1000M (on board)
Additional Ports	1 x Audio-out , 1x Display Port for Video
Power supply	DC 12V/5A (AC 100V~240V, 60W)
Temperature/ Humidity	Operating: 0 ~ 50℃ at 10% to 90% humidity
Dimensions/ Weight	362 x 237 x 336 mm/ 5Kg
Additional features Touch Touch Systems	2nd Display Type: LCD Type: 10" or 15" LCD (USB Port x 1)Touch Type: 10" or 15" LCD with Capacitive Touch (USB Port x 1). Smart Card Reader: ISO/ IEC7816 EMV Level 1. Magnetic Stripe Reader: ISO 7811 ID-1 All tracks. Dallas Reader(i-button): 6 characters / prefix and suffix. Certifications: CE, CB, FCC, KC.
