Thor VM1 Mobile Computer

Thor VM1 Mobile Computer

Downloads

File	Size	Download
thor-vm1-vehicle-computer-data-sheet-en-a4.pdf	147.08KB	Download

Description
Video

Mobile Computer Honeywell Thor VM1

The mid-size Thor™ VM1 computer provides unprecedented flexibility for your supply chain operations. It combines a 20.32 cm (8 in) display with breakthrough innovations that deliver rapid value for your workflows. Smart Dock. Lets you mount and remove the VM1 in seconds, saving on support and maintenance costs while maximizing efficiency.Field-Replaceable Front Panel. Reduces maintenance cost by allowing you to service the most wear- and abuse-prone components yourself. Ignition Control. Eliminates the maintenance expense and lost productivity caused by a dead vehicle battery. Maximum Flexibility. Modular components, like an optional keyboard and screen defroster, give you multiple mounting possibilities. Versatile. Can be deployed in multiple application environments – from dry goods to cold storage, indoor or outdoor, in-premise or in intermodal facilities. Powerful. Features a fast 1.6 GHz Atom Z530 processor, support for Microsoft® Windows® CE 6.0 or WES 2009 operating systems, and WWAN, WLAN & Bluetooth® wireless connectivity. Cold Storage Capable. Optional touchscreen defroster extends application to cold storage environments. Rugged. Backed by a durable IP66-rated design, the Thor VM1 computer is engineered to withstand the shock, vibration and ruggedness demands only a forklift can create. Optional Screen Blanking. Restricts driver access to the screen when the vehicle is in motion to comply with the highest safety standards.

HONEYWELL

Specifications

Mobile Terminals
Monitor pda	8" (20cm) WVGA (800x480) LED backlit display, Standard 400 NIT indoor display, Optional 900 NIT outdoor display, Optional screen blanking/ Industrial touch panel with resistive touch and support for finger touch and stylus, Optional touchscreen defroster
Operation System	Microsoft® Windows® CE 6.0, Microsoft® Windows® Embedded Standard 2009 (WES 2009)
CPU pda	Intel® Atom Z530 1.6GHz/ Graphics Processor Intel® GMA 500
Memory pda	1GB for Microsoft® Windows® CE or 2GB for WES DDR2 SDRAM/ Mass Storage 1GB for Microsoft® Windows® CE; 4GB, 8GB for Microsoft® WES operating system
Communication	WWAN: Software definable Gobi 2000™ (data only) 3.75G radio with five-band UMTS/HSPA+ (800/ 850/ 900/1900 /2100MHz), quadband GSM/GPRS/EDGE (850/900/1800/1900MHz) and dual-band EV-DO/ CDMA (800/1900)/ WLAN: Windows® CE 6.0: 802.11 a/b/g, WES 2009: 802.11 a/b/g/n, Wi-Fi™ – certified, CCX certified for data/ WLAN Security: Authentication: Support for a full range of 802.1X (EAP) types, including EAP-TLS, PEAP-MSCHAPv2, PEAPGTC, LEAP, and EAP-FAST Encryption: Support for Static, pre-shared, and dynamic encryption keys, 40-bit and 128-bit keys, WEP, WPA (TKIP), and WPA2 (AES) Encryption Methods/ WLAN Antennas: Dual internal antennas standard, dual external remote antennas optional/ WPAN: Bluetooth® 2.0+EDR standard, internal antenna/ GPS: Integrated Assisted GPS (A-GPS) with fast position acquisition and low power consumption.

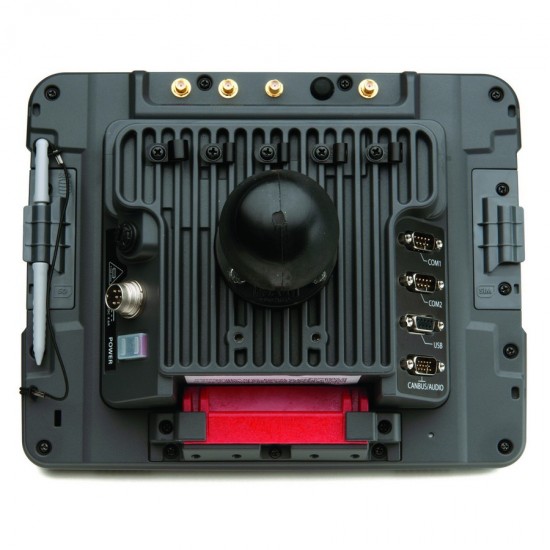

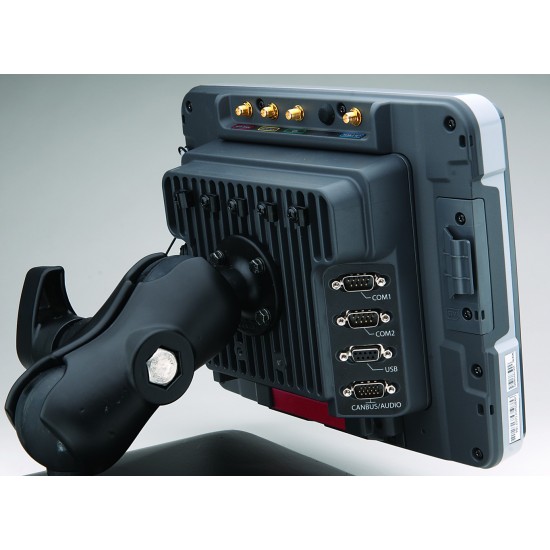

Interface-Ports	1x USB 2.0 host port, 1x USB 1.1 client port, 2x RS-232 COM ports, 1x CAN-bus port, 1x Headset port, DC power input & ignition control input, RF Antenna ports for WiFi (2), WWAN (1) & GPS (1)

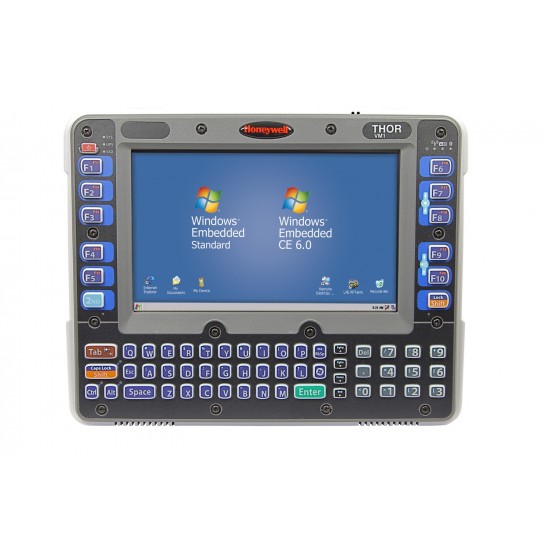

Keyboard	Full 64-key QWERTY keyboard w/number pad & 10 function keys, Optional 12-key minimized keyboard with 10 function keys, shift, 2nd & power keys, All keys except modifiers are mappable, All keys backlit, Optional 5250 & 3270 keyboard overlays.
Sealing	IP66
Resistance	Operating Temperature Defroster units: -22°to +122°F (-30° to +50°C); Standard units: -4°to +122°F (-20° to +50°C)/ Storage Temperature -22° to +140°F (-30° to +60°C)/ Humidity 5% to 95% non-condensing.
Dimensions/ Weight pda	Computer: 10.6˝ x 8.4˝ x 1.7 (268 x 214 x 43); Dock: 7.1˝ x 6.1˝ x 2.5˝ (180 x155 x 64mm)/ Weight Computer: 5.6lb (2.1kg); Dock: 3.2 lb (1.2 kg)
Software PDA	System Software: Microsoft® Windows® CE 6.0: DCWedge barcode wedge; WES: Freefloat inkOne wedge/ Optional Software: Microsoft® Windows® CE 6.0: RFTerm, Wavelink TE, Naurtech CETerm & Industrial Browser, and Stay-Linked Terminal Emulators Wavelink Avalanche & eXpressConfig network management; WES: Freefloat AccessOne terminal emulator.
Power supply mobile terminals	10 to 60 VDC isolated, Optional external converters for AC (90-240VAC) & extended range DC (60-150 VDC); Integrated Li-ION maintenance UPS with 30-min life at -20°C, charging range 0°C to +35°C
Additional features mobile terminals	Vibration MIL-STD-810F, composite wheeled vehicles/ Audio Audio for headset, Integrated stereo speakers w/ adjustable volume control, Integrated microphone/ SDK available for Windows® CE 6.0; Standard Windows® SDK for WES 2009.
