TB85 Wearable Computer

TB85 Wearable Computer

Downloads

File	Size	Download
TB85_Quick_Start_Guide.pdf	5.94MB	Download

Description

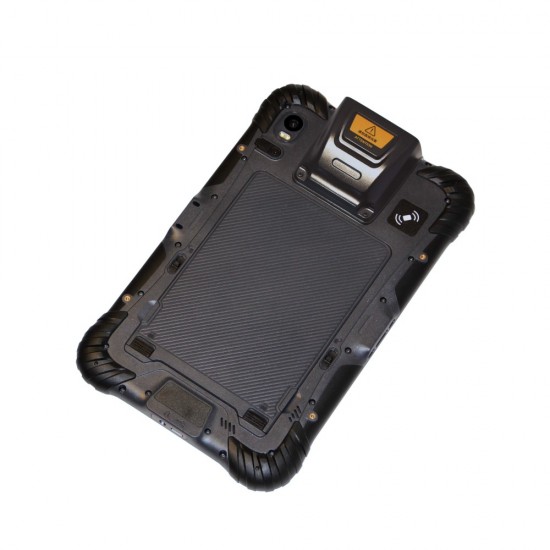

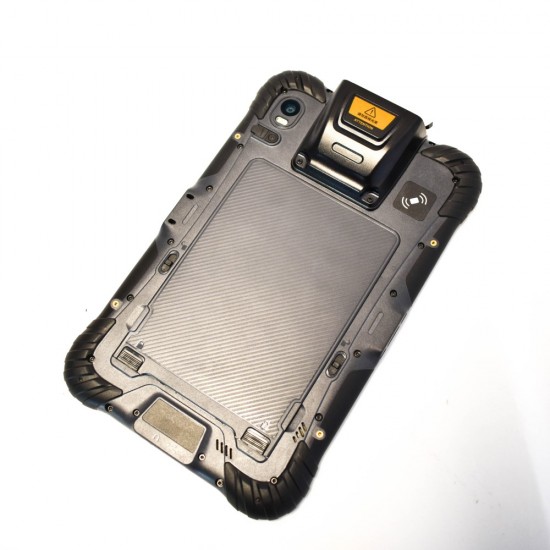

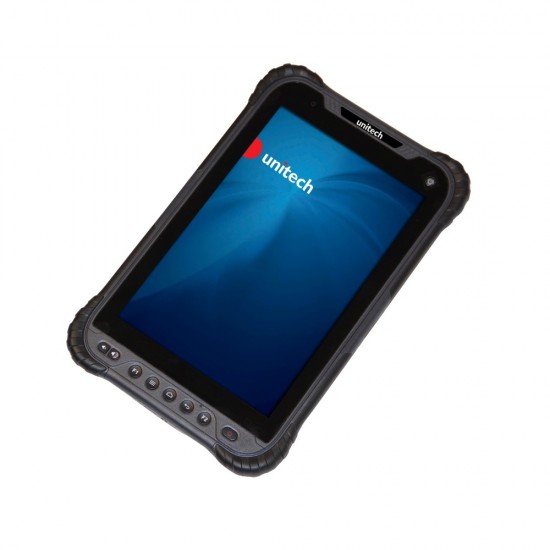

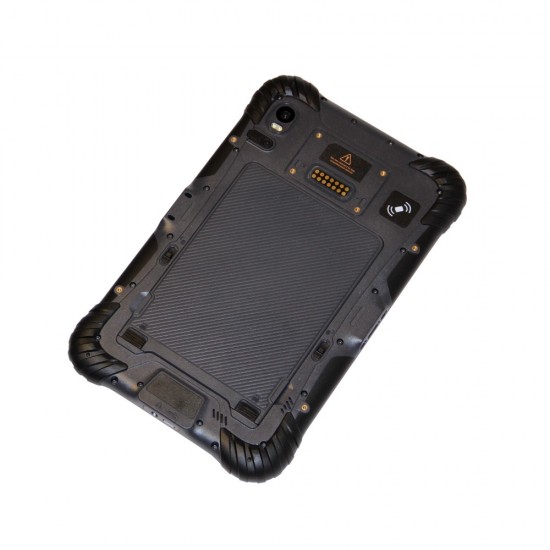

TB85 Wearable Computer

Scalable and Rugged Mobility and Android 8.0 GMS. Your business requires you to be flexible, tough, and extremely versatile and that's exactly how we engineered the Unitech TB85. With an attractive, slim case for easy portability, and fortified with a tough outer casing and environmental seal, this workhorse doesn't cut corners on durability or form factor.Android 8.0 GMS with Octa-core CPU, Google Enterprise Device certified, POGO Pin extension with QC3.0 (quick-charging), 14-pin POGO extension for modules, 8200 mAh changeable Li-ION battery, 32 GB eMMC + 4 GB DDR3 memory, 4G/LTE, WLAN 80211 a/b/g/n/ac and NFC, 8” display with Gorilla Glass 3 and GFF touch panel, IP67 rated with 4-foot drop spec.

UNITECH

Specifications

Tablet POS
Monitor	8" colour LCD display, 1280 x 800 resolution. Touch Panel with support for glove operation. Gorilla Glass 3.
CPU	Qualcomm MSM8953 PRO Octa-core 2.2 Ghz
Memory	32GB eMMC, 4GB DDR3
Operating System	Android 8.0 GMS Certified Google Enterprise Device Certified
Resolution	1280 x 800
Interface	RFID (NFC): Frequency 13.56 Mhz (0 ~ 3 cm)/ WLAN: 802.11 a/b/g/n/ac/ WWAN GSM: 850 / 900 / 1800 / 1900, TD-SCDMA: B34, 39, WCDMA: B1, 2, 5, 8, CDMA/EVDO: BC0, LTE-TDD: B38, 39, 40, 41 LTE-FDD: B1, 2, 3, 4, 5, 7, 8, 12 ,13, 17, 20, 25, 28/ CA:UL Intra-C: Band 39, 40, 41, DL Intra-C: Band 3, 39, 40, 41, DL Inter: Band 1+3, Band 39+41
Additional Ports	Voice and Audio: High Sound Quality Audio PA 3.5mm headphone jack/ Expansion Slot: 1x Micro SD, 1x Nano SIM.
Power supply	Rechargeable and changeable 8200 mAh Li-ION battery, RTC Battery: Real Time Clock Battery, Charging Time: Less than 4 hours, Battery approvals: UN 38.3, MSDS, IEC 62133, UL.
Temperature/ Humidity	Operating Temperature: -20˚C to 60 ˚C/ Storage Temperature: -40˚C to 70 ˚C/ Relative Humidity 5% ~ 95% (non-condensing)
Dimensions /weight	241.92 x 152 x 17.76 mm/ 630 grams (including battery)
Additional features Tablet	EDS contact discharge 6KV, air discharge 8KV Drop Specification: 1.2m to marble/ Ingress Protection: IP67/ Keypad: 8 Function Keys: Power key, volume +/-, return key, home key, menu key and 2 customisable keys. Keypad light supported/ Software: Airwatch, SOTI, MoboLink, 12 Solutions
Scanner	2D scan module (with trigger buttons)/ Scan engine: SE2707/ Light Source: Red +/-625nm LED/ Weight: <50g/ IP67 (connected with main unit)/ Mechanical Shock: 1.0m (connected with main unit)/ Operating Temperature: -10°C to 50°C/ Storage Temperature: -20°C to 60°C/ DOF: EAN-13: 13mil(70~340mm), PDF 417: 6.67mil(45~105mm), Code 39: 5mil (40~155mm), Data Matrix: 0 mil (45~105mm), QR Code: 15mil(35~155mm)/1D: CODE128, UCC/EAN-123, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, code39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBar (RSS-14,RSS-Limited, RSS-Expand)/ 2D: QR code(QR1/2, Micro), Data Matrix（ECC200,ECC000,050,080,100,140).
