TaskBook Mobile Computer

TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer
TaskBook Mobile Computer

Downloads

File Size Download
taskbook.pdf 279.86KB Download
Mobile Computer Datalogic Warehouse Solution TaskBook

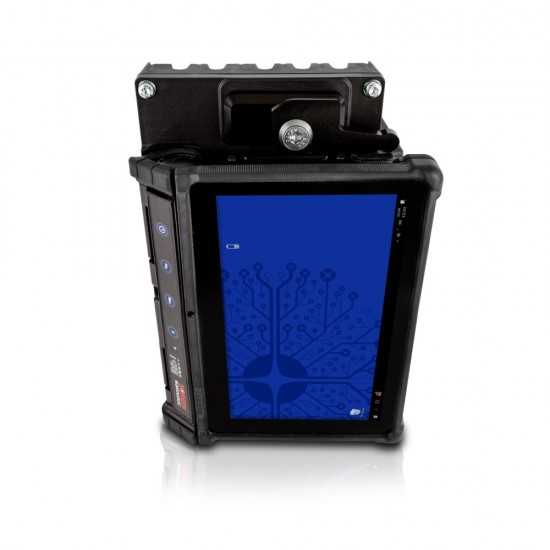

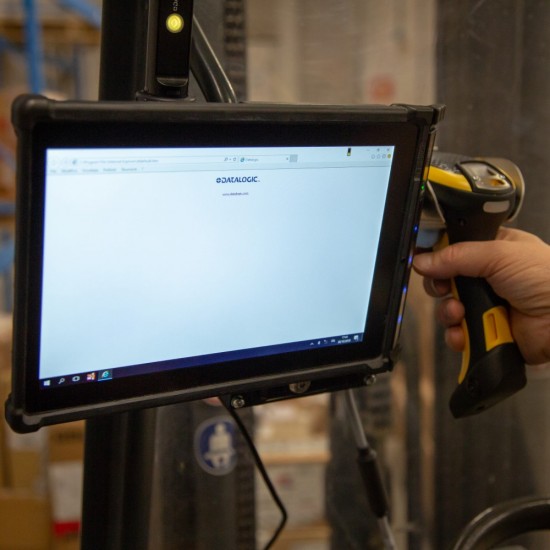

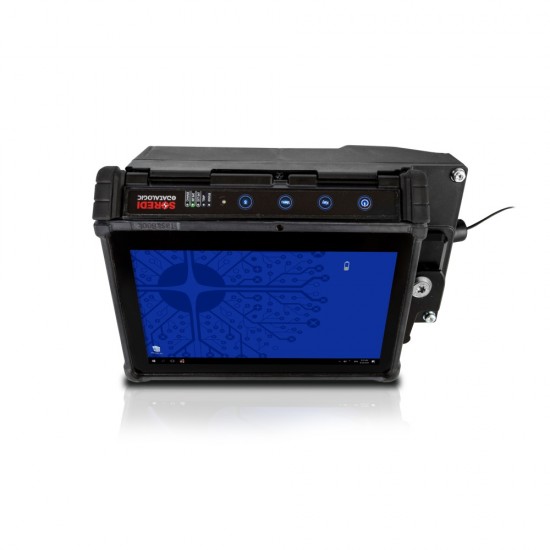

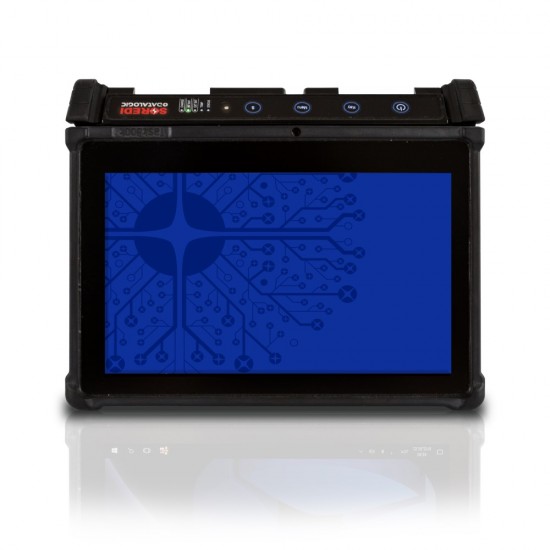

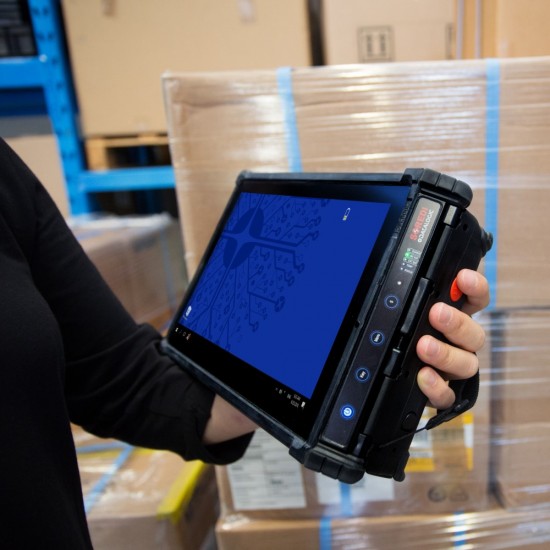

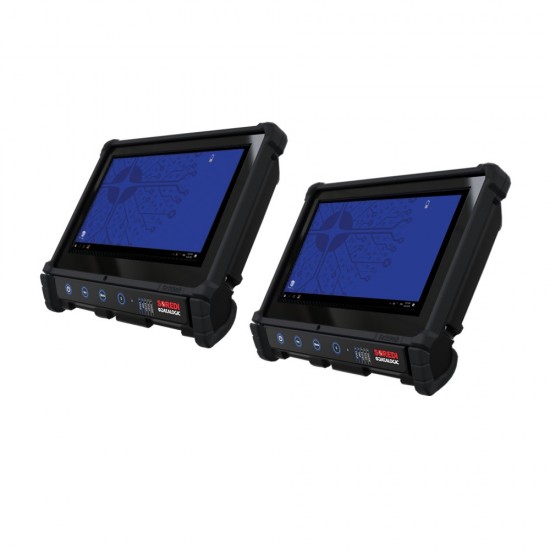

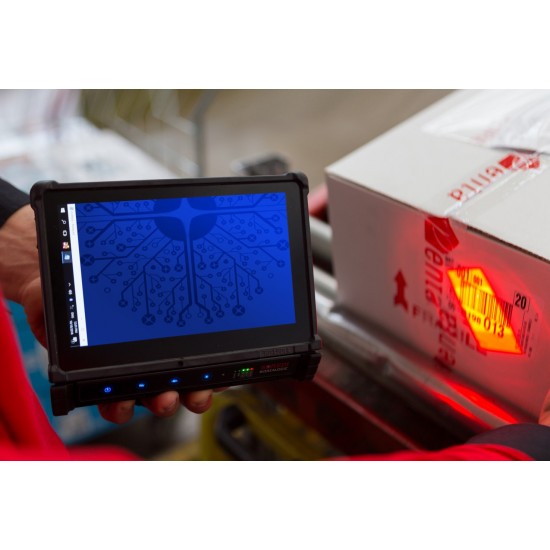

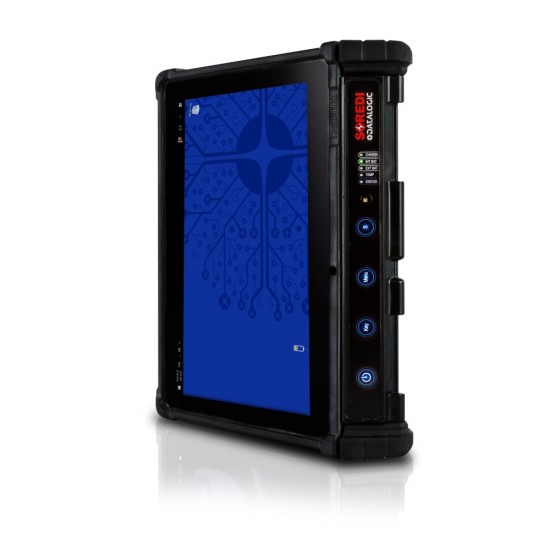

The new TaskBook is a rugged tablet expressly designed for industrial applications. With its unique concept of ‘one-handed’ operation, it introduces a new and unique way to operate inside factories and warehouses with a tablet form factor. The TaskBook tablet has great ergonomics and is very well balanced when worn on one arm. With its optional handgrip that integrates either a Standard or Auto Range 2D imager along with a swappable battery, the TaskBook provides top efficiency with its single-handed scanning operation and ability to operate 24/7. With its optional docking station that can be fully integrated into a forklift for a flexible vehicle mount solution, the TaskBook is perfect for small forklifts or where mobility is required. Use the TaskBook without fear and experience the built-in ruggedness: with an IP65 rating, a rugged housing that protects the device from the most hazardous environments, Corning® Gorilla® glass with 1.6 mm thickness (4 times better than consumer grade!) and 1.2 m / 4 ft repeated drops to concrete, the TaskBook can be used in most any extreme environment for applications such as logistics, maintenance, quality control, and inspections. TaskBook is available in both a 7 inch and a 10 inch display with Windows 10 IoT operating system.


Specifications

Mobile Terminals
Monitor pda 7 inch: WSVGA 1024 x 600, 420 cd/m². 10 inch: WXGA 1280 x 800, 350 cd/m².
Operation System Windows® 10 IoT Enterprise 64-bit
CPU pda Intel 1.46 GHz Dual-Core
Memory pda RAM: 4 GB
Communication Bluetooth® Wireless Technology 4.0/ Wi-Fi: 802.11 a/ b / g / n (2.4 GHz and 5 GHz)/ Diversity antennas embedded
Interface-Ports Interfaces on Device USB: 1 x USB-C 2.0. Interfaces on Dock Station: RJ45: Ethernet 10/100 Mbps./ USB: 2 x USB 2.0/ RS-232, Audio Jack (optional)
Keyboard Front keys: SW keyboard pop-up/ On screen setup menu/ Customizable function button.
Sealing IP65
Resistance Operating: -20 to 50 ºC / -4 to 122 ºF Storage: -40 to 60 ºC / -40 to 140 ºF/ Humidity 10 to 90% at 40 ºC / 104 ºF non-condensing. Shock & Vibration Class 5M3 at EN 60721-3-5: 1998 (landcrafts)
Dimensions/ Weight pda 7 inch: 15.0 x 18.7 x 3.8 cm / 5.9 x 7.3 x 1.5 in/ Weight (with Battery) 7 inch: 733 g / 25.8 oz. 10 inch: 27.9 x 18.7 x 3.8 cm / 10.9 x 7.3 x 1.5 in/ Weight (with Battery) 10 inch: 1044 g / 36.8 oz
Power supply mobile terminals Internal Battery 2,500 mAh @ 7.2 VDC; 18 W/ Handgrip Battery 2,600 mAh @ 7.4 VDC; 19.4 W/ Battery Operating: -20 to 50 ºC / -4 to 122 ºF. Docking Station Power Supply 12-48 VDC or 110/230 VAC.
Additional features mobile terminals Certification Certified for CE/FCC 1-Year Factory Warranty.
