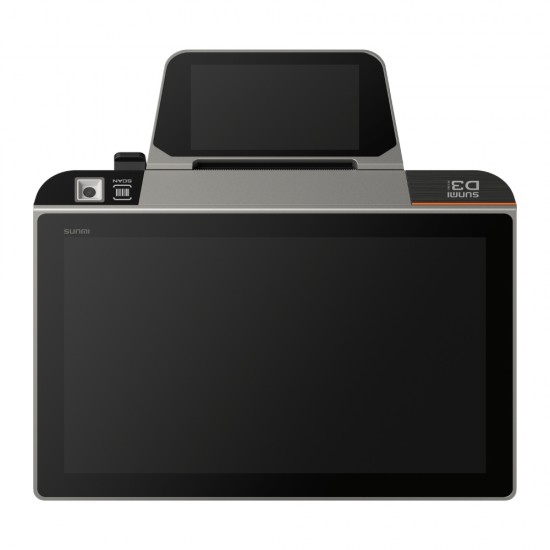

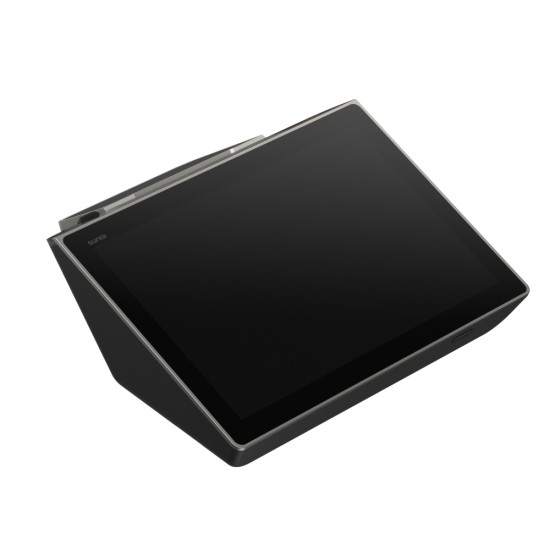

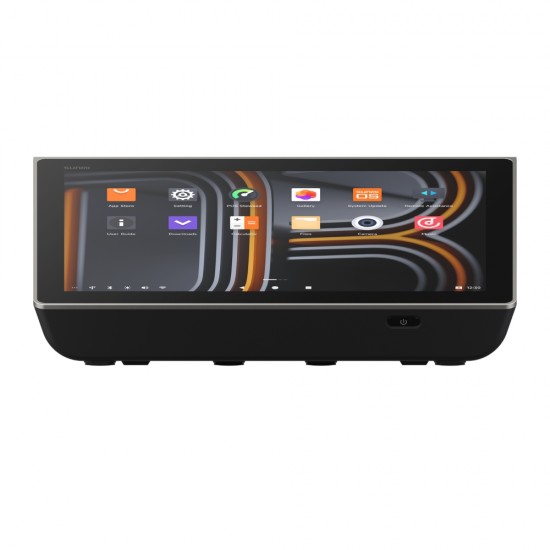

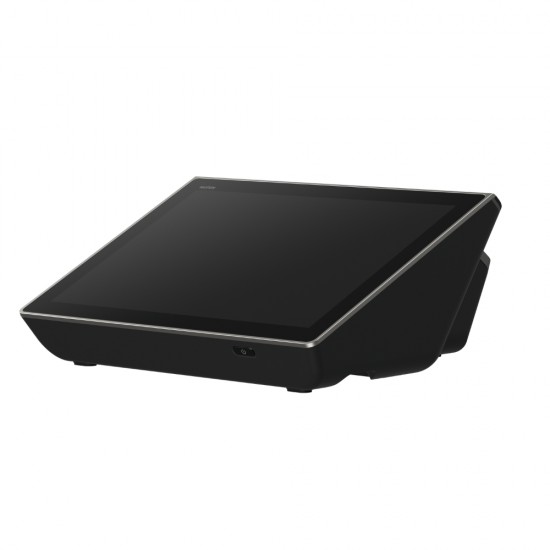

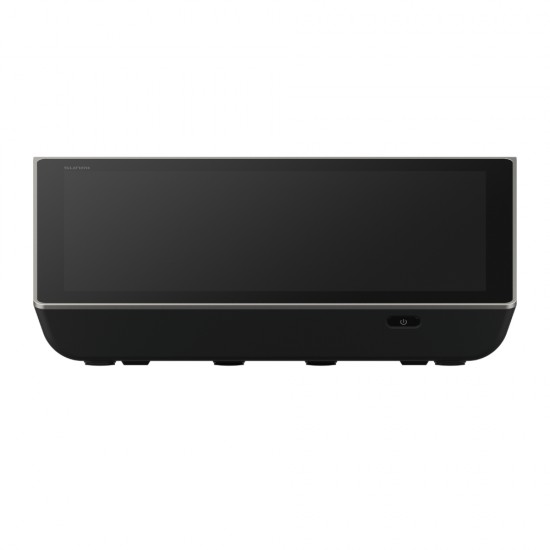

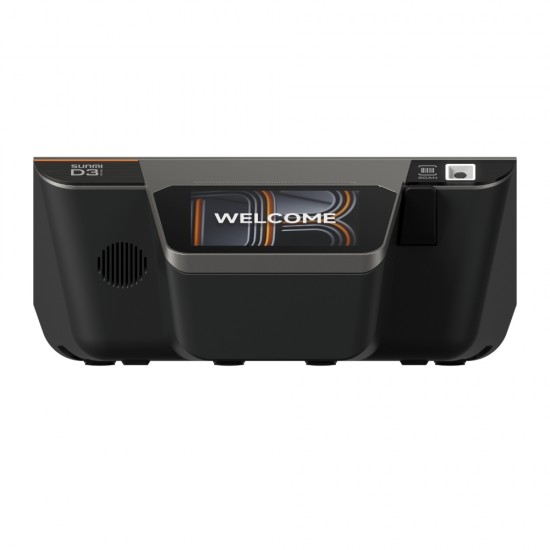

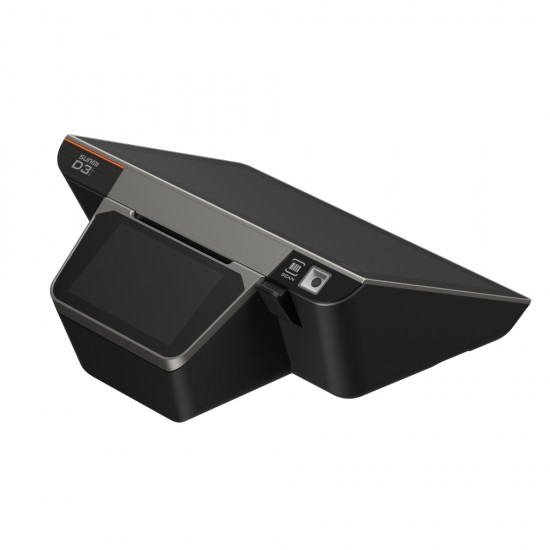

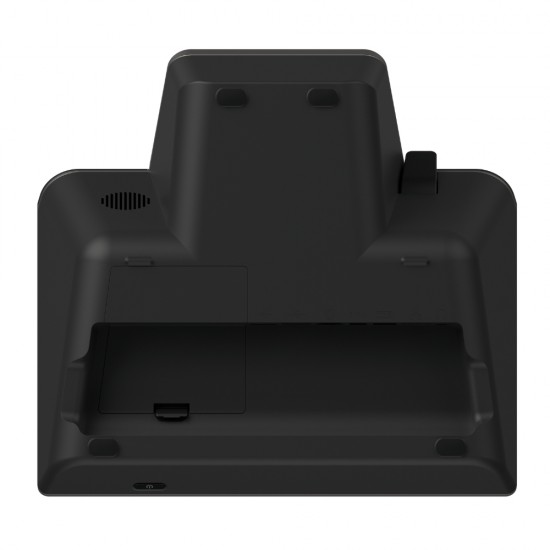

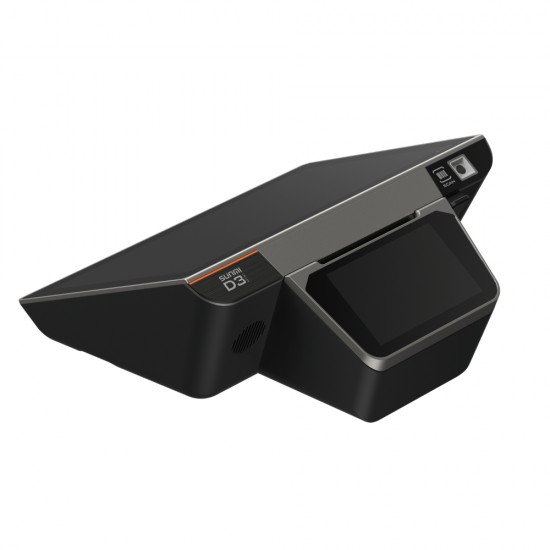

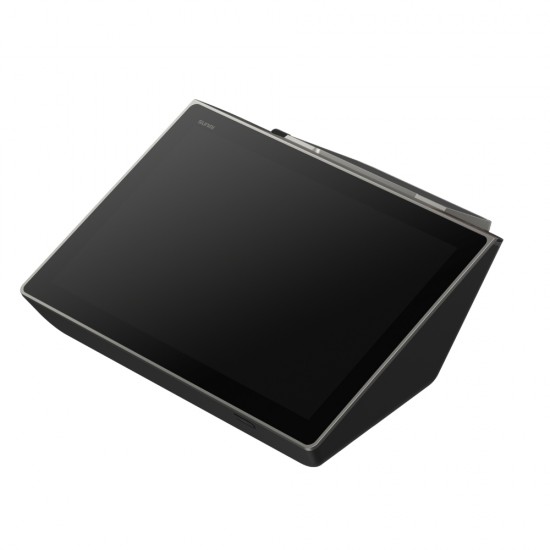

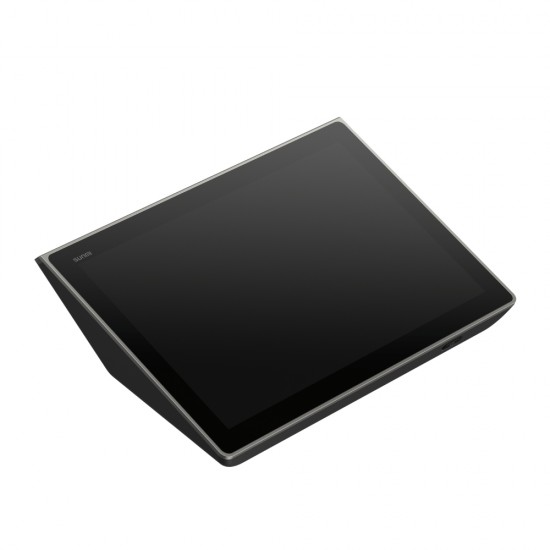

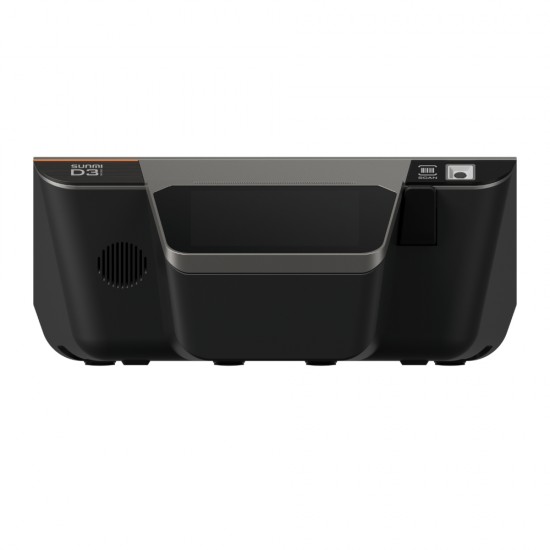

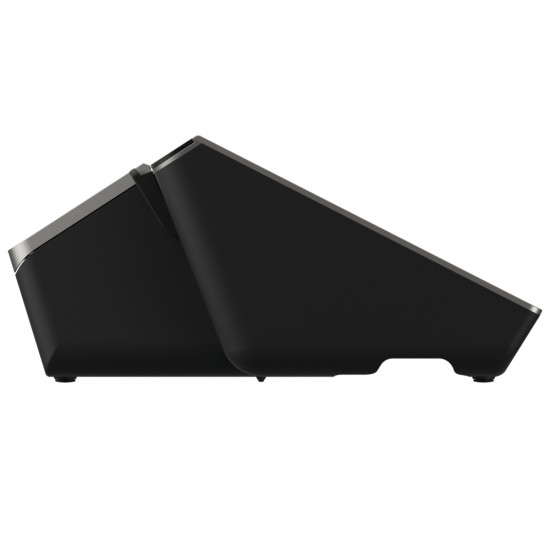

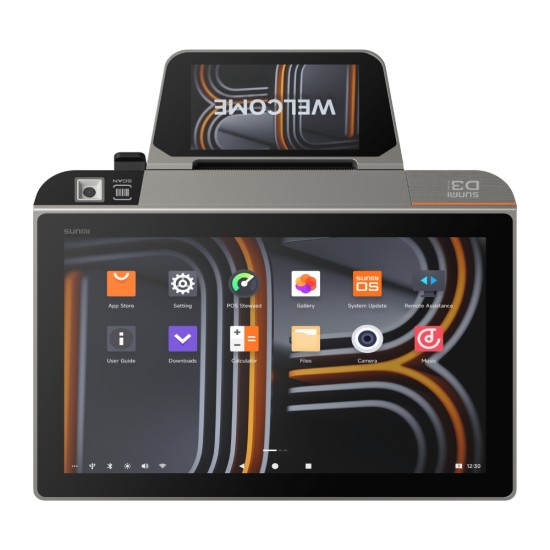

Sunmi D3 Mini Smart Touch POS 80mm

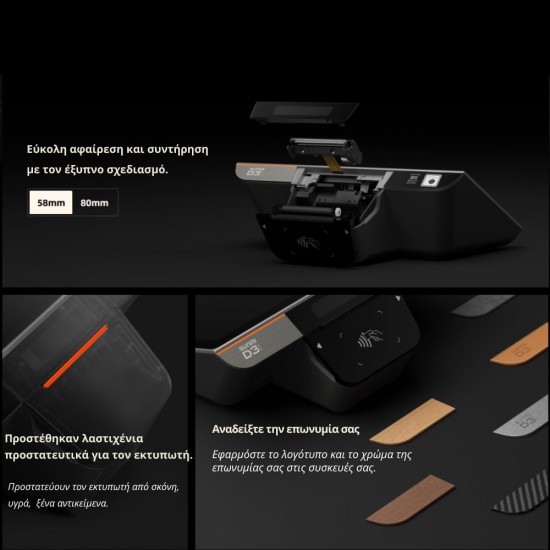

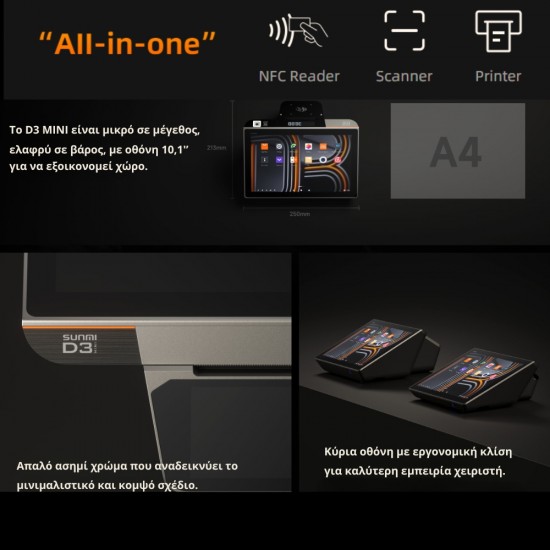

Smart Desktop Terminal Mini in size, powerful inside. Speeds up the operations with the Qualcomm hexa-core processor, 3GB RAM+32GB ROM. Quick response and cache loading thanks to the high read and write speed of UFS 2.2. The 58mm version comes with a built-in battery that features 4-hour runtime. Small in size, light in weight, comes with a 10.1 inch ergonomically inclined main screen and saves more space. Easy to remove and maintain with the modular design. Rubber seals added to protect the printer from dust, liquid among other foreign objects. Customized, with private logo and brand color to the device to show the brand personality.

SUNMI

Specifications

Touch Systems
Monitor	Main: 10.1" HD, IPS, 800*1280, 300nits; 10-point capacitive touch display Secondary: 2.4" seven-segment display
CPU	Qualcomm hexa-core, up to 2.4GHz
Memory	3GB RAM+32GB ROM
Disk	External Memory Card:1x MicroSD (TF card) Up to 1TB supported
Operating System	SUNMI OS (based on Android 13)
Resolution	800×1280
Interface	Wi-Fi. Bluetooth.
USB Ports	3 x USB 3.0 Type A port
Serial Ports	RJ11 serial port ×1
Ethernet Ports	RJ45 LAN port ×1
Additional Ports	RJ12 cash drawer port ×1, 1 x audio jack, 1 x power port, 1 x MicroUSB debug port (hidden).

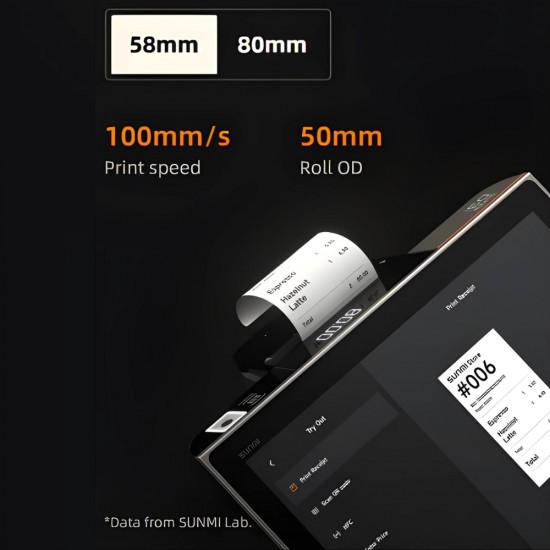

Printer Touch Systems	Built-in 58mm thermal printer. Print speed up to 100mm/s. Service life 50Km. Paper roll φ50mm.
Power supply	INPUT: AC100~240V/1.5A, OUTPUT: DC24V/1.5A/36W
Temperature/ Humidity	Work temp: 0°C~40°C, Storage temp: -20°C~60°C
Dimensions/ Weight	250x213x91mm/ 1.1kg
Additional features Touch Touch Systems	Built-in battery 2600mAh. Touch Screen: G+G capacitive/ Scanner A 1MP built-in scanner for 1D/2D barcode reading/ Card Reader/ Speaker: 1 x 3W/ Blue Indicator Light/ Power button (lock screen)/ Reset button (hidden).
