D3 Mini Smart Touch POS 58mm

Downloads

File	Size	Download
sunmi-d3-mini-product-datasheet-en.pdf	757.18KB	Download

Description
Video

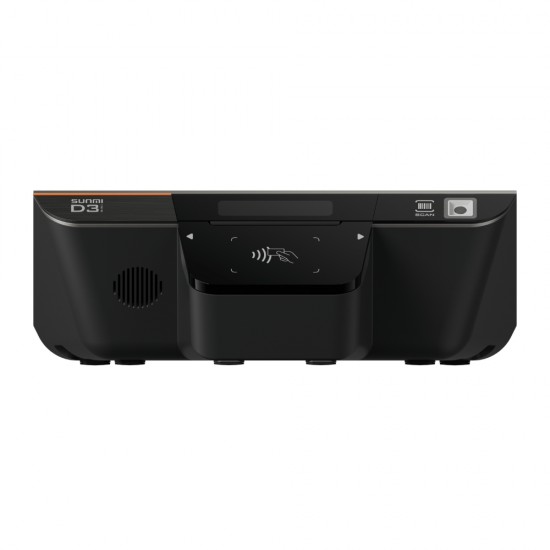

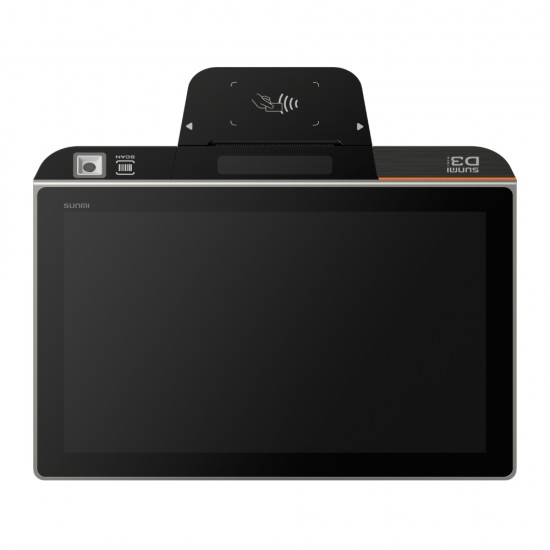

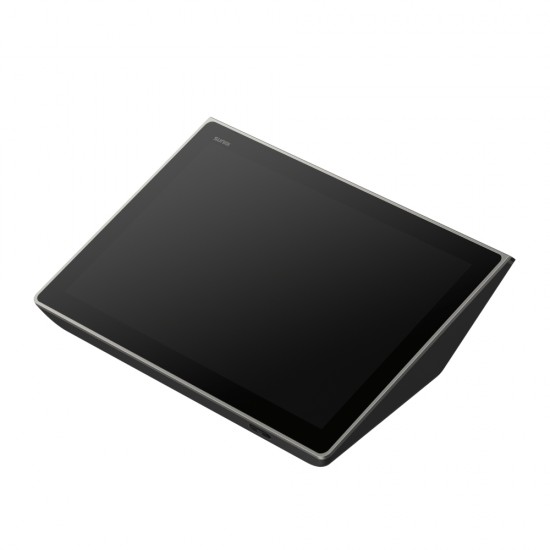

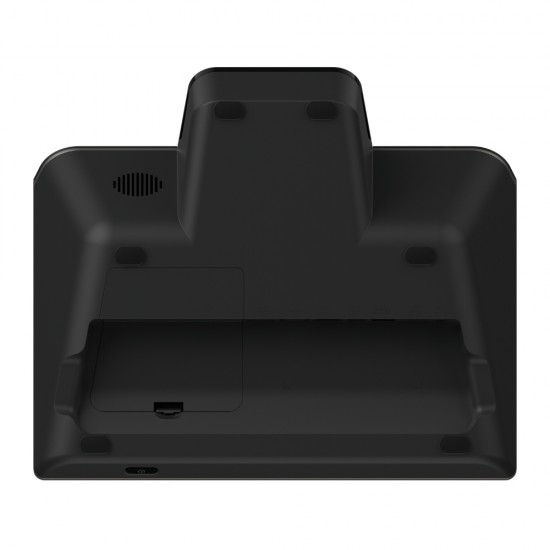

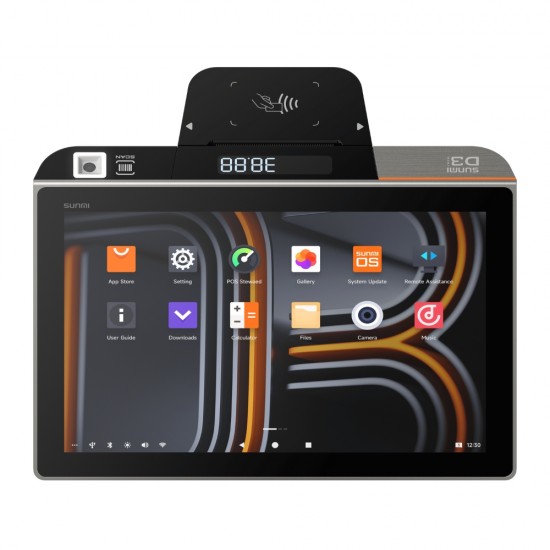

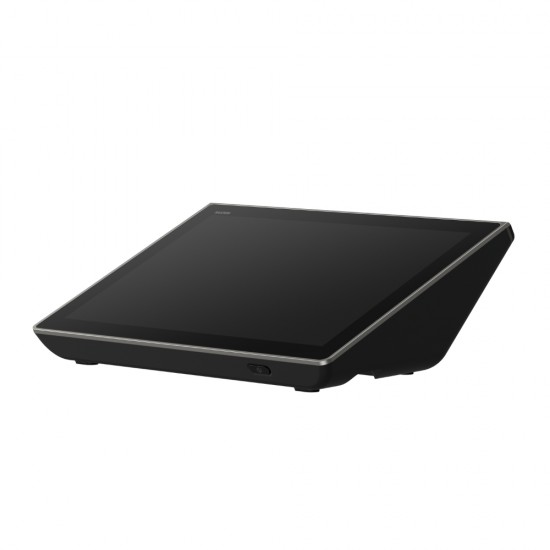

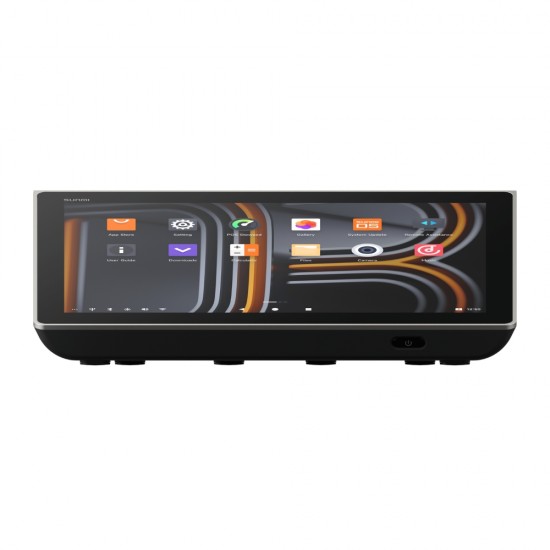

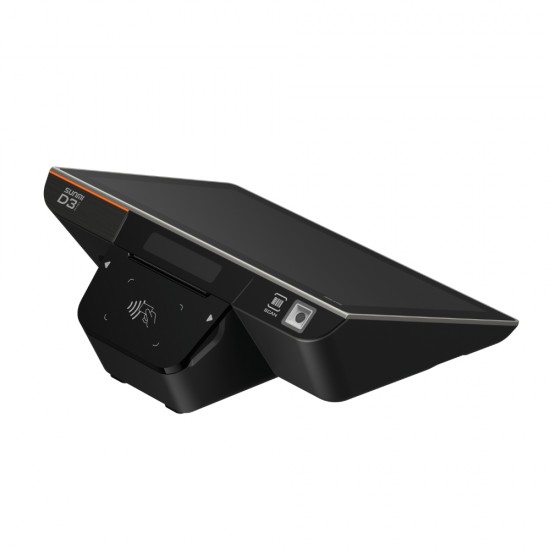

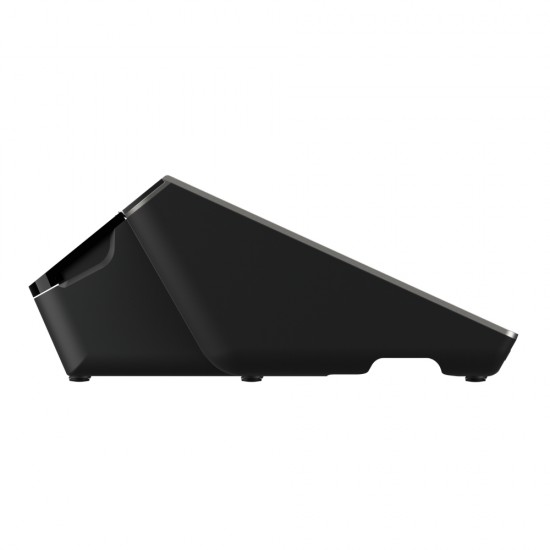

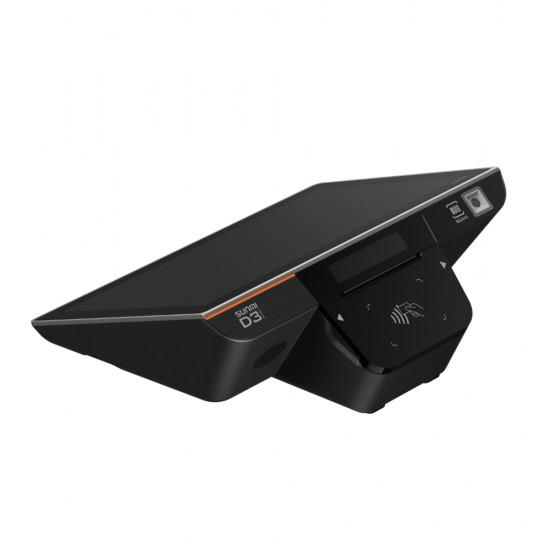

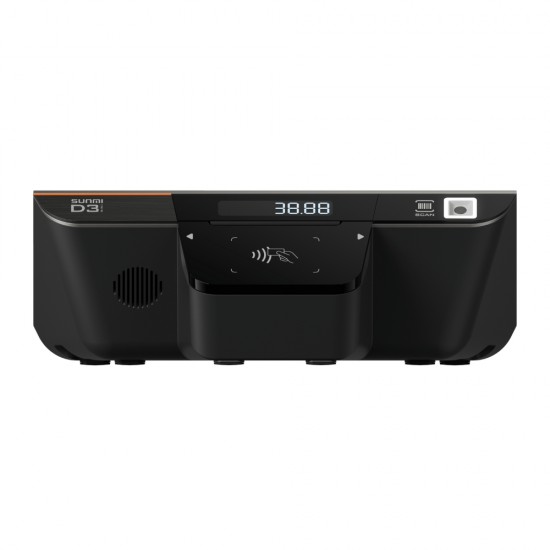

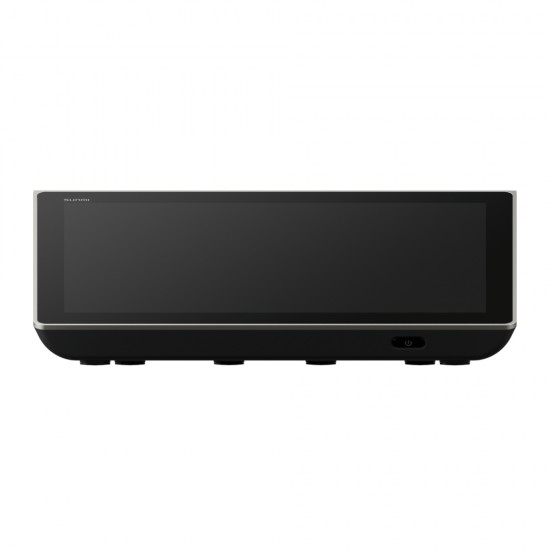

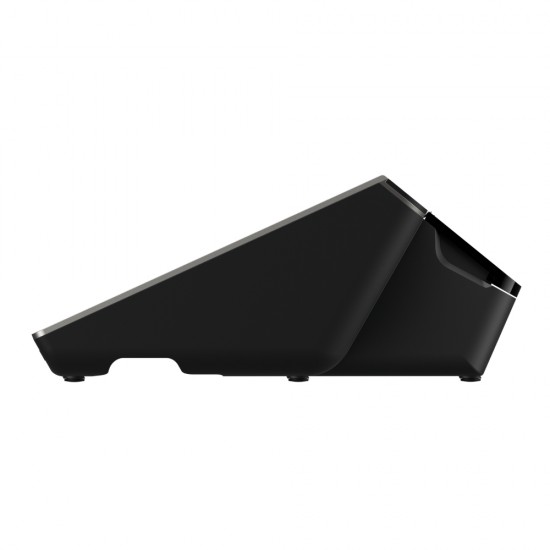

Sunmi D3 Mini Smart Touch POS 58mm

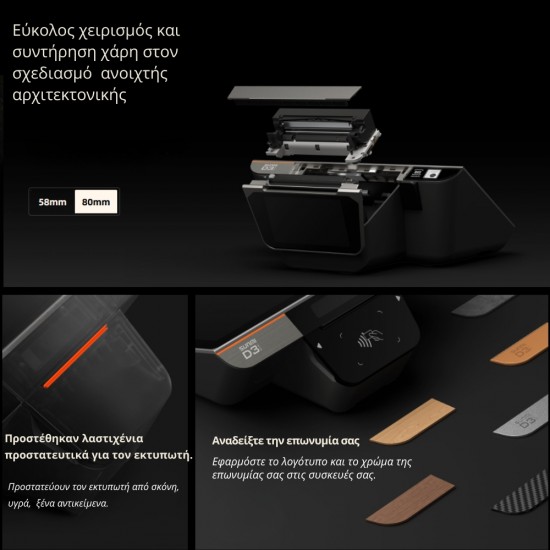

Smart Desktop Terminal Mini in size, powerful inside. Speeds up the operations with the Qualcomm hexa-core processor, 3GB RAM+32GB ROM. Quick response and cache loading thanks to the high read and write speed of UFS 2.2. The 58mm version comes with a built-in battery that features 4-hour runtime. Small in size, light in weight, comes with a 10.1 inch ergonomically inclined main screen and saves more space. Easy to remove and maintain with the modular design. Rubber seals added to protect the printer from dust, liquid among other foreign objects. Customized, with private logo and brand color to the device to show the brand personality.

SUNMI

Specifications

Touch Systems

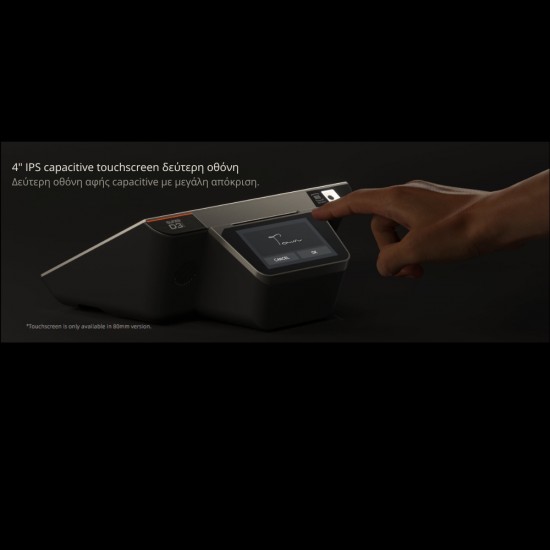

Monitor	Main: 10.1" HD, IPS, 8001280, 300nits; 10-point capacitive touch display Secondary: 4" IPS, WVGA, 480800, 300nits；capacitive touch screen.
CPU	Qualcomm hexa-core, up to 2.4GHz
Memory	3GB RAM+32GB ROM
Disk	External Memory Card:1x MicroSD (TF card) Up to 1TB supported
Operating System	SUNMI OS (based on Android 13)
Resolution	800×1280
Interface	Wi-Fi. Bluetooth.
USB Ports	3 x USB 3.0 Type A port
Serial Ports	RJ11 serial port ×1
Ethernet Ports	RJ45 LAN port ×1
Additional Ports	RJ12 cash drawer port ×1, 1 x audio jack, 1 x power port, 1 x MicroUSB debug port (hidden).

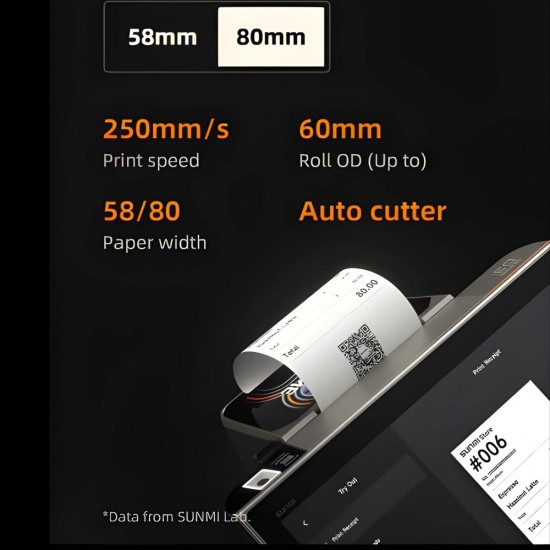

Printer Touch Systems	Built-in 80mm thermal printer. Auto cutter. Print speed 250mm/s. Service life: 150Km. Paper roll : φ60mm
Power supply	Input: AC 100~240V/1.7A. Output: DC 24V/1.5A/60W
Temperature/ Humidity	Work temp: 0°C~40°C, Storage temp: -20°C~60°C
Dimensions/ Weight	250x213x108mm/ 1.4kg
Additional features Touch Touch Systems	Scanner A 1MP built-in scanner for 1D/2D barcode reading/ Card Reader/ Speaker: 1 x 3W/ Blue Indicator Light/ Power button (lock screen)/ Reset button (hidden).
