L2H Smart Mobile Terminal

Downloads

File	Size	Download
l2h-en.pdf	383.99KB	Download

Description
video

Sunmi L2Ks Android 11 with OCR Smart Mobile Terminal

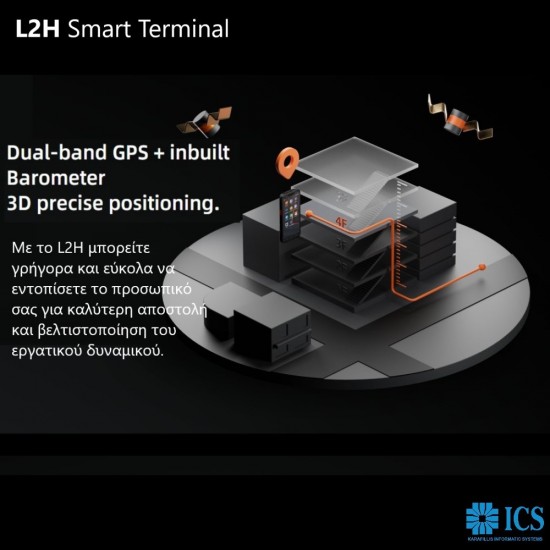

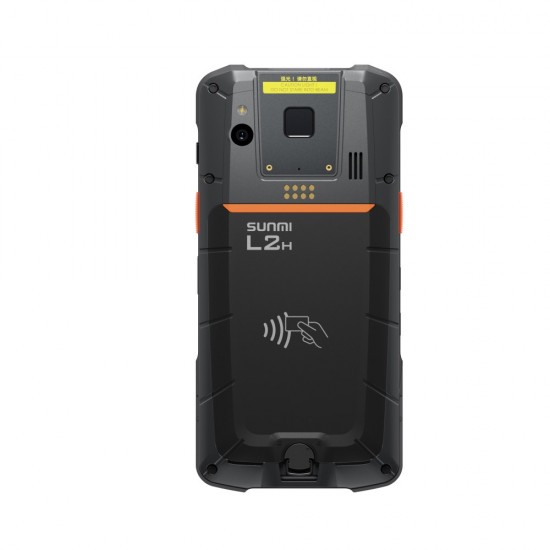

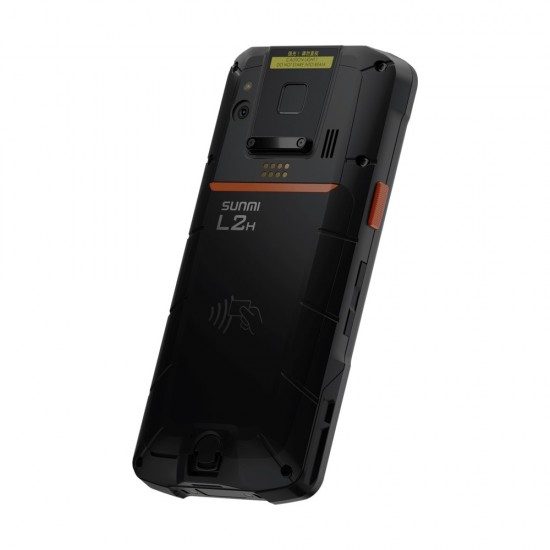

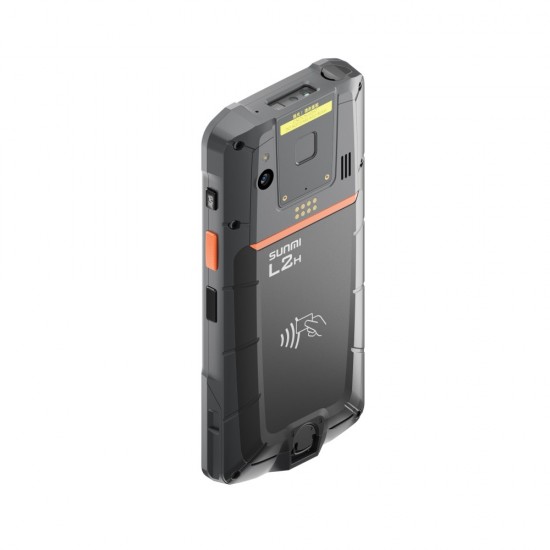

Smart Mobile Terminal SUNMI L2H. Powerful PDA, higher, stronger and safer. With octa-core processor and SUNMI OS, minimized position deviation it can locate your staff more accurately to a specific floor with the horizontal and vertical positioning system. Inbuilt dual-band GPS and barometer. Barcode reading and OCR. In addition to reading 1D/2D barcodes even if scratched, folded or stained, L2H also can recognize printed text with its OCR-enabled scanner (SUNMI provides you OCR SDK interfaces for quick and efficient OCR realization). Rugged and durable, featuring IP67 and 1.5m drop spec, L2H can stand harsh work environments with no compromise in performance. Protected against the effects of 1m deep water immersion, for 30 min. Newly added fingerprint lock to protect your data.

SUNMI

Specifications

Mobile Terminals
Monitor pda	5.5" HD, 1440x720 Capacitive multitouch

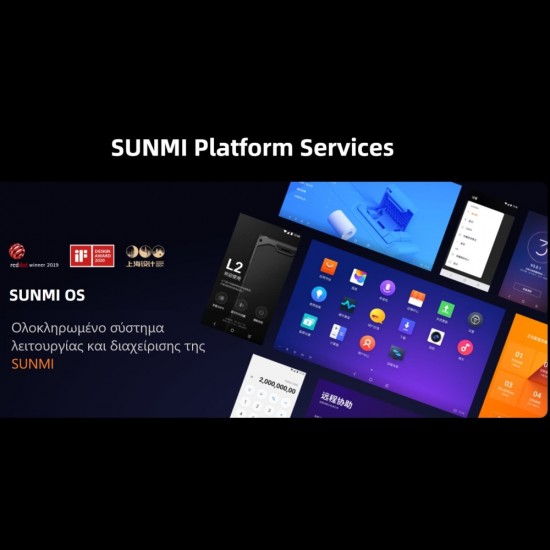

Operation System	SUNMI OS (*based on Android 11)

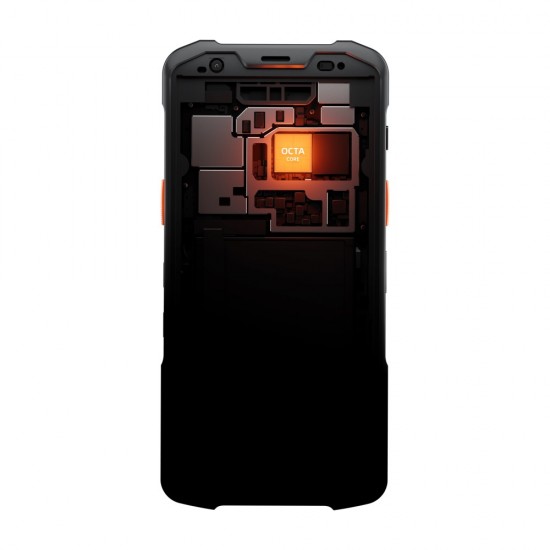

CPU pda	Kyro-260 Octa-core (Quad Core, 2.0GHz+Quad Core, 1.8GHz)
Memory pda	4GB RAM+64GB ROM/ 6GB RAM+128GB ROM (optional)
Communication	2G/3G/4G/ Wi-Fi: 2.4GHz/5GHz. Bluetooth 5.1 BLE

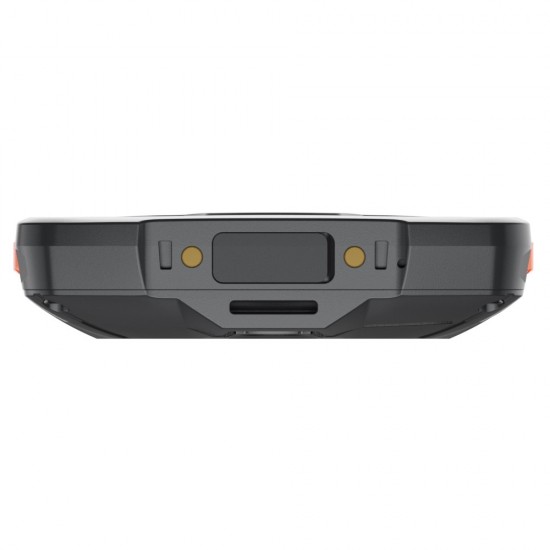

Interface-Ports	1 x Type-C, support OTG, 2 x pogo pin at the bottom for charging, 8 x pogo pin on the back for accessories
Barcode scanner	Professional scan engine (Optional Zebra/ Honeywell)
Battery pda	Removable li-polymer battery, Lithium battery, 3.8V/5000mAh. Non-removable small battery, 3.7V/60mAh.
Keyboard	1 Function button. 2 Left and right scan buttons. 2 Volume (+/-) button, 1 Custom button.
Sealing	IP67
Resistance	Drop: 1.5m / Operating temperature: -20℃~55℃/ Storage temperature: -40℃~70℃. Protected against the effects of 1m deep water immersion, for 30 min.
Dimensions/ Weight pda	154.4x74.6x17.1mm / Total Weight 245g

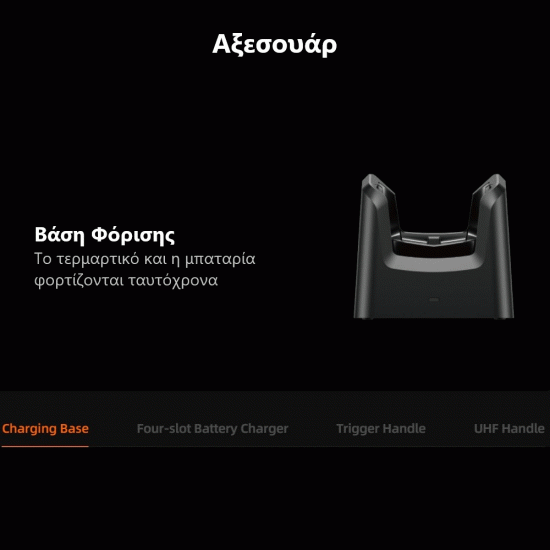

Accessories	Optional: Trigger handle,UHF handle,Charging base, 4-slot battery charger,Hand strap Screen tempered glass
Additional features mobile terminals	Camera, Speaker, Microphones,PSAM Slot, Card Slot, eSIM, GPS, NFC, Sensors, NFC Supports TypeA&B card, Mifare card, Felica card, ISO/IEC 14443 and ISO15693 compliant. Power Adapter Type-C 5V/3A, 9V/2A
