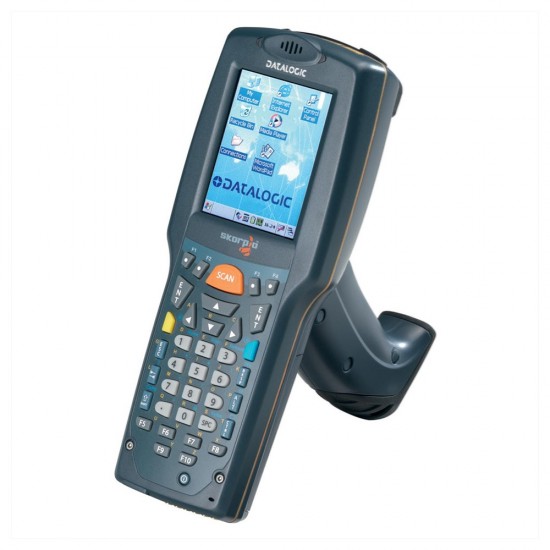

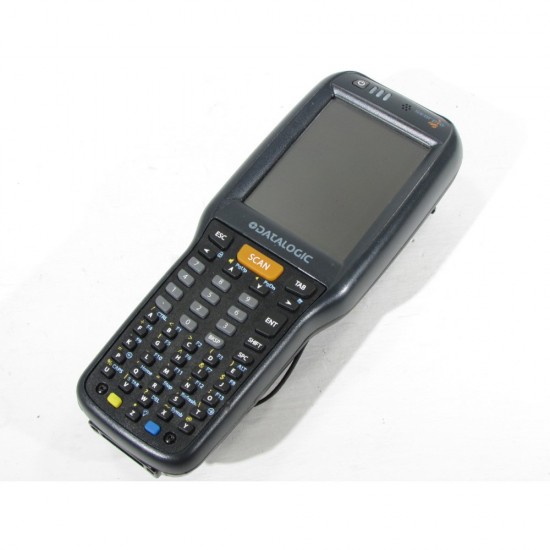

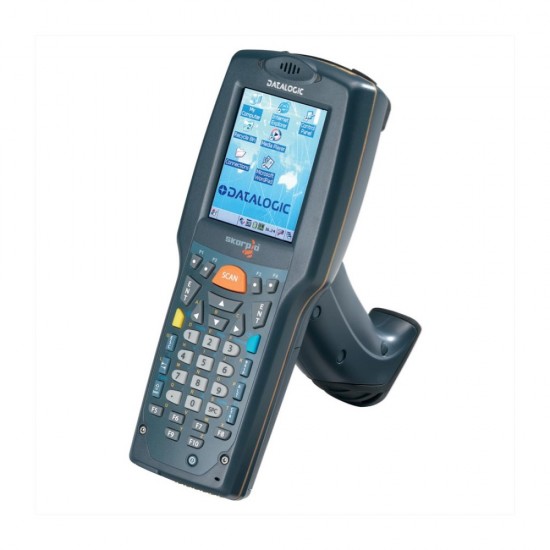

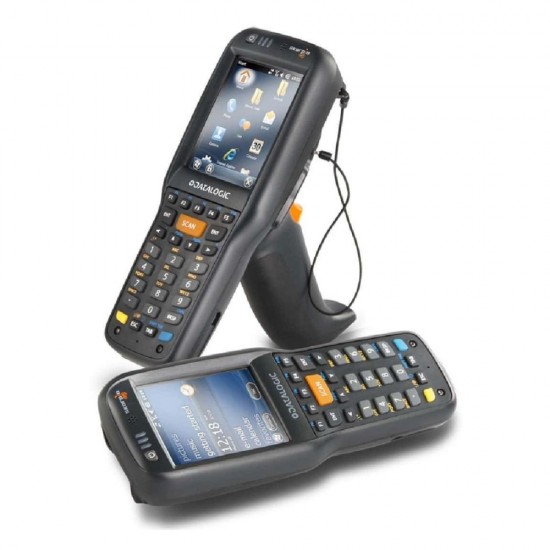

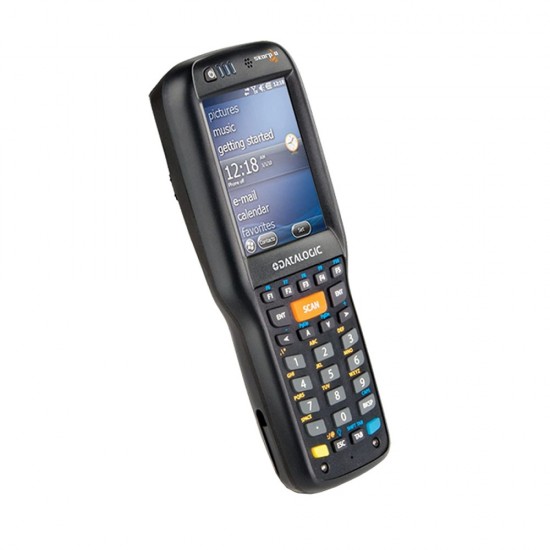

Bluetooth 2 with EDR 3,2 TFT color display. Equipped with the largest high-visibility color graphic display (3.2 in) with touch screen in its class, the Skorpio™ X3 mobile computer helps users work more efficiently. Three different keyboards (the 50-key alphanumeric keypad, the 38-key functional keypad and the 28-key numeric keypad) allow data to be input very quickly. Operating systems include your choice of the standard Microsoft Windows Embedded Handheld 6.5 or Windows CE 6.0. This rugged mobile computer is particularly suitable for mobile commerce solutions in the retail environment both on store shelves and in stock rooms. With the best ergonomics on the market, the Skorpio X3 mobile computer reduces operator fatigue with no compromise in terms of reliability and robustness, resisting harsh environments, multiple drops, strong shocks and repetitive tumbles. The pistol grip model has the most durable and comfortable handle in the industry. Its compact size and light weight combine to offer excellent balance and superior handling. The Skorpio X3 mobile computer’s wireless communication capabilities (Bluetooth® EDR, IEEE 802.11 a/b/g) enable fast transactions and complete interaction with information systems including the newest RF security protocols such as WPA™ and WPA2™. Additionally, Cisco Compatible Extensions CCX V4 certification permits all the advantages offered by the Cisco WLAN infrastructure.
TFT transflective LCD with 240 x 320 pixels, LED backlight and integrated touch screen 3.2 in diagonal.
Operation System
Microsoft Windows CE 6.0 Pro with Microsoft WordPad and Internet Explorer 6.0.
CPU pda
Microprocessor XScale™ PXA310 @ 624 MHz
Memory pda
System RAM: 256 MB, System Flash:512 MB
Communication
LOCAL AREA NETWORK (LAN) Summit IEEE 802.11 a/b/g/n Frequency range: Country dependent, typically 2.4 and 5.2 GHz; Cisco CCX v4 Security. PERSONAL AREA NETWORK (PAN) Bluetooth Wireless Technology IEEE 802.15 Class 2 with EDR.
Interface-Ports

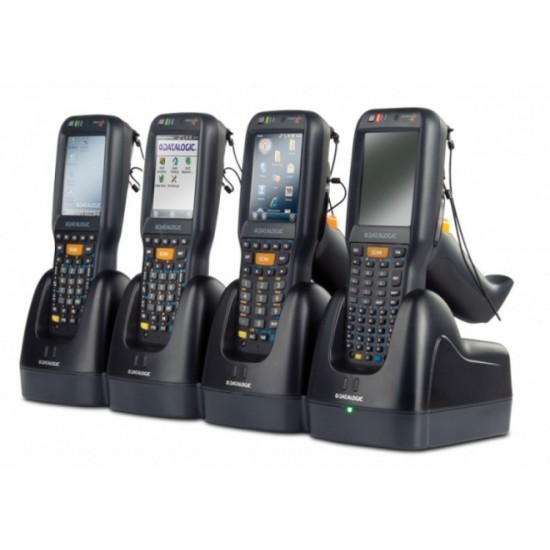

Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps. Micro-USB port for power only, no data communication interface. Ethernet via single dock (external module) or multiple cradle.
Barcode scanner
1D / linear codes, 2D codes, postal codes, stacked codes/ Imaging / laser
Battery pda
Removable battery pack with rechargeable Lithium-ion batteries. Local MIcro USB connection for fast battery charging. Standard 3.7 V , 3000 mAh (11.1 Watt-hours) Extended 3.7 V, 5000 mAh (19.2 Watt hours)
Keyboard
50 keys full alphanumeric, 38 keys functional or 28 key-numeric keyboard with backlight.
Sealing
IP64
Resistance
Withstands drops from 1.5 m / 5.0 ft onto concrete. Operating Temperature: -10 C-50 C/ storage temperature: -20 C-70 C.
