SKORPIO GUNX3 Mobile Terminal

SKORPIO GUNX3 Mobile Terminal

Downloads

File	Size	Download
scorpio-x3-gun-brochure_scorpio_gun_x3.pdf	1.28MB	Download

Description
Video

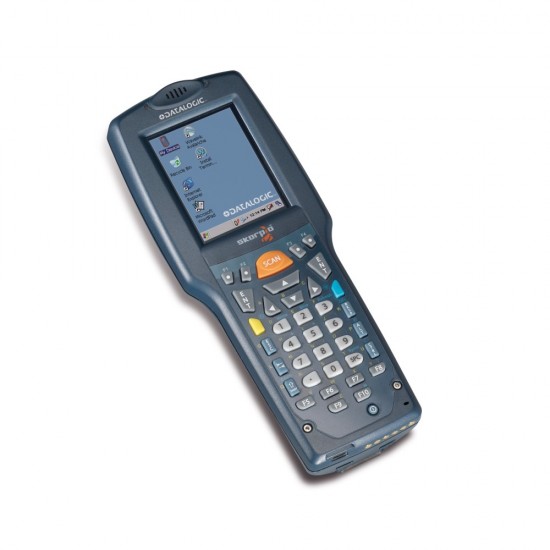

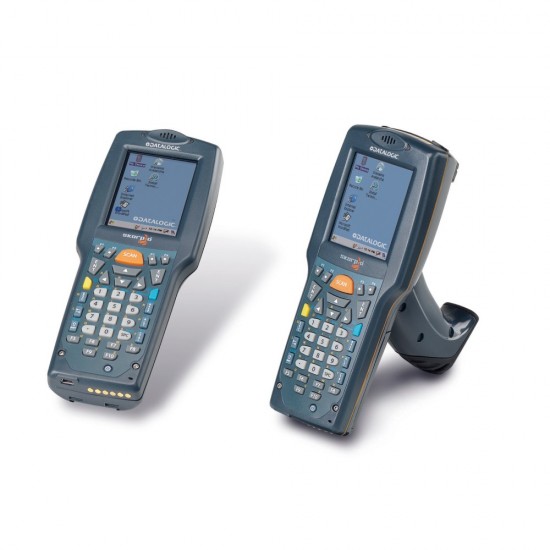

Mobile Terminal DataLogic SKORPIO GUNX3

Bluetooth 2 with EDR 3,2 TFT color display.Equipped with the largest high-visibility color graphic display (3.2 in) with touch screen in its class, the Skorpio™ X3 mobile computer helps users work more efficiently. Three different keyboards (the 50-key alphanumeric keypad, the 38-key functional keypad and the 28-key numeric keypad) allow data to be input very quickly. Operating systems include your choice of the standard Microsoft Windows Embedded Handheld 6.5 or Windows CE 6.0. he Skorpio X3 mobile computer’s wireless communication capabilities (Bluetooth® EDR, IEEE 802.11 a/b/g) enable fast transactions and complete interaction with information systems including the newest RF security protocols such as WPA™ and WPA2™. Additionally, Cisco Compatible Extensions CCX V4 certification permits all the advantages offered by the Cisco WLAN infrastructure.

DATALOGIC

Specifications

Mobile Terminals
Monitor pda	TFT transflective LCD with 240 x 320 pixels, LED backlight and integrated touch screen 3.2 in diagonal.
Operation System	Microsoft Windows CE 6.0 Pro with Microsoft WordPad and Internet Explorer 6.0.
CPU pda	Microprocessor XScale™ PXA310 @ 624 MHz
Memory pda	System RAM: 256 MB, System Flash:512 MB
Communication	LOCAL AREA NETWORK (LAN) Summit IEEE 802.11 a/b/g/n Frequency range: Country dependent, typically 2.4 and 5.2 GHz; Cisco CCX v4 Security. PERSONAL AREA NETWORK (PAN) Bluetooth Wireless Technology IEEE 802.15 Class 2 with EDR.
Interface-Ports	Main connector with USB 1.1 Host, USB 1.1 Client, RS-232 up to 115.2 Kbps. Micro-USB port for power only, no data communication interface. Ethernet via single dock (external module) or multiple cradle.
Barcode scanner	1D / linear codes, 2D codes, postal codes, stacked codes/ Imaging / laser
Battery pda	Removable battery pack with rechargeable Lithium-ion batteries. Local MIcro USB connection for fast battery charging. Standard 3.7 V , 3000 mAh (11.1 Watt-hours) Extended 3.7 V, 5000 mAh (19.2 Watt hours)
Keyboard	50 keys full alphanumeric, 38 keys functional or 28 key-numeric keyboard with backlight.
Sealing	IP64
Resistance	Withstands drops from 1.5 m / 5.0 ft onto concrete. Operating Temperature: -10 C-50 C/ storage temperature: -20 C-70 C.
Dimensions/ Weight pda	19.3 x 7.6 x 15.6 cm / 482.0 g pistol grip
