SK-50 Price Checker

SK-50 Price Checker

Downloads

File	Size	Download
sk-50-scan_kiosk_sk50.pdf	823.68KB	Download

Description

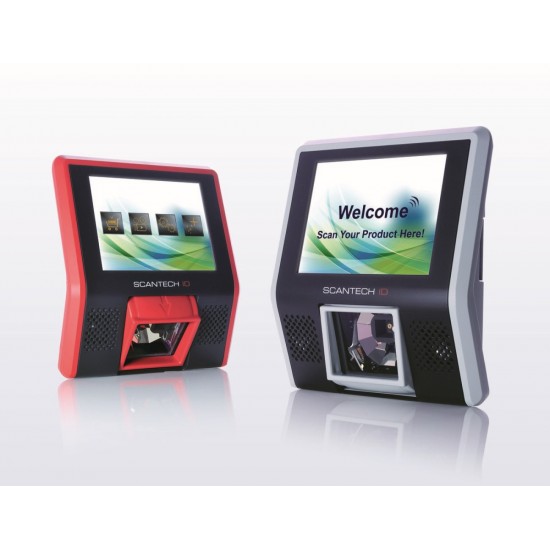

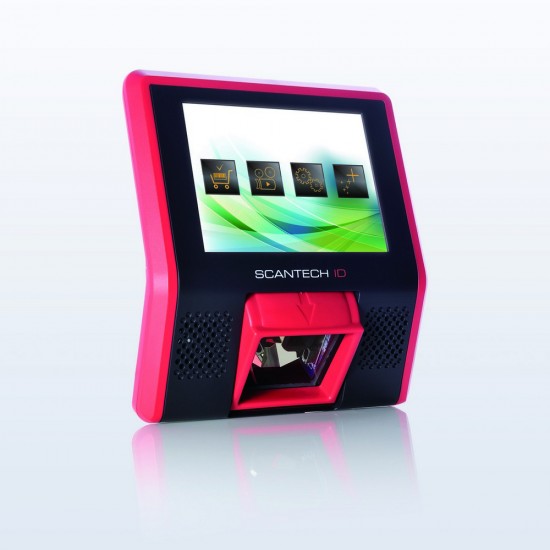

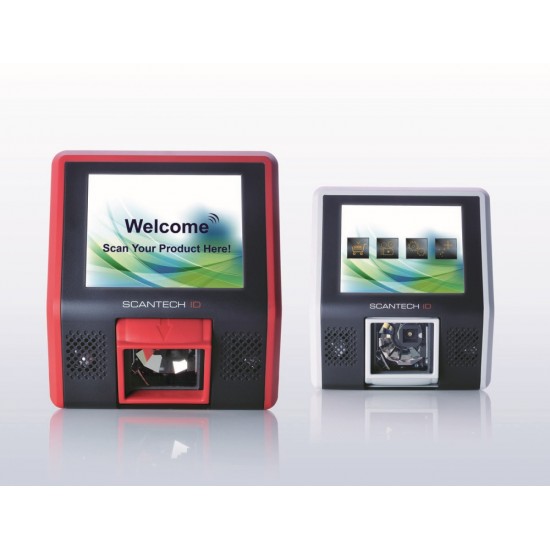

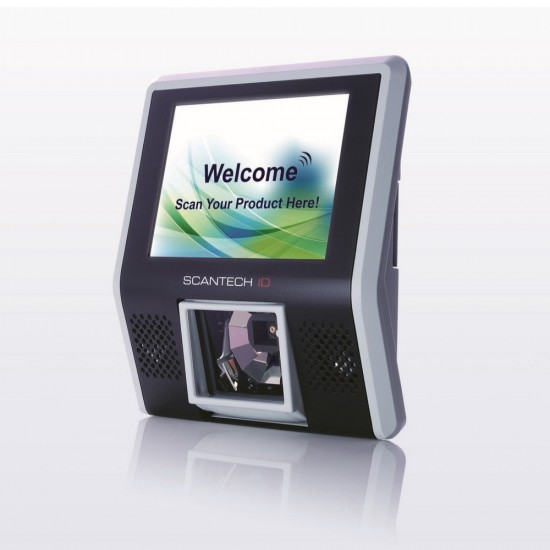

Price Checker SK-50

SK-50 Self-service SCAN KIOSK with touch screen and media display function, designed to help retailer increase their business, reduce the operation cost and improve customer shopping experience. SK-50 provide customers self-service applications, such as price check, sample music listening and watch the promotion video, with user friendly interface and rotatable scan window provides easy to operate and help customer to make purchase decision more easily and faster. SK-50 expandable ability can easily build on by adding third-party USB/RS-232/GPIO peripherals, including printers, keyboards, Entry/Exit-Gate control function, optional NFC reader or magnetic stripe readers feature to support gift card balance, check membership card points and use personal discount coupons. SK-50 allows shoppers to retrieve the required information without seeking the assistance of staff to make more informed purchase decisions. Powerful management tool built in embedded web server for simple access , remotely configure, diagnose, monitor and troubleshoot device, SK-50 also provides developer SDK Software Suite, supports with example source code. SK-50 will continuously help retailer with advance technology and stay ahead of the retail industry .

SCANTECH

Specifications

Price Checkers
Display Size	5.7" diagonal
Resolution	640x480 pixels/ 65.535 colours
Memory	Memory RAM 128MB/ Memory Flash 256MB Expandable with USB stick and SD card
Dimensions	193 x 176 x 85 mm (7.6" x 6.9" x 3.3")
Graphics supported	PNG/JPEG/GIF/BMP, Audio Supported: WAV/WMA/MP3,Video Supported: MPEG-4/H.264
Speaker	High Quality loudspeakers for superior audio performance
Scanner capability	Omni Directional Laser Scanner: High Speed, hi sensitive and omni-directional scanning. Reading of fragmented bar codes. Visible laser diode 635 nm. Scan pattern : 6 direction scan field, 24 lines. Scan rate : 2000 scans/sec. Up to 300 mm @ UPC/EAN 100%, PCS 90% or 2D Imager : Visible Red light 650nm. Scan rate : 200scans/sec auto adaptive in linear mode, 56 images/sec auto adaptive 2D mode. Resolution :752 Horizontal x 480 Vertical pixels, 256 gray levels.
Operating System	Standard Linux 2.6 or WinCE 6.0
Connectivity of price checker	Wired LAN: Ethernet: 100MB Base-TX/10MB Base-T (802.3) standard on board/ Power over Ethernet IEEE 802.3 af optional/ Two network LED indicators at the back. Wireless LAN: Through USB WiFi stick (ex factory or Scantech validated) 802.11 b/g/n 2.4 GHz. Encryption protocols: WPA, PSK and WPA Enterprise security.
Power	+12 VDC ± 10% / 1.5A
Additional features	Operating temperature 0° to 40°C ( 32° to 104°F). Storage temperature -20°C to 60°C ( -4° to 140°F). Humidity 5% ~ 95% RH (non-condensing
