SK-40 Price Checker

SK-40 Price Checker

Downloads

File	Size	Download
sk-40-scan_kiosk_sk40.pdf	791.19KB	Download
Specification-SK-40.pdf	224.82KB	Download

Description

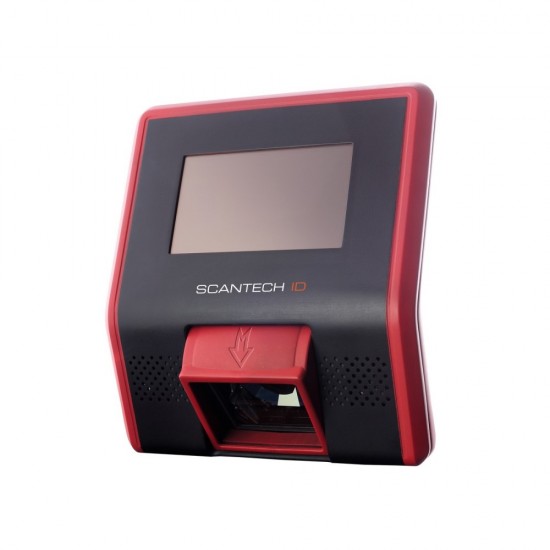

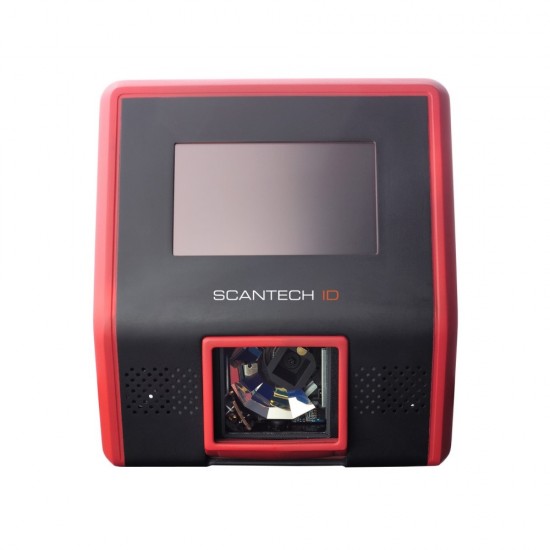

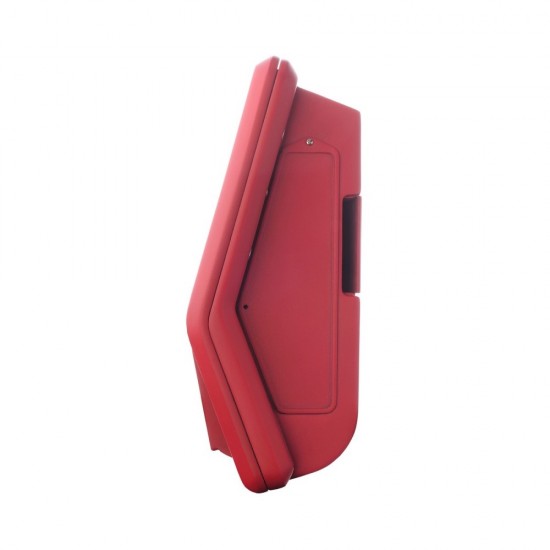

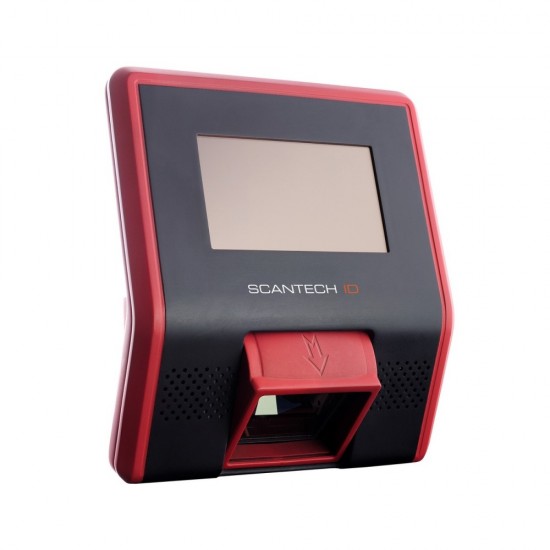

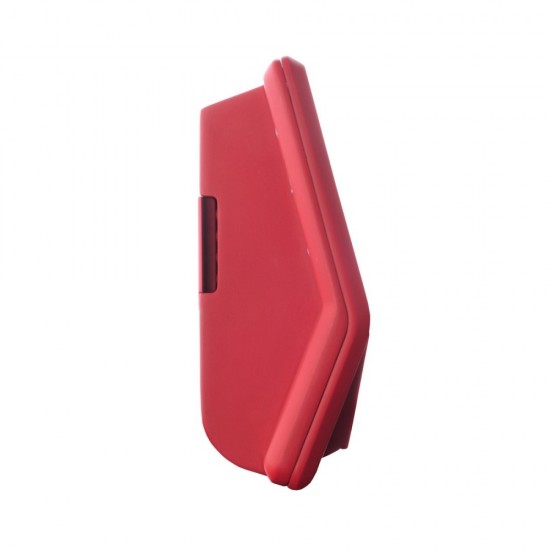

Price Checker SK-40

SK-40 is a color-screen Price Verifier. With 4.3 inch color display and price checker functionality, it provides customers who prefer a color display and easy access to the information. SK-40 will provide the price verifying functionality for customer self-service. With the color screen, the SK-40 also provides”Vivid broadcasting” (optional by project base) function with the ability to play multi-media formats (including picture and video) which are applied in Stores for promotion and advertisements. Furthermore, the SK-40 supported remote web configuration management; it will be convenient for system control management, who can monitor and manage all SK-40's deployed store-wide from a central control room. The SK-40 Rotatable scanner window design provides flexibility to adjust the scanner different installation altitude barcode scan and many more optional feature can be select, for example wireless networking (IEEE 802.11 B/G/N 2.4GHz ) Power Over Ethernet and Exit-Gate control function.

SCANTECH

Specifications

Price Checkers
Display Size	4.3" diagonal
Resolution	480 x 272 pixels/ 65.535 colours
Memory	Memory RAM 128MB/Memory Flash 256MB Expandable with USB stick and SD card
Dimensions	193mm x 176mm x 85 mm (7.6" x 6.9" x 3.3")
Graphics supported	PNG/JPEG/GIF/BMP-Audio Supported WAV/WMA/MP3-Video Supported MPEG-4/ H.264
Speaker	High Quality loudspeakers for superior audio performance- Audio Ports: 16 bit PCM 44.1KHz
Scanner capability	Omni Directional Laser Scanner: High Speed, hi sensitive and omni-directional scanning. Reading of fragmented bar codes. Visible laser diode 635 nm. Scan pattern : 6 direction scan field, 24 lines. Scan rate : 2000 scans/sec. Up to 300 mm @ UPC/EAN 100%, PCS 90% or 2D Imager: Visible Red light 650nm. Scan rate : 200scans/sec auto adaptive in linear mode, 56 images/sec auto adaptive 2D mode. Resolution: 752 Horizontal x 480 Vertical pixels, 256 gray levels
Operating System	DC 12V/1.5A power adapter or PoE
Connectivity of price checker	WLAN (optional for Linux OS) / Ethernet / POE (Power Over Ethernet). Others: NFC / Exit-Gate control function support
Power	+12 VDC ± 10% / 1.5A
Additional features	Operating temperature 0° to 40°C ( 32° to 104°F) Storage temperature -20°C to 60°C ( -4° to 140°F) Humidity 5% ~ 95% RH (non-condensing
