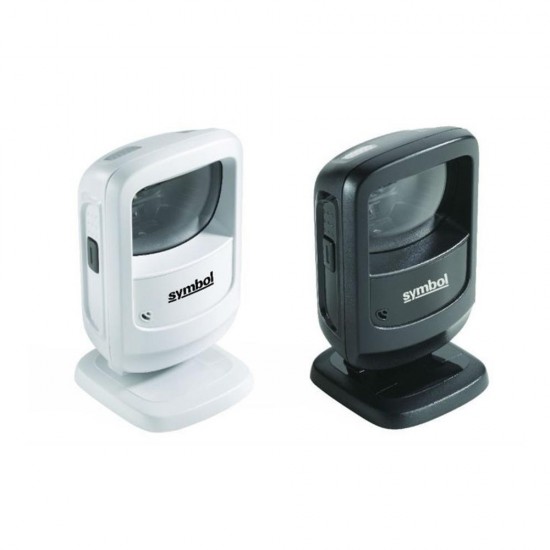

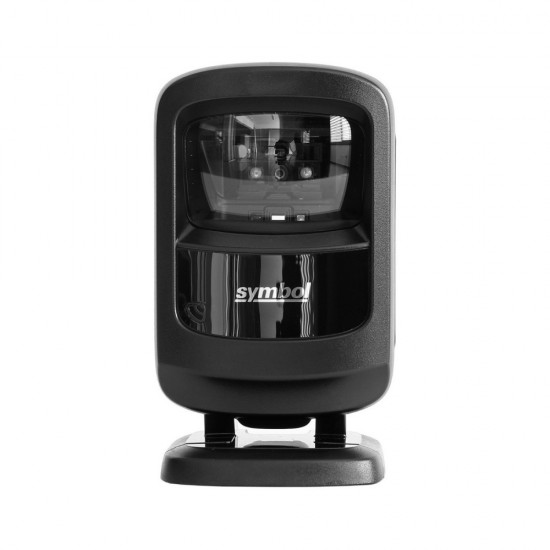

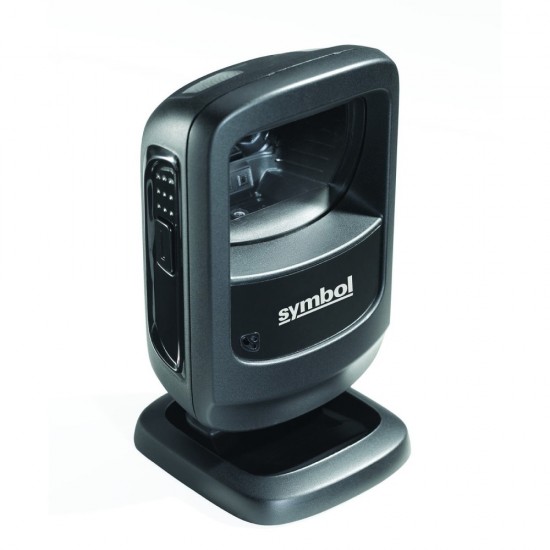

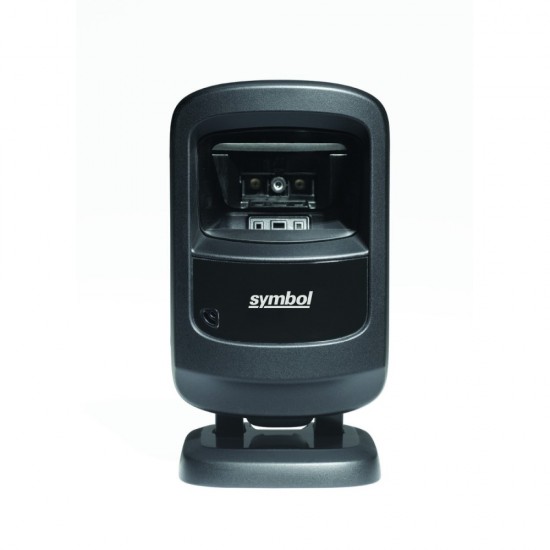

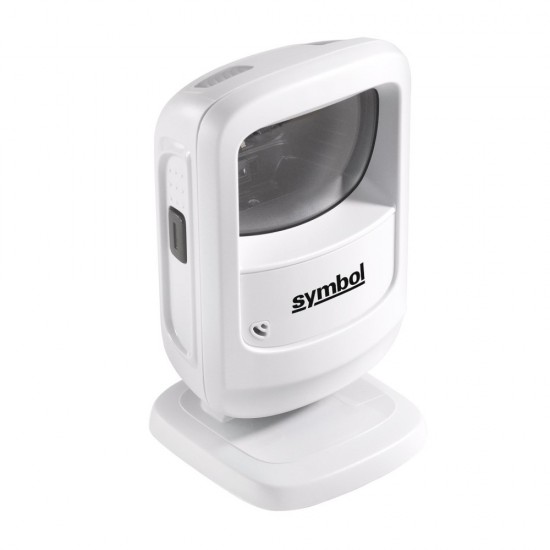

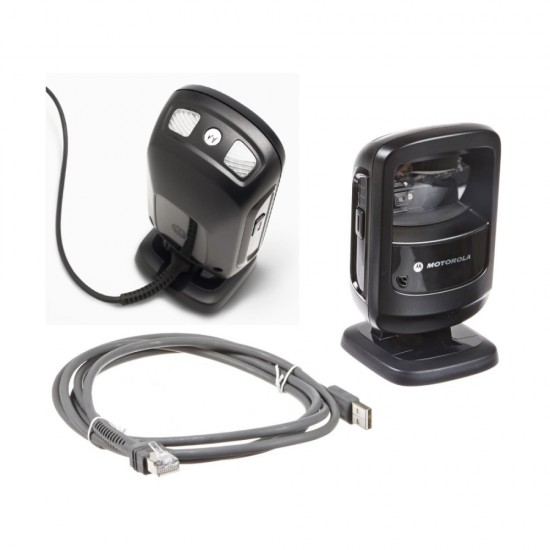

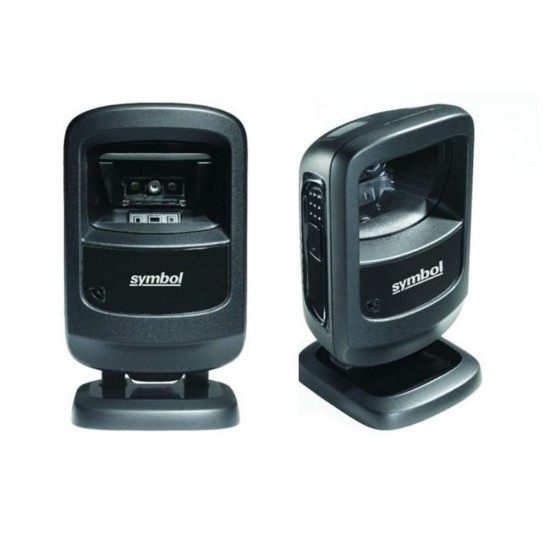

Scanner Zebra DS9208 1D/2D

Whether you need a barcode scanner that can be used on paper labels or mobile barcodes on the screen of a mobile phone, with the Zebra DS9208, you’ll be ready. You get the versatility to scan any 1D or 2D barcode from the printed labels in retail that identify product and pricing at the register to mobile coupons, mobile gift and loyalty cards, boarding passes and even theater tickets. And the DS9208 barcode scanner provides all the  features you need to keep your workers productive: industry-leading scanning speed; true point-and-shoot scanning simplicity,no need to align barcode and scanner; and hands-free and handheld flexibility. Scans 1D, 2D and PDF417 bar codes on paper, mobile phones and computer displays. Scan virtually any bar code on any medium supports the technology your customers are embracing — mobile bar codes. New small footprint. Most compact device in its class, fits in the most space constrained areas, yet offers flexibility of a much larger scanner the large high-mounted exit window enables scanning of even taller items. New sleek design. Perfect in the most design conscious environments. Handheld and hands-free modes. Dual mode functionality saves time, keeps lines moving and minimizes wait times; eliminates the need to lift heavy items, reducing the opportunity for injury. Picklist mode. Select and scan a single bar code from a bar code menu or “picklist”, ideal for items that are too small for bar code labels such as nuts and bolts in a hardware store to tiny cosmetic brushes. Driver’s license parsing (optional).



Specifications

Scanners
Reading mode 1D and 2D
Scanning range/ Βάθος πεδίου UPC/EAN – 10 mil (80%):0 – 8.5 in. (0 – 21.6 cm). PC/EAN – 13 mil (100%):0 – 10.5 in. (0 – 26.7 cm). PDF417 – 6.6 mil: 0 – 3.8 in. (0 – 9.6 cm). Datamatrix – 10 mil:0 – 4.7 in. (0 – 11.9 cm).
Scanning range/ Width of Field 46° Horizontal x 29.5° Vertical
Scan Rate Ρυθμός σάρωσης 90 in./2.3 m per second
Resolution Code 39 – 4 mil/ UPC – 7.8 mil (60%)/ PDF417 – 5 mil Datamatrix – 7.5 mil/ QR Code – 7.5 mil
Interfaces USB, RS-232, RS-485 (IBM 46xx Protocols), Keyboard Wedge.
Dimensions 5.512 in. H x 3.232 in. W x 3.150 in. D 14.0 cm H x 8.21 cm W x 8.0 cm D
Weight 9.5 oz./269 g
Ambient light Immune to natural and artificial ambient light (i.e. sunlight, incandescent, fluorescent,mercury vapor, sodium vapor)
Sealing IP50
Symbologies 1D: UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN-13 plus supplementals, ISBN (Bookland), ISSN, Coupon Code), Code 39 (Standard, Full ASCII, Trioptic,Code 32 (Italian Pharmacode), Code 128 (Standard, Full ASCII, UCC/EAN-128, ISBT-128 Concatenated), Code 93, Codabar/NW7, 2 of 5 (Interleaved 2 of 5, Discrete 2 of 5, IATA, Chinese 2 of 5, Matrix 2 of 5, Code 11), MSI Plessey, GS1 Data- Bar Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded,Expanded Stacked). PDF417 (and variants): PDF417 (Standard, Macro), MicroPDF417(Standard, Macro), Composite Codes (CC-A,CC-B, CC-C) 2D: TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse, Micro)
Additional features Operating Temp. 32° F to 104° F / 0° to 40° C. / Drop Specs Withstands multiple 5 ft./1.5 m drops to concrete. /Humidity 5% to 85% RH (non-condensing) / Images can be exported as Bitmap, JPEG or TIFF./ Image Quality: 120 PPI on a 4 x 6 in./10.2 x 15.2 cm document @ 4.7 in./11.9 cm
