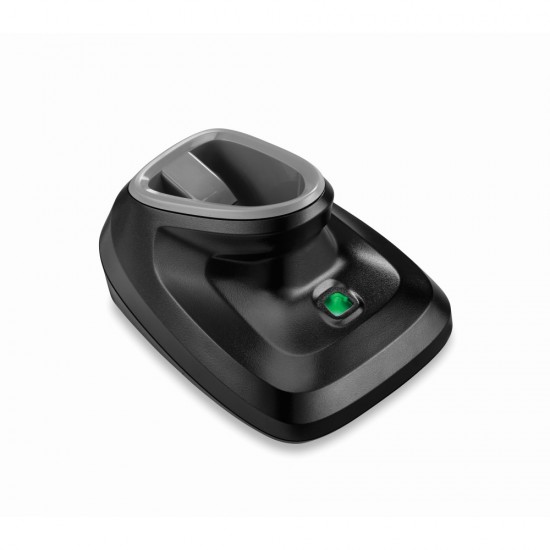

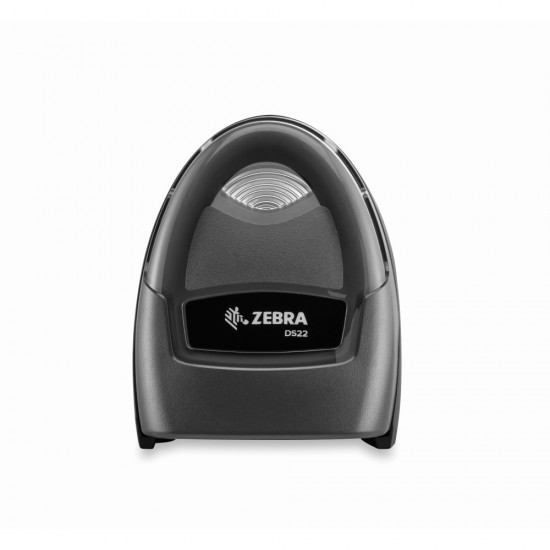

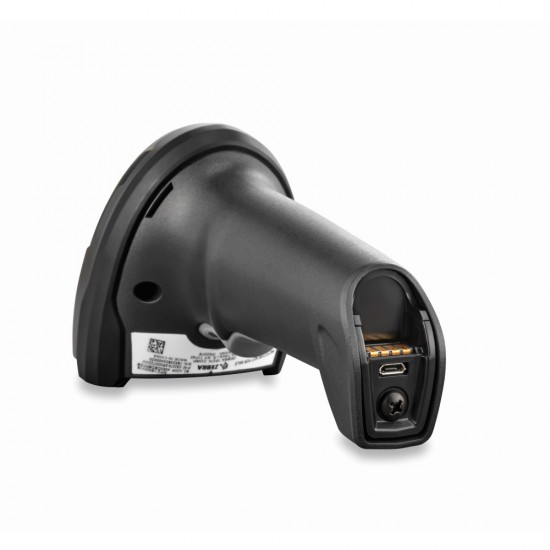

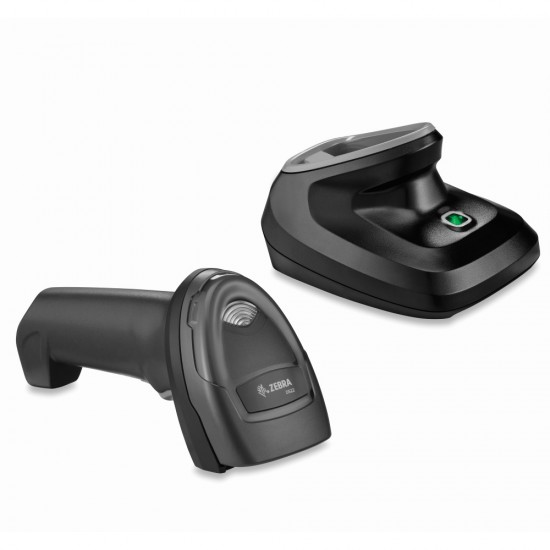

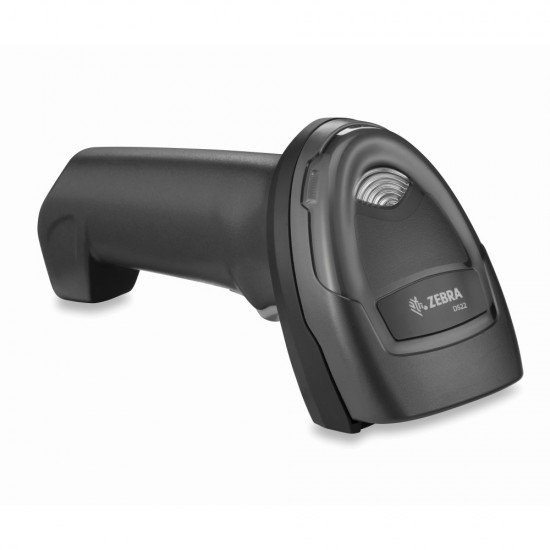

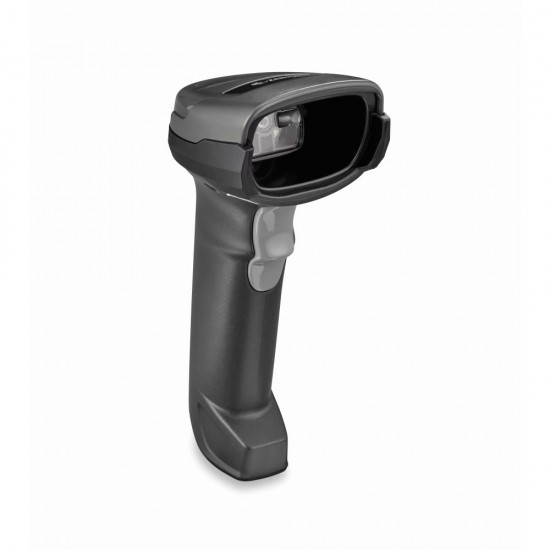

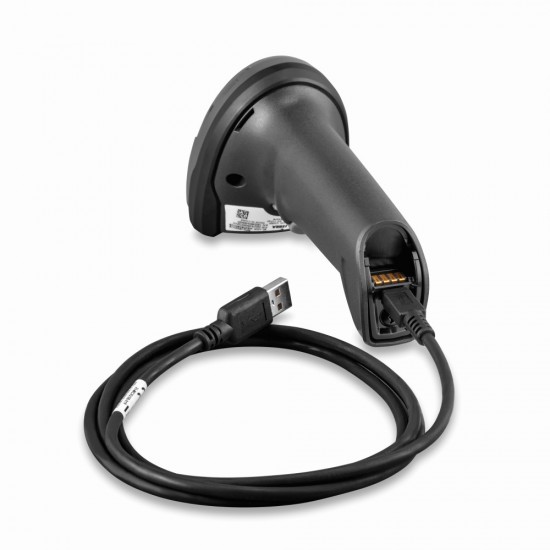

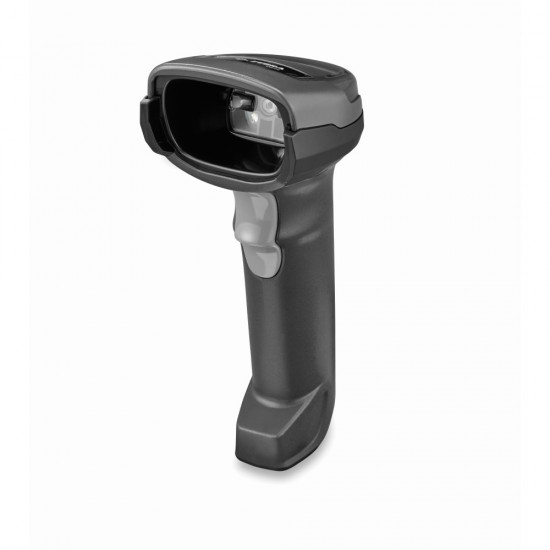

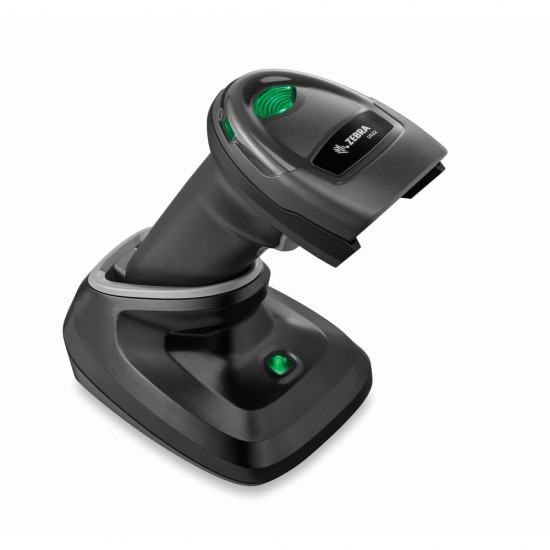

Scanner Zebra DS2278 2D cordless BT, multi IF USB

The DS2200 Series is so easy to use that workers won’t even need training. With Zebra’s PRZM software decode algorithms, omni-directional scanning, a patent-pending intuitive aimer, an unsurpassed scanning range and more, the DS2200 Series provides workers with best scanning with point and shoot simplicity, regardless of barcode condition.  The long-lasting battery in the cordless DS2278 will likely never need to be replaced during the lifecycle of the scanner, eliminating the need to purchase and manage a battery pool. And with Zebra’s proprietary Wi-Fi Friendly Mode, you can confidently deploy DS2278 cordless models without worrying about interference with your wireless local area network (WLAN).

Specifications

Scanners
Reading mode 1D and 2D
Scanning range/ Βάθος πεδίου 32.8° H x 24.8° V Nominal
Scanning range/ Width of Field +/- 65°; +/- 65°; 0-360
Scan Rate Ρυθμός σάρωσης Motion Tolerance (Handheld): Up to 5 in./13 cm. per second for 13 mil UPC
Resolution Minimum Element Resolution: Code 39 - 4.0 mil, Code 128 - 4.0 mil, Data Matrix - 6.0 mil, QR Code - 6.7 mil.
Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485.
Dimensions 6.5 in. H x 2.6 in. W x 3.5 in. D/ 17.5 cm H x 6.6 cm W x 9.0 cm D
Weight 7.5 oz. / 214 g
Ambient light Ambient Light Immunity: 107,600 Lux. Light Source Aiming Pattern: Linear 624nm Amber LED. Illumination (2) 645nm Super-Red LEDs
Sealing IP52
Symbologies 1D: Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). 2D: PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes.
Additional features Operating Temp. 32° F to 122° F / 0° to 50° C. / Drop Specs Withstands multiple 5 ft./1.5 m drops to concrete. /Humidity 5% to 95% RH (non-condensing) /Image Sensor: 640 x 480 pixels. Battery Capacity/ Battery Type: 2,400 mAh Li-Ion Battery. Scans Per Battery Charge2: 110,000 scans at 60 scans per minute or 50,000 scans at 10 scans per minute. Operating Time Per Full Charge2: 84.0 Hours
