Voyager 9520 1D Scanner

Voyager 9520 1D Scanner

Downloads

File	Size	Download
sps-ppr-voyager-9520-barcode-scanner-datasheet-en.pdf	367.13KB	Download

Description

Scanner MS 9520 Voyager 1D

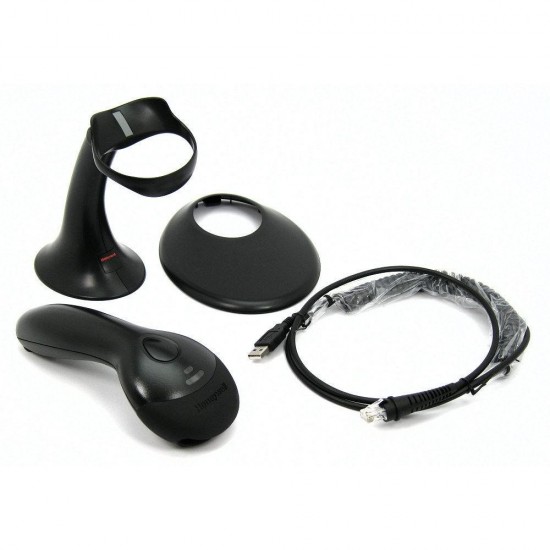

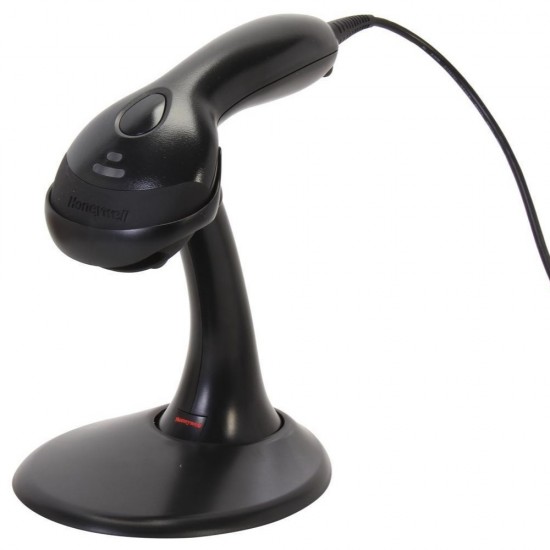

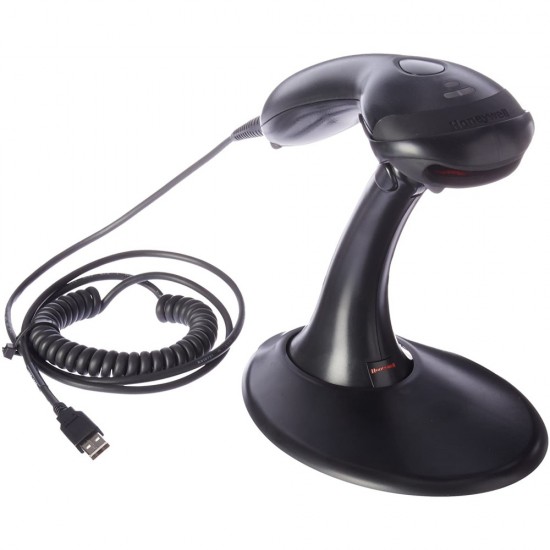

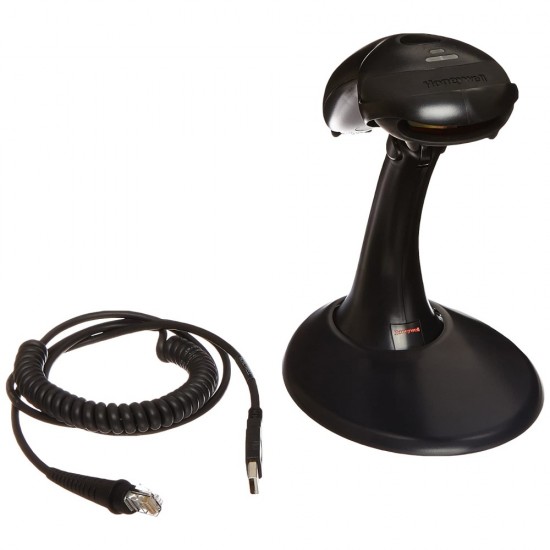

The Voyager 9520 and VoyagerCG 9540 handheld, single-line laser scanners offer aggressive scanning of all standard 1D barcodes. Uniting form with function, the Voyager series has become the industry benchmark for value and performance. These sleek scanners feature patented, automatic infrared activation and decode all standard 1D barcodes, including GS1 DataBar™ (formerly known as RSS codes). The VoyagerCG 9540 also includes patented CodeGate™ technology, which allows you to easily target the desired barcode and complete data transmission with the press of a single button. For presentation scanning, Honeywell offers a stand with automatic in-stand detection technology.

HONEYWELL

Specifications

Scanners
Reading mode	1D bar codes, including GS1 DataBarTM (formerly known as RSS codes).
Scanning range/ Βάθος πεδίου	Scan Angle Horizontal: 50°
Scanning range/ Width of Field	Pitch, Skew 68°, 52°
Scan Rate Ρυθμός σάρωσης	72 scan lines per second

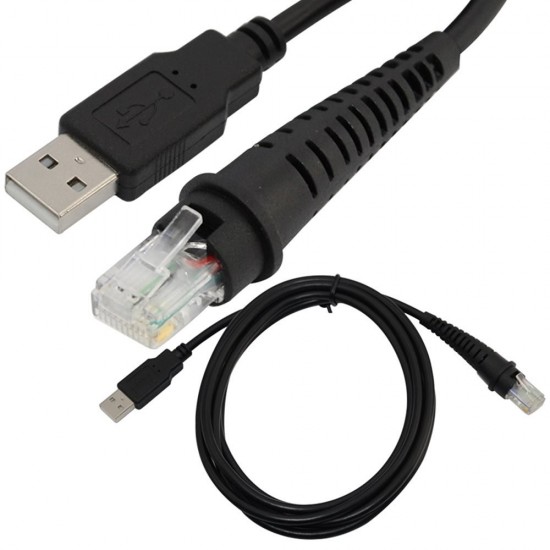

Interfaces	USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
Dimensions	198 x 78 x 56 mm (7.8˝ x 3.1˝ x 2.2˝)
Weight	149 g (5.3 oz)
Ambient light	4842 Lux
Sealing	Sealed to resist airborne particulate contaminants
Symbologies	All standard 1D bar codes, including GS1 DataBarTM (formerly known as RSS codes)
Additional features	Input Voltage 5 VDC + 0.25 V/ Operating Power 825 mW (165 mA @ 5 V)/ Standby Power 600 mW (120 mA @ 5 V)/ Operating Temperature 0°C to 40°C (32°F to 104°F)/ Storage Temperature -40°C to 60°C (-40°F to 140°F)/ Humidity 5% to 95% relative humidity, non-condensing/ Drop Designed to withstand 1.5 m (5’) drops/ Warranty 5 year factory warranty
