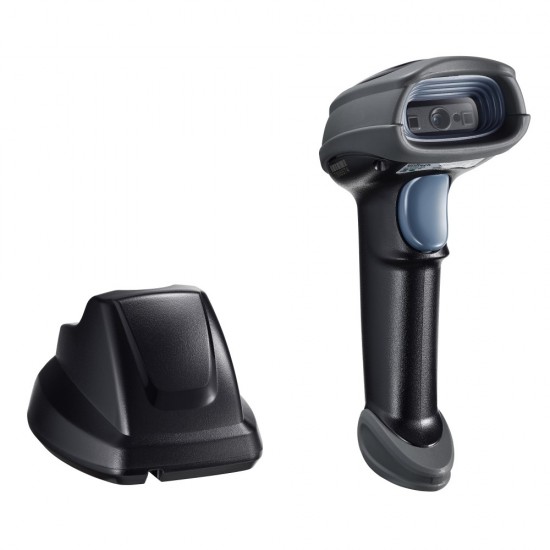

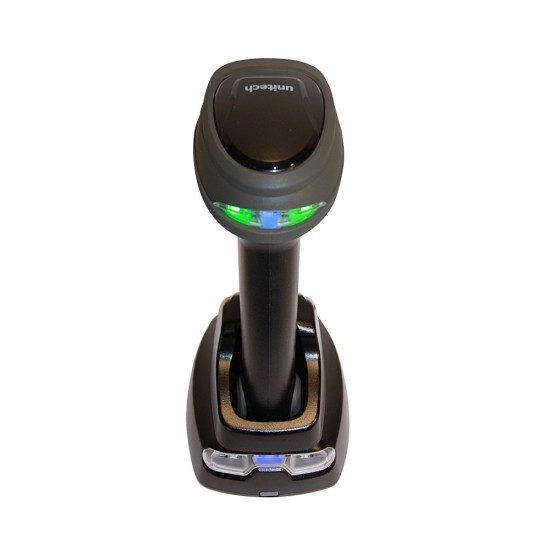

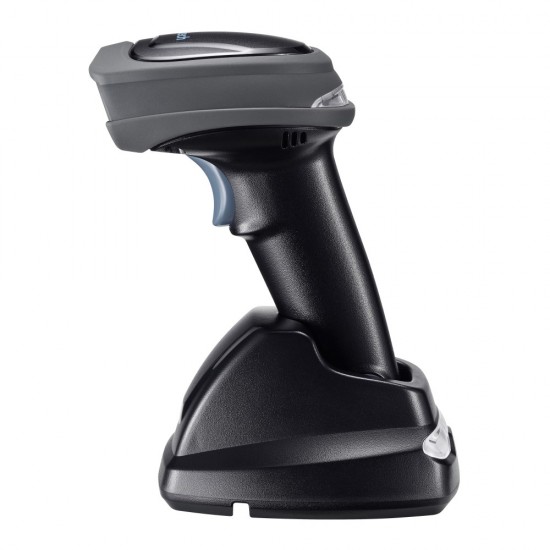

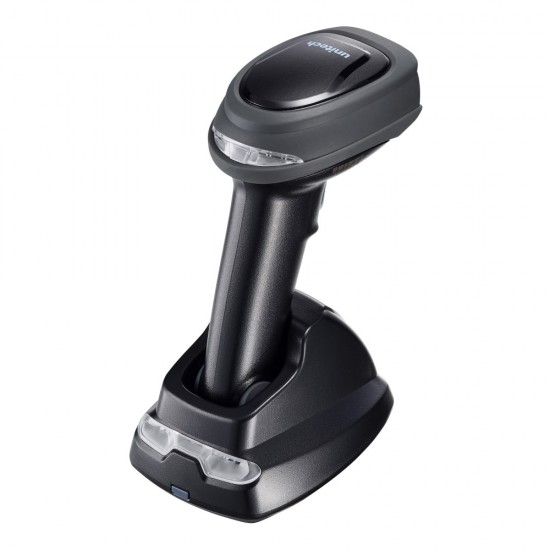

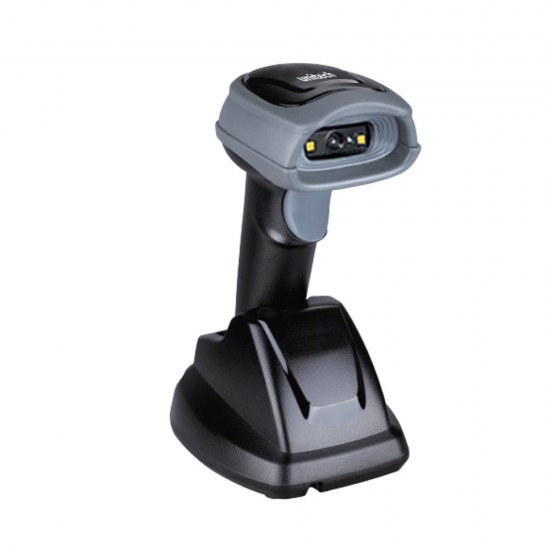

Scanner Unitech MS351 1D

MS351 fits into any environment, whether it is retail, warehouse or even a hospital. No need to worry about missing a beat in a noisy environment thanks to the vibration feedback the scanner gives. Next to this, the high transmission speed thanks to Bluetooth 4.2 connectivity; makes for quicker scanning. The MS351 also acts in an application where the requirement for 1D scanning is a better solution. For example, to read the barcode labels which are very closely placed next to each other such as multiple barcodes on one price tag, inside the smart phone, at home appliance and so on.


Specifications

Scanners
Reading mode 1D Laser
Scanning range/ Βάθος πεδίου Horizontal ± 42° / Vertical ± 26.5°
Scanning range/ Width of Field 3 mil Code 39 (3 chars): 20 - 70 mm/ 5 mil Code 39 (3 chars): 0 - 120 mm/ 10 mil Code 39 (3 chars): 0 - 280 mm/ 13 mil UPC-E (6 chars): 0 - 350 mm/ 20 mil Code 39 (3 chars): 25 - 480 mm/ 30 mil Code 39 (2 chars): 15 - 650 mm.
Scan Rate Ρυθμός σάρωσης 200 scans per second
Resolution 3 mil
Interfaces Bluetooth 4.2
Dimensions 90.2mm x 70mm x 180mm
Weight 207g (Scanner only)
Ambient light 0~100,000 LUX
Symbologies UPC-A, UPC-E, UPC-E1, EAN-13, EAN-8, ISBN (Bookland EAN), ISSN, Code 39, Code 39 full ASCII, Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Codabar (NW7), Code 128, UCC/EAN 128, ISBT 128, Code 93, Code 11 (USD-8), MSI/Plessey, UK/Plessey, China Post, China Finance, GS1 DataBar (formerly RSS) variants

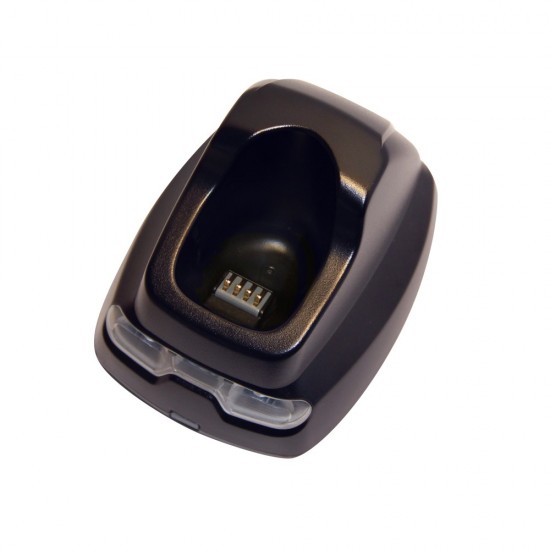

Additional features Scanner: LED, Beeper, Vibrator/ Cradle: LED/Scanning angle:Skew: ±60° / Pitch: ±65° / Roll: 42°/ Battery: 2600 mAh Lithium-ion battery/ Operating voltage: DC 5 ± 0.25 V/ Current scanner: Working: 150 mA / Standby: 4 mA/ Current cradle: Working: 60 mA / Charging: max. 500 mA/ Charge Time: 6 hours/ Standby Time: 7 days/ Operating Time: 36 hours (1 scan per 5 seconds)/ Operating temperature: 0°C to 50°C/ Storage temperature: -40°C to 60°C/ Humidity: 5%-95% non-condensing/ Drop resistance: Multiple 1.5 m (4.9 ft.) drops to concrete/ IP rate: IP51.
