SG700BT IP42 Imager Scanner

SG700BT IP42 Imager Scanner

Downloads

File	Size	Download
Datasheet-SG700-SG700BT (1).pdf	750.87KB	Download

Description

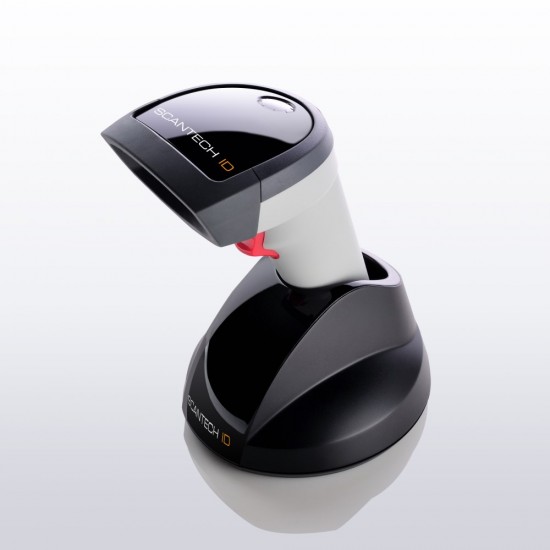

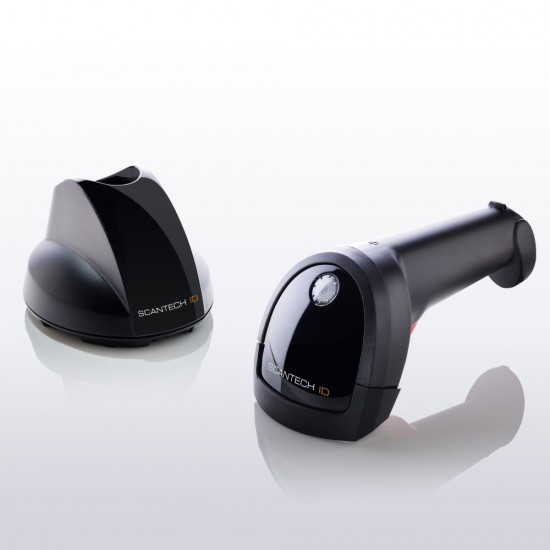

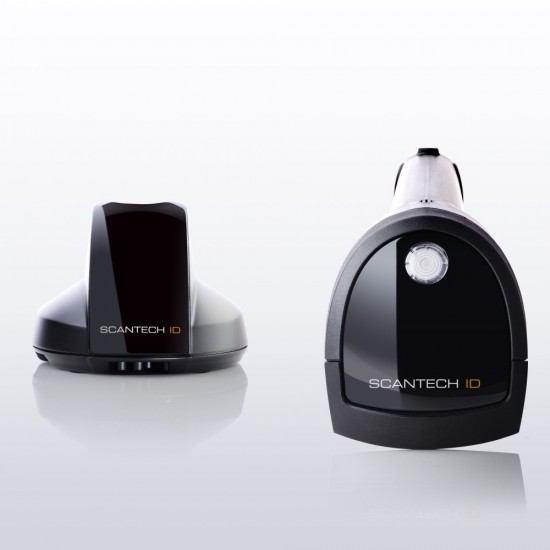

Scanner Scantech SG700BT IP42 Imager

SG700BT is a rugged gun-type linear imager barcode scanner which is designed especially for retail, logistic and warehousing management market. With friendly functions and replaceable multi-interface cable options that makes it more easily to be operated and accommodated to user environment. Modern design with rugged IP42 sealing protection casing. Wireless supports Class1 Bluetooth V2.1 EDR technology with transmission range up to 100 m/328.08 ft. in line of sight. Reaches up to 500mm reading depth of field for symbologies including the majority of 1D codes plus GS1 DataBar™ linear codes. Support major 1D codes, GS1 Databar and Databar Stacked Codes. Automatic detect reading mode. Reading distance up to 500mm (20mil/0.5mm@code39 pcs90%). Smart detect reading speed up to 500 scans per second. 4 in 1 Combo interface that changes interface by replacing cable.

Bluetooth supports HID and SPP profiles.

SCANTECH

Specifications

Scanners
Reading mode	1D
Scanning range/ Βάθος πεδίου	Up to 500mm@20mil/0.5mm, PCS90%
Scanning range/ Width of Field	Code 39,10mil/0.25mm, PCS 90%
Scan Rate Ρυθμός σάρωσης	500 scans per second
Resolution	4mil/0.1mm@PCS90%
Interfaces	RS232, USB (HID, Virtual COM), KBW
Dimensions	75 x 71.73 x 177.96 mm
Weight	Approx. 214.6g( incl. Battery)
Ambient light	100,000 Lux Max.
Sealing	IP42
Symbologies	All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code32 / Italian Pharmacy, Code 128, CODABAR/NW7, Interleave 25, Industrial 25, Matrix 25, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, Code 26, LCD25, GS1 DataBar
Additional features	Operating Temperature 0°C to 50°C (32°F to 122°F)/ Storage Temperature-20°C to 70°C (-4°F to 158°F)/ Relative Humidity 20% to 95% (Non-condensing)/ Voltage Battery Li-Ion 3.7V/2600 mAh/ Charge Time Approx. 5 hours/ Reads per Charge 50,000 Times/ Operation Consumption 200mA. Bluetooth V2.1 EDR2.402GHz ~ 2.480GHz up to 100m /328.08 ft. line of sight Class 1 (under 20dBm).
