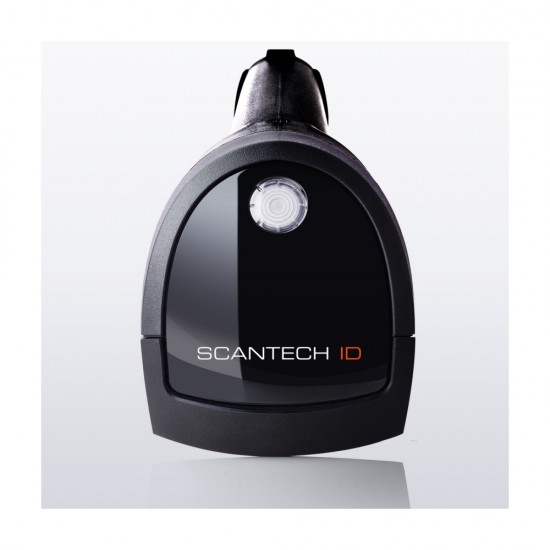

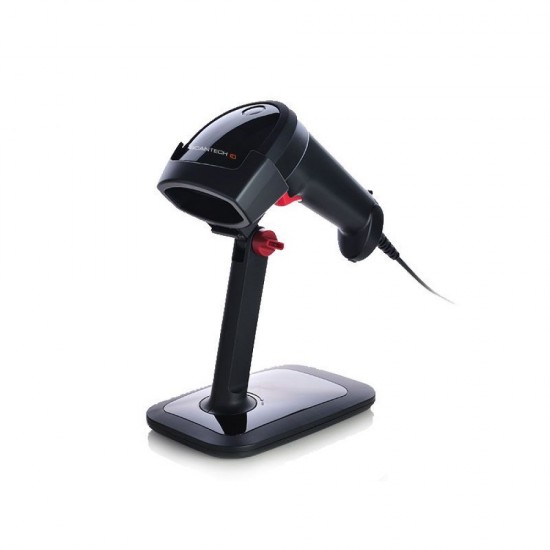

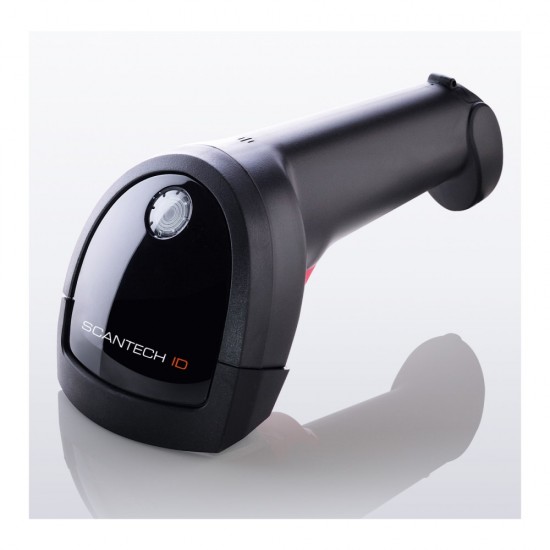

Scanner Scantech SG700 IP54 Imager

SG700 is a brand new rugged gun-type linear imager bar code scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by the customers to accommodate itself to user environment. SG700 has most modern design with rugged casing supports IP54 sealing protection, with its auto-shuttle-emulation-like smart detection, offers superior decoding performance with reading speed up to 500 scans per second and up to 500mm reading depth for the majority of 1D bar codes and GS1 DataBar™ codes. A stand option can be ordered to facilitate hand-free reading options. With its automatical wake-up reading as it senses a bar code moving in front of it, can extend its lifespan. In short, SG700 provides customer with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail and logistic environment.

Specifications

Scanners
Reading mode 1D
Scanning range/ Βάθος πεδίου Up to 500mm@20mil/0.5mm, PCS90%
Scanning range/ Width of Field Code 39,10mil/0.25mm, PCS 90%
Scan Rate Ρυθμός σάρωσης 500 scans per second
Resolution 4mil/0.1mm@PCS90%
Interfaces RS232, USB (HID, Virtual COM), KBW
Dimensions 75 x 71.73 x 177.96 mm
Weight Approx. 214.6g( incl. Battery)
Ambient light 100,000 Lux Max.
Sealing IP54
Symbologies All UPC/EAN/JAN, EAN128 Code, Code 39, Code 39 Full ASCII, Code32 / Italian Pharmacy, Code 128, CODABAR/NW7, Interleave 25, Industrial 25, Matrix 25, MSI/PLESSEY, Telepen, Code 93, Code 11, China Postage, Code 26, LCD25, GS1 DataBar
Additional features Operating Temperature 0°C to 50°C (32°F to 122°F)/ Storage Temperature-20°C to 70°C (-4°F to 158°F)/ Relative Humidity 20% to 95% (Non-condensing)/ Approx. 5 hours/ Reads per Charge 50,000 Times/ Voltage DC +5V ±5%. Operation Consumption 150mA.
