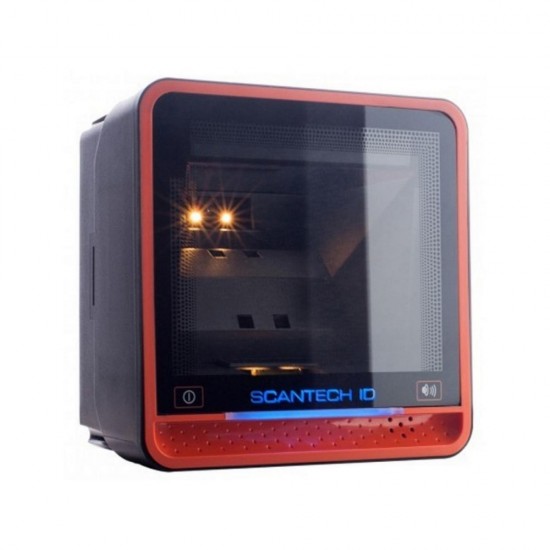

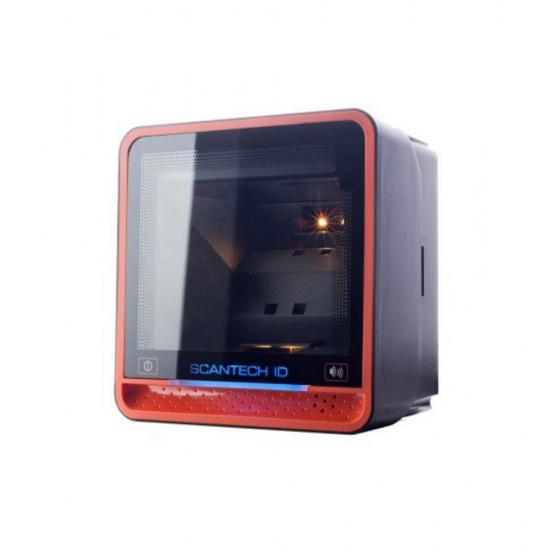

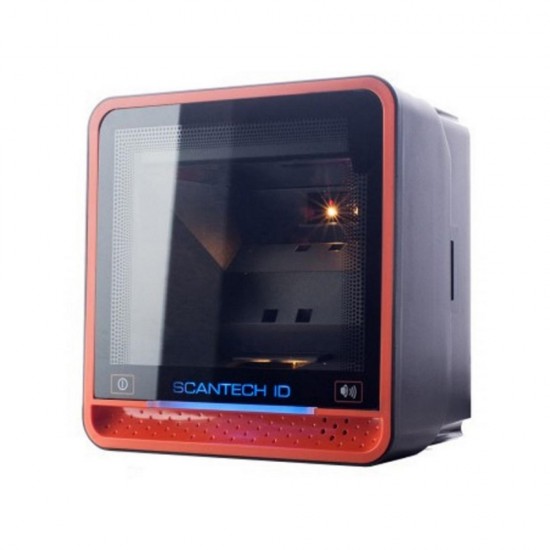

Scanner Scantech NOVA N4080 1D/2D

The N0VA N-4080i is a high performance, omni-directional area imager bar code scanner. It uses digital imaging technology to provide intuitive and fast reading of 1D and 2D bar codes as well as supporting more advanced features like image capture deactivation. It is designed for various OEM solutions, on-counter reading options. It supports up to 500mm reading depth of 1D and 2D barcode, its scan rate is up to 120 scans per second in linear emulation and 60 images per second in 2D area mode. Based on CMOS technology for optimal image sensitivity and dynamic range, the N-4080i features scanning speeds faster than traditional 2D imagers. NOVA N-4080i is a high performance area imager scanner, provides customers with the most cost-effective solution in the market and perfectly suitable and definitely the best choice for any retail and logistic environment.

Specifications

Scanners
Reading mode 1D and 2D
Scanning range/ Βάθος πεδίου Up to 300mm@20mil/0.5mm, PCS90%, Code 39
Scanning range/ Width of Field 40° Horizontal, 25° Vertical
Scan Rate Ρυθμός σάρωσης 60 λήψεις/ δευτερόλεπτο
Resolution 752(H) x 480(V) pixels
Interfaces RS-232, USB (HID or Virtual COM.)
Dimensions 152.07 mm x 152.02 mm x 90.22 mm
Weight 572g
Ambient light 100,000 Lux
Sealing IP42
Symbologies 1D Symbologies: EAN/UPC,UCC/EAN128, ISBN, ISBT, Code 11, Code 39, Code 93/93i, Code 128, Interleaved, Matrix, Instustrial, Standard 2 of 5, Codabar, MSI, Plessey, Telepen, Postal codes, GS1 DataBar. 2D Symbologies: Data Matrix, Data Matrix Inverse, PDF417, Micro PDF 417, Maxicode, QR code, QR code Inverse, Aztec (& Inverse), EAN. UCC composite, MicroQR code
Additional features Supply Voltage DC Adaptor(+5V), USB Power/ Stand by: 230 mA/ Operation: 460 mA/ Operating Temp. (32℉ to 122℉)/ Storage Temp. 4℉ to 158℉/ Relative Humidity 20% to 95% (Non-condensing)
