NOVA N 4070 Scanner

NOVA N 4070 Scanner

Downloads

File	Size	Download
Datasheet-N-4070.pdf	2.45MB	Download

Description

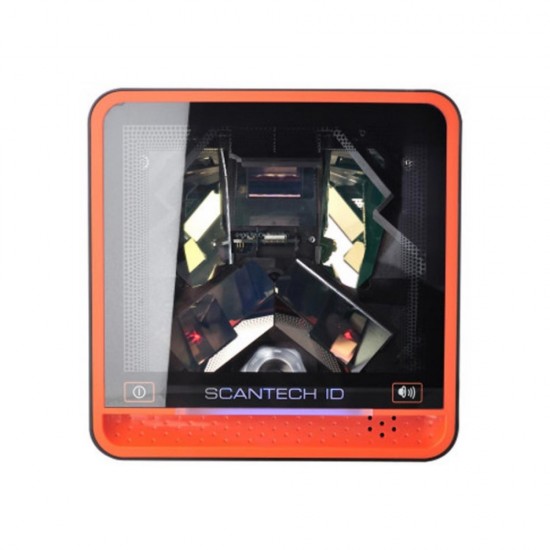

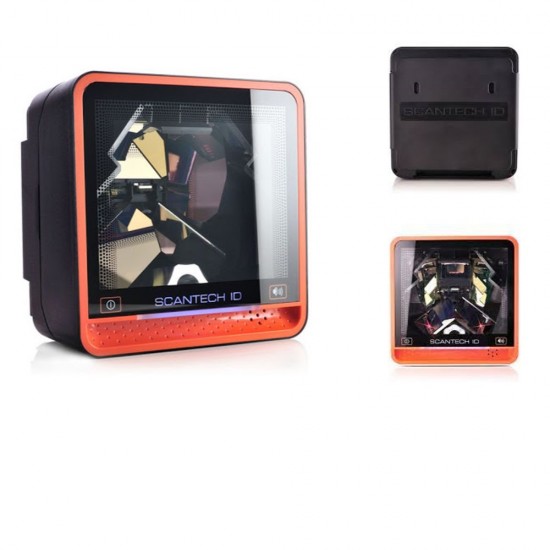

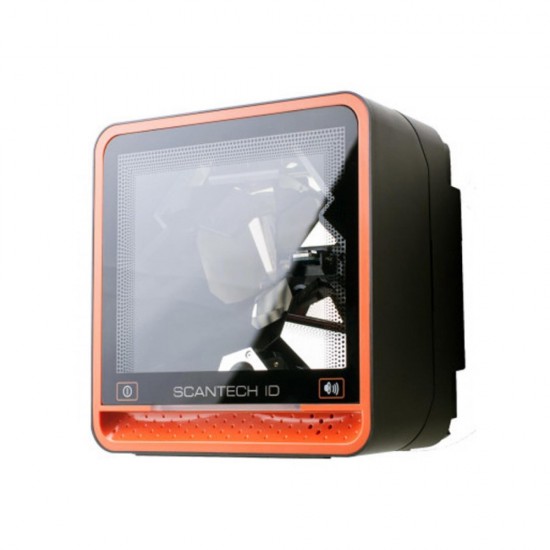

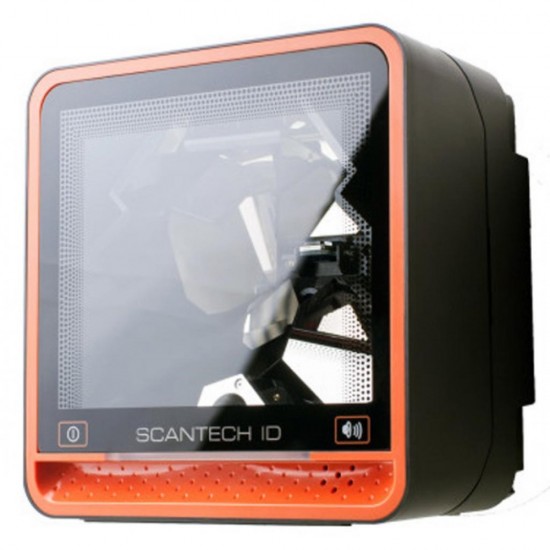

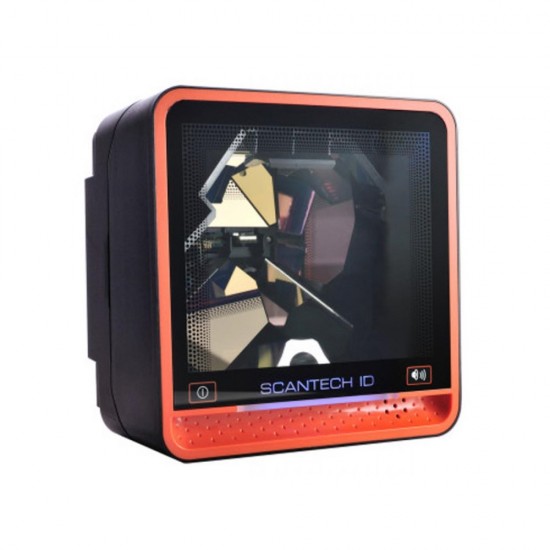

Scanner Scantech NOVA N4070 1D

NOVA N-4070 is an excellent optical design experience and with a new back-end design, to create an outstanding product performance and reliability. This scanner features high inerrability, flexibility, scanning, and decoding capability. High scan performance with 30 scan lines and 3,000 scans per second scan speed. STAR code reconstruction decoding technology allows easy reading of truncated, damaged and substandard bar codes. Automatic sleep & wake-up function saves power and improves life time. Touch control sensors for volume adjustment. Multiple interface solution supports by automatic interface detection. Built in RF antenna to be compatible to EAS functionality.

SCANTECH

Specifications

Scanners
Reading mode	1D
Scanning range/ Βάθος πεδίου	up to 250 mm＠ EAN 0.33mm/ 13mil PCS 90％
Scanning range/ Width of Field	Visible laser diode (650 nm). Scan pattern 5 direction scan field, 30 lines scan pattern
Scan Rate Ρυθμός σάρωσης	3000 scans / second
Interfaces	RS-232 / USB / Powered-USB / Keyboard Wedge (Optional)
Dimensions	90.22 x 152.02 x 152.07mm
Weight	630 g ~ 720 g
Ambient light	7,000 Lux
Symbologies	Automatically discriminates all standard 1D bar codes include GS1 databar family, Omnidirectional, Stacked Omnidirectional, Expanded, Expanded Stacked, Truncated and Limited.
Additional features	DC input to scanner 12V DC, 500mA. Power Supply Voltage 6 Watt max @ 12V DC. Operating Temperature 0℃~ 50℃(32℉~122℉). Storage Temperature -20℃~70℃(-4.6℉~158℉). Humidity 5% ~ 95% RH (non-condensing)
