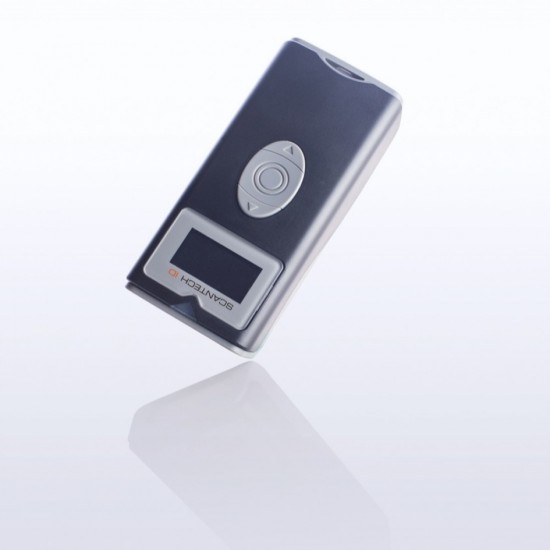

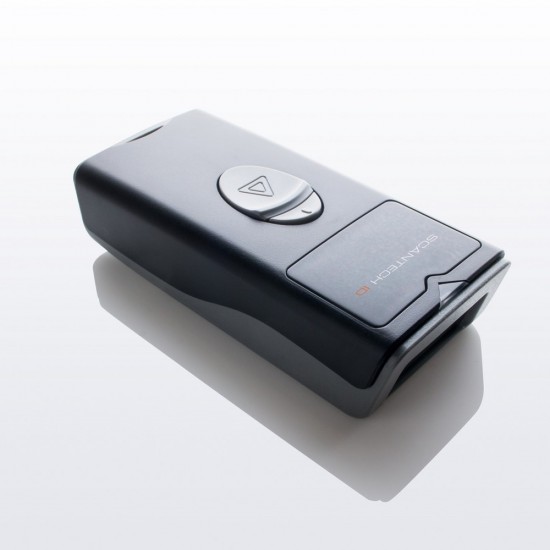

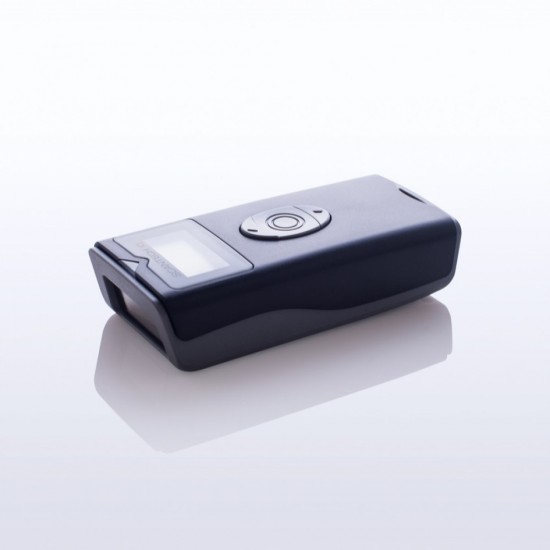

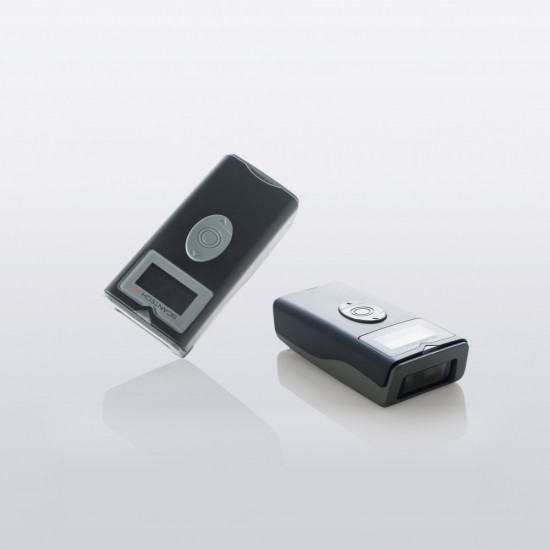

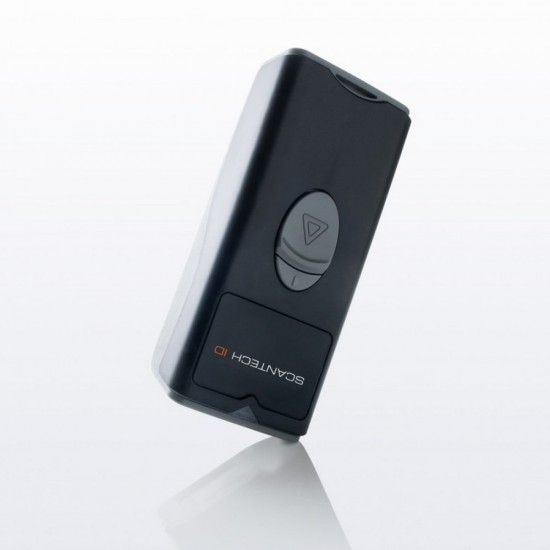

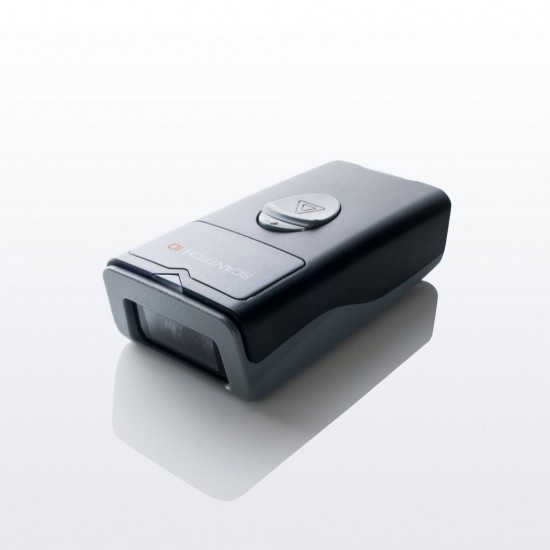

Scanner Scantech MB300

This barcode scanner is a brand new compact design which is especially for the application in ticketing, stocktaking, catering or logistic market. With its tiny and lightweight design, it can be easily carried in pocket or along with for mobility application. As the tiny compact body, the housing is designed with IP54 water and dust protection rating, and to be 1.5m dropping resistance. With its 0.96" display and 3 buttons, customers can easily operate and configure it. In addition, it can easily connect to the most mobile devices via Bluetooth technology on android and iOS system. The scanned data can be immediately transferred to the corresponding application programs or stored in the built-in memory. The scanner has built-in a large memory size of 8M bytes for user data storage that can save over 100,000 items of 50 bytes barcode data. The scanner absolutely provides plenty of memory requirements. With several high performance bar code scanning modules as option, linear imager CCD (MB300C), laser ( MB300L) or area imager 2D (MB300I), the scanning module delivers excellent decoding performance and can read most 1D, GS1 databar codes or 2D barcodes. The scanner is absolutely a high performance portable barcode scanner that provides the most cost-effective solutions in the market. It is perfectly suitable and definitely the best choice for the application with mobile devices.

Specifications

Scanners
Reading mode 1D Scanner - CCD
Scan Rate Ρυθμός σάρωσης 500 scans/sec
Interfaces Wired Micro USB V2.0 ( for Power charge and Batch data transmission). Wireless Bluetooth 2.1 + EDR
Dimensions 41.8mm x 89.9mm x 23.6mm
Weight 70 g (With Battery & OLED Panel)
Ambient light 50,000 Lux (Max) @ Code 39, PCS 90%(20 mil)
Sealing IP54
Symbologies All UPC/EAN/JAN,EAN128 Code, Code 39, Code 30 Full ASCII , Code32/ltalian Pharmacy, Code 128, CODABAR/NW7, Interleave 25, Industrial 25, Matrix 25, Matrix 25, MSI.PLESSEY, Telepen, Code 93, Code 11, China Postage, Code 26, LCD25, GS1 DataBar Omnidirectional & Stacked, GS1 DataBar Limited, GS1 DataBar Expanded & Stacked
Additional features Operating Temp. 0℃ to 50 ℃. Storage Temp. -20 ℃ to 70 ℃. Power Source Battery Lithium-Polymer (3.7V DC) Micro Processer 32-bit. Drop Spec 1.5m (5 feet).
