LG610 Laser Scanner

LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner
LG610 Laser Scanner

Downloads

File Size Download
lg-610-lg610.pdf 966.7KB Download

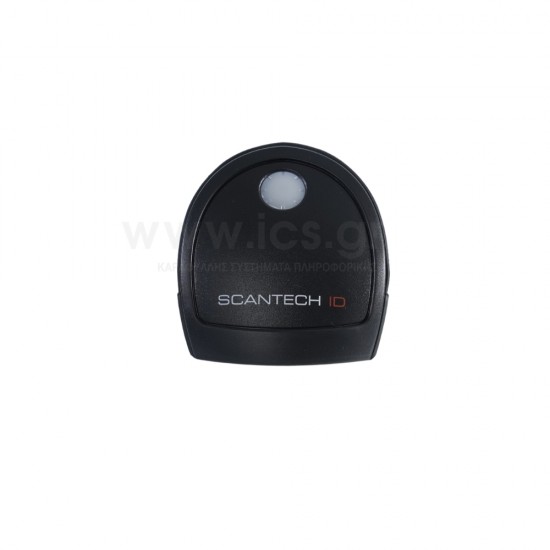

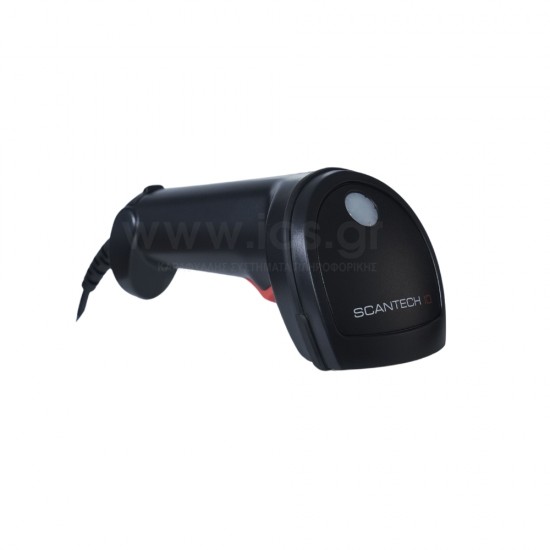

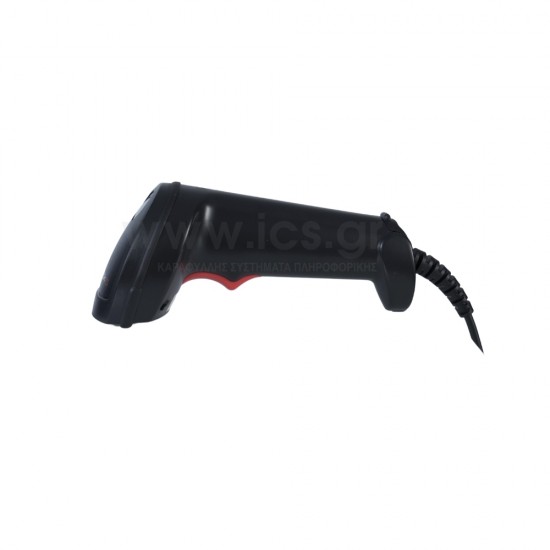

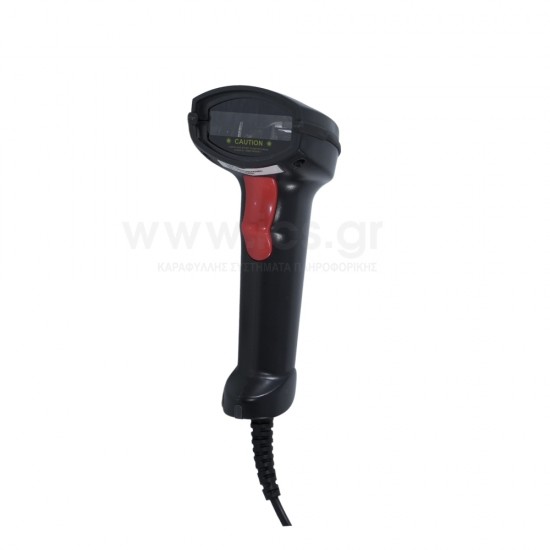

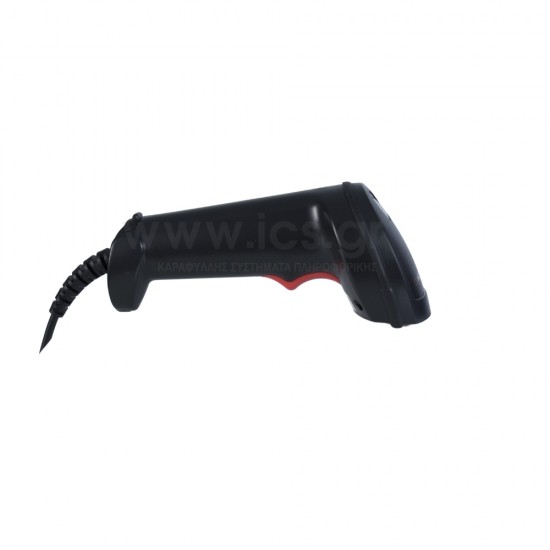

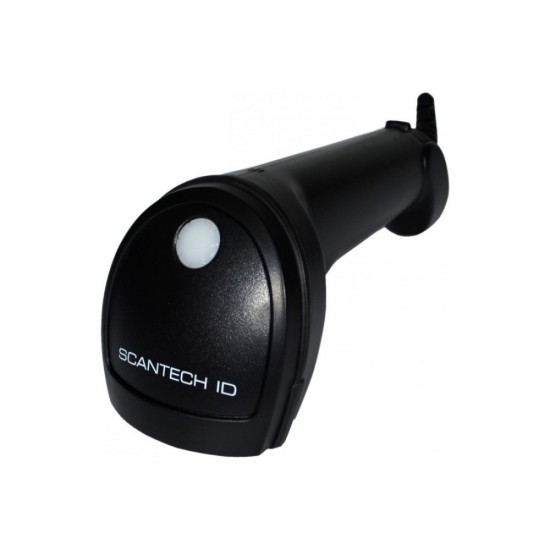

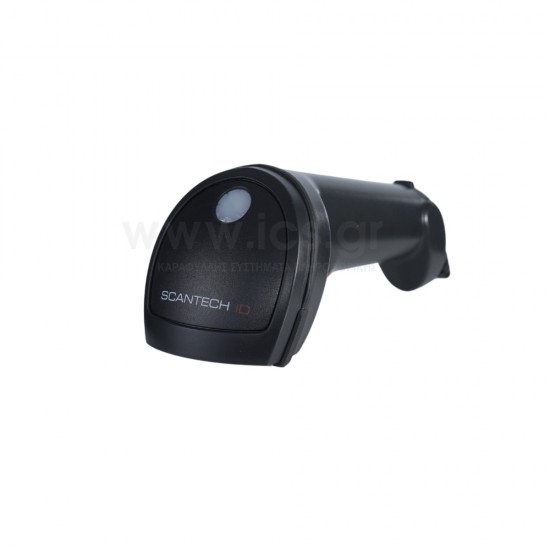

Laser Scanner Scantech LG610

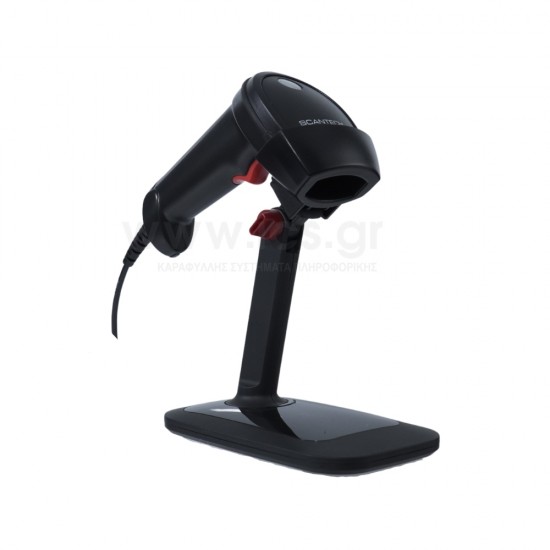

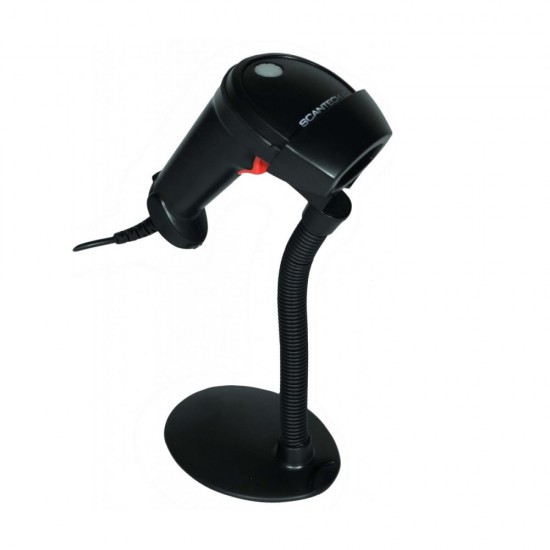

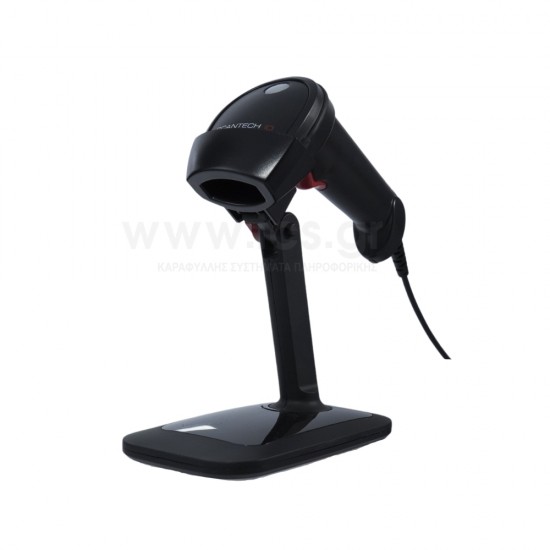

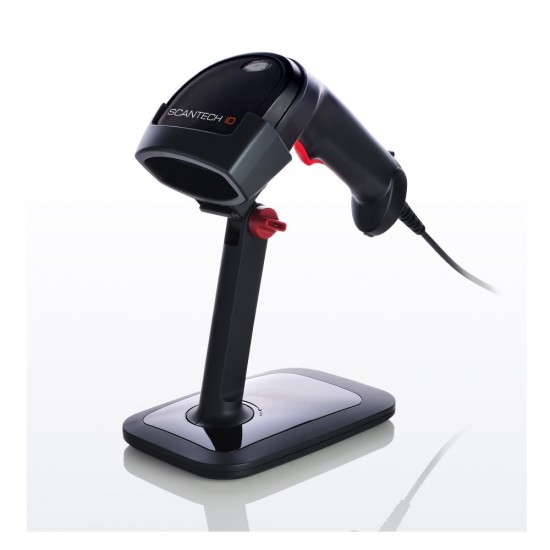

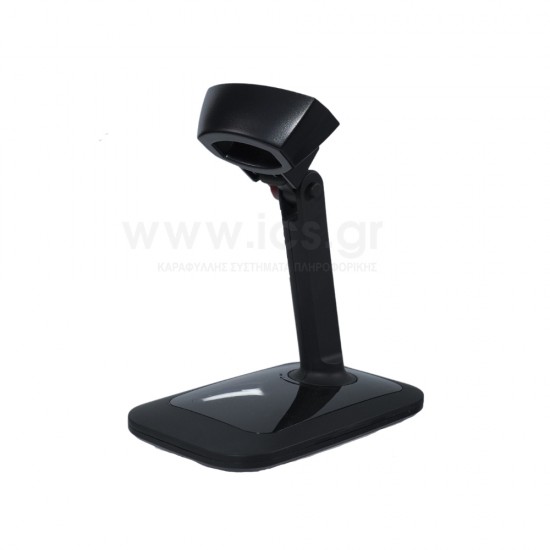

LG610 has the most modern design with casing ,supports IP42 sealing protection and reading range up to 300 mm for the majority of 1D bar codes and GS1 DataBar™ codes. With its built-in automatic sense to switch on reading can extend its lifespan. A stand option can be ordered to facilitate hand-free reading options. LG 610/LG 610BT is abrand new general purpose gun-type laser bar code scanner which is designed especially for retail, logistic market. We include friendly functions and with replace able multiple interface cable options that make it more easily to be operated by customers to accommodate it to the user environment LG 610 has most modern design and supports reading range up to 300mm for the majority of 1D bar codes and GS1DataBar™ codes.As tand option canbe order edto facilitate hand-free reading options. LG 610BT's scanner and cradle designed with Class1Bluetooth V 2.1EDR technology, with transmission range up to 100m/ 328.08ft.in line of open sight,support both SPP and HID profiles can easily pai rup with other Bluetooth V2.1compatible mobile equipments or systems.In short, LG 610/LG 610BT is a high performance gun-type laser scanner, which provides customers witht he most cost-effective solution int he market, perfectly suitableanddefinitely the bestchoicefor application in any retail and logistic environment.

Specifications

Scanners
Reading mode 1D
Scanning range/ Βάθος πεδίου Up to 300 mm@20mil/0.5mm, PCS90%
Scanning range/ Width of Field Code 39, 10mil/0.25mm, PCS 90%
Scan Rate Ρυθμός σάρωσης 50 scans per second ± 10%
Resolution 4mil/0.1mm@ PCS90%
Interfaces Keyboard wedge/RS-232/USB (HID or virtual comport)
Dimensions 71.13 x 62.61 x 169.27 mm
Weight Approx. 123g/ 4.348oz (w/o Cable)
Ambient light Up to 5,000 Lux
Sealing IP42
Symbologies Automatically discriminates major standard 1D bar codes, include GS1 databar - Omnidirectional, Expanded and Limited codes.
Additional features Operating Temperature 0°C to 50°C (32°F to 122°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Relative Humidity 20% to 95% (Non-condensing) Voltage DC +5V ± 5%/ Operation Consumption DC +5V ± 5%/ Voltage Battery Li-Ion 3.7V/2600 mAh Charge Time Approx. 5 hours/ Reads per Charge 50,000 Times/ Operation Consumption 170mA
