IG820 Imager Scanner

Name: IG820 Imager Scanner
Brand: SCANTECH
Price: 1.00 EUR
Availability: InStock

IG820 Imager Scanner

Downloads

File	Size	Download
Datasheet-IG820.pdf	1.12MB	Download
Specification-IG820.pdf	1.18MB	Download

Description

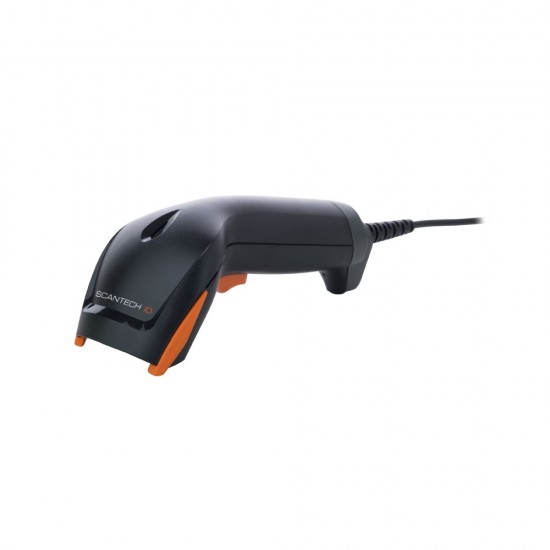

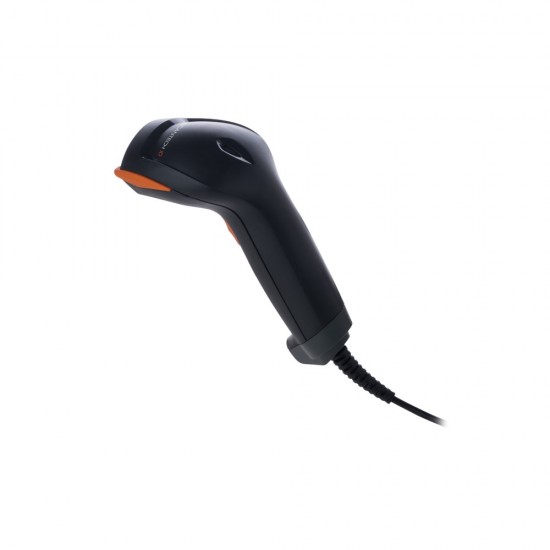

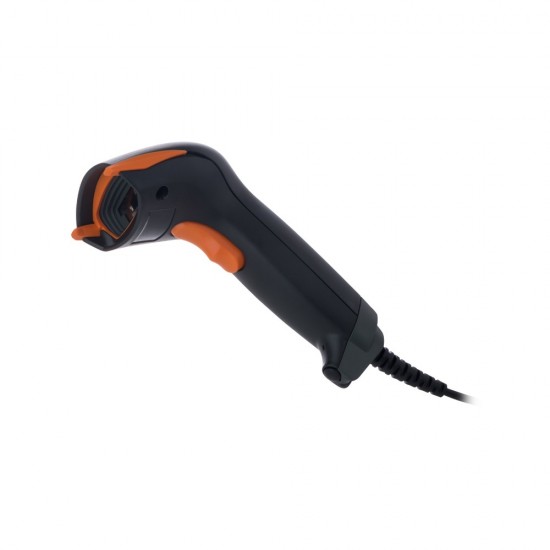

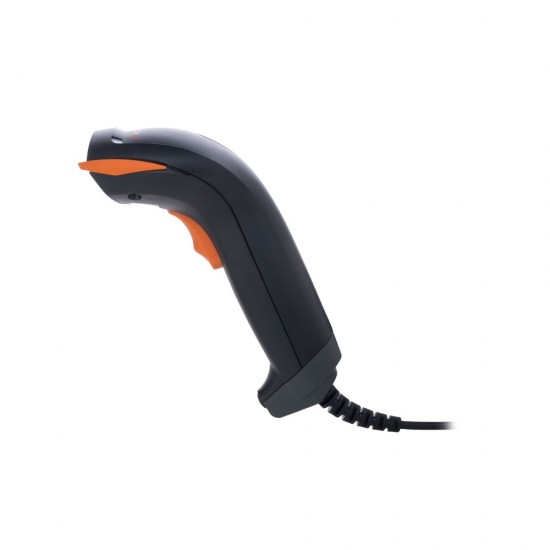

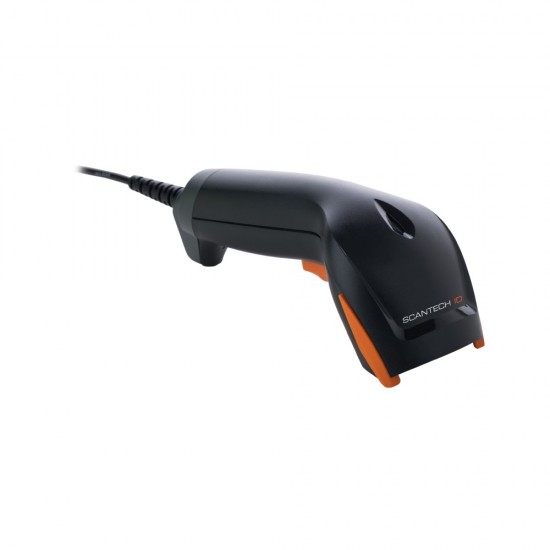

Imager Scanner Scantech IG820 2D Laser USB

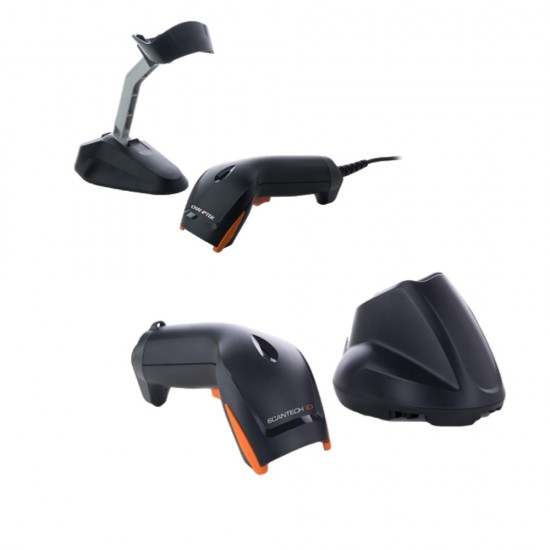

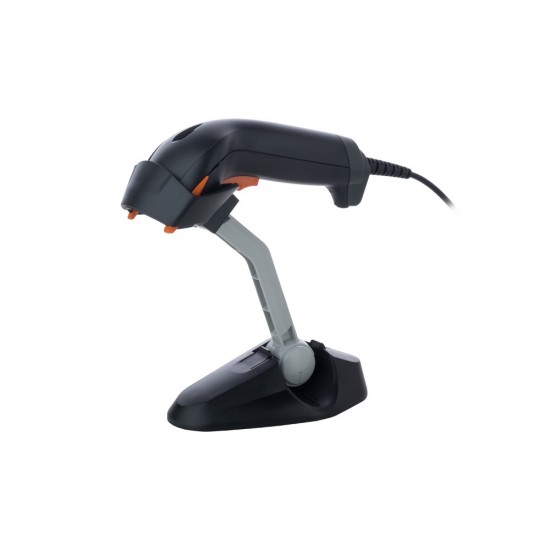

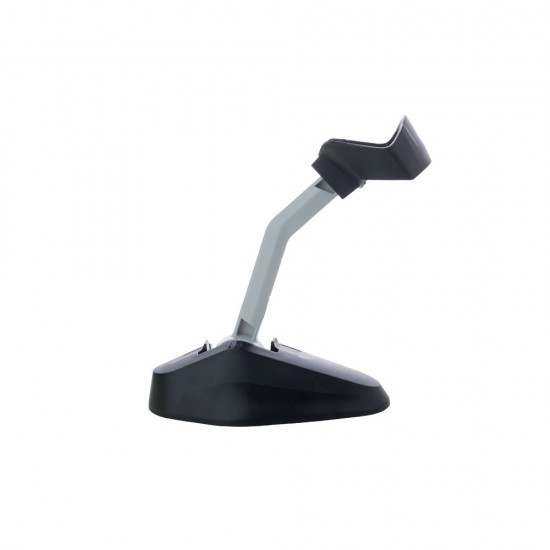

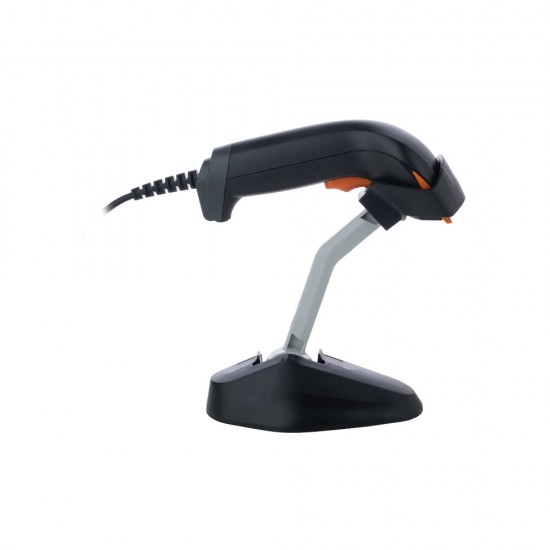

IG820 supports 1D, 2D and GS1 Databar codes.Good reading performance, e.g. good reading of QR code in 30% damage or even one finder pattern is missing. Good performance on both display and printed label reading. Support automatic sense reading and is able to read under 0 Lux dark environment. Support multiple interface options, USB HID, Virtual COM and RS-232. Designed as IP42 sealing protection. Both contact and air 16KV Electro-Static discharge. A stand option can be ordered to facilitate hand-free reading options. Vibration when scanning (optional). Applicable on Android tablet or smart phone with optional cable.

SCANTECH

Specifications

Scanners
Reading mode	1D/2D Barcodes plus GS1 Databar codes.
Scanning range/ Βάθος πεδίου	250mm@20mil/0.5mm, PCS90%
Scanning range/ Width of Field	View of Field: 55° Horizontal, 35° Vertical. Scan Angle: Pitch : ±60° (front to back). Skew: ± 60°
Scan Rate Ρυθμός σάρωσης	60 fps (at full resolution)
Resolution	3mil/0.076mm@PCS90% Code39/8mil/0.2mm@PCS90% QRCode.
Interfaces	USB HID, Virtual COM and RS-232
Dimensions	Scanner : 73.5 mm W x 173mm D x 76.2 mm H
Weight	Scanner : Approx. 110g/ 3.88oz.
Ambient light	100,000 Lux
Sealing	IP42
Additional features	Operating/ Storage Temperature: 0°C to 50°C (32°F to 122°F)/ -20°C to 70°C (-4°F to 158°F). Humidity: 20% to 95%. Voltage DC5V. Operation Consumption 370mA. MTBF(Calculated) 50,000 hours minimum. Drop: 180cm drop on Concrete Surface.
