IG620 Imager Scanner

IG620 Imager Scanner
IG620 Imager Scanner
IG620 Imager Scanner
IG620 Imager Scanner
IG620 Imager Scanner
IG620 Imager Scanner
IG620 Imager Scanner

Downloads

File Size Download
Datasheet-IG620-IG620BT.pdf 841.43KB Download

Imager Scanner Scantech IG620

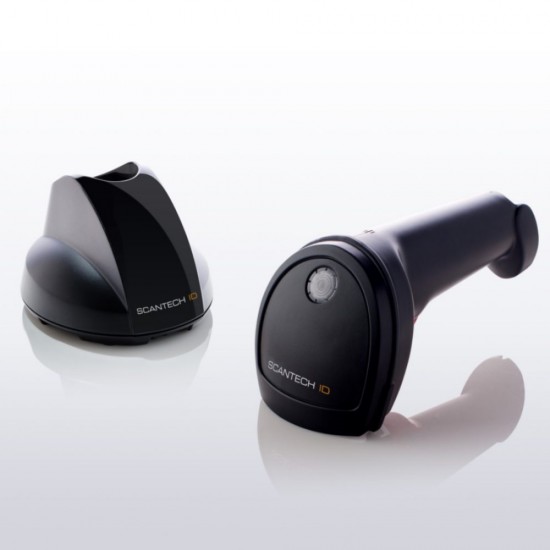

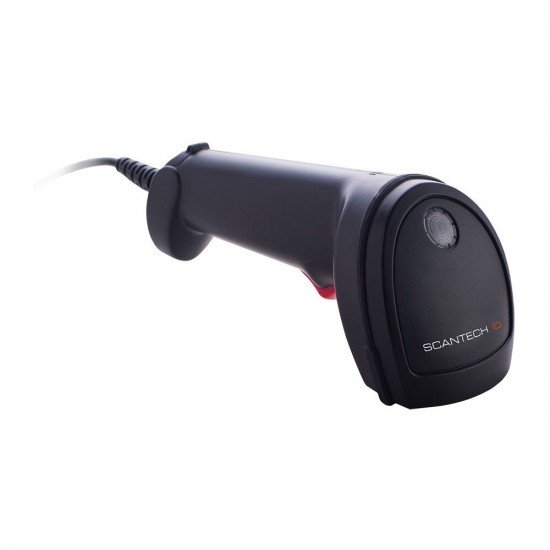

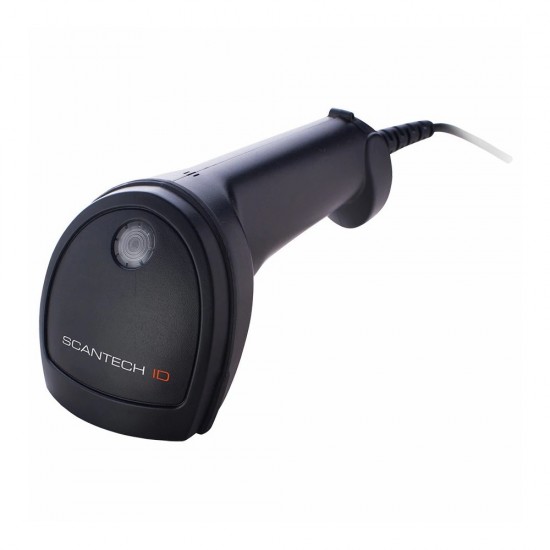

IG620/IG620BT is a brand new general purpose handheld area imager bar code scanner which is designed especially for retail, logistic market. We include friendly functions with replaceable multiple interface cable options that makes it more easily to be operated by customers to accommodate it to user environments. It supports with up to 300mm reading depth of 1D and 2D barcode, its scan rate is up to 60 images per second in 1D/2D area mode. Based on CMOS technology for optimal image sensitivity and dynamic range, features scanning speeds two times faster than traditional 1D/2D imagers. IG620BT equips with Class1 Bluetooth V2.1 EDR technology with transmission range up to 80m/262.47 ft. in line of open sight, supports both SPP and HID profiles can easily pair up with other Bluetooth V2.1 compatible mobile equipment or systems. In short, IG620/BT is a high performance handheld area imager scanner provides customers with the most cost-effective solution in the market and perfectly suitable and definitely the best choice for any retail and logistic environment.


Specifications

Scanners
Reading mode 1D/2D Barcodes plus GS1 Databar codes.
Scanning range/ Βάθος πεδίου Up to 300mm@20mil/0.5mm, PCS90%
Scanning range/ Width of Field View of Field: 40° Horizontal, 25° Vertical. Scan Angle: Pitch : ±60° (front to back). Skew: ± 60°. Rotation : ±180°
Scan Rate Ρυθμός σάρωσης 60 images per second in 2D mode
Resolution 1D: 4mil/0.1mm. 2D: 10mil/0.26mm
Interfaces RS-232, USB (HID KBW or Virtual comport)
Dimensions 71.13mm(W) x 62.61mm(H) x 169.27mm(L)
Weight Approx. 120g / 4.23oz
Ambient light 100,000 Lux
Sealing IP42
Symbologies 1D Symbologies UPC-A,UPC-E,EAN-8/JAN-8,EAN-13/JAN-13,Code 39,Code 128, Interleaved 25, Industrial 25,Matrix 25,Codabar/NW7, Code 93,China Post,MSI/Plessey,Telepen,GS1 Databar Omni-directional, GS1 Databar Limited, GS1 Databar Expended. 2D Symbologies. Data Matrix,PDF 417,QR Code. Option: Aztec,Maxi Code,Micro PDF 417,Micro QR Code,Han Xin Code,GM Code.
Additional features Operating/ Storage Temperature: 0°C to 50°C (32°F to 122°F)/ -20°C to 70°C (-4°F to 158°F). Humidity: 20% to 95%. Voltage DC5V. Operation Consumption 360mA. MTBF(Calculated) 50,000 hours minimum. Drop: 5ft.(150cm) drop on Concrete Surface. Bluetooth V2.1 EDR/ 2.402GHz~2.480GHz.
