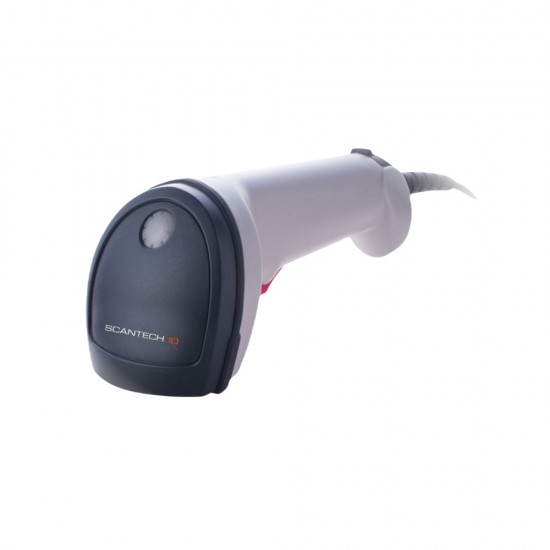

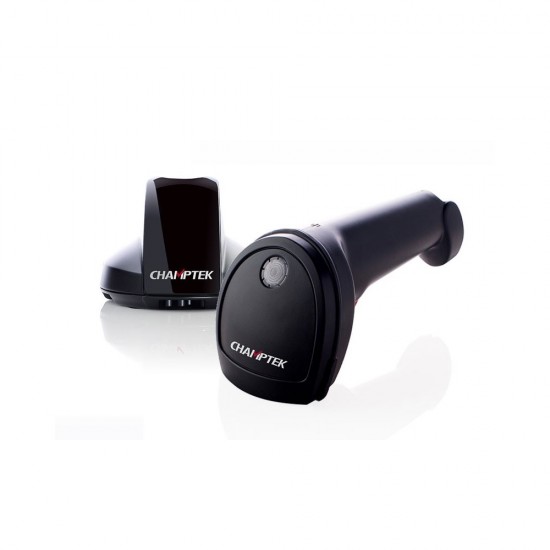

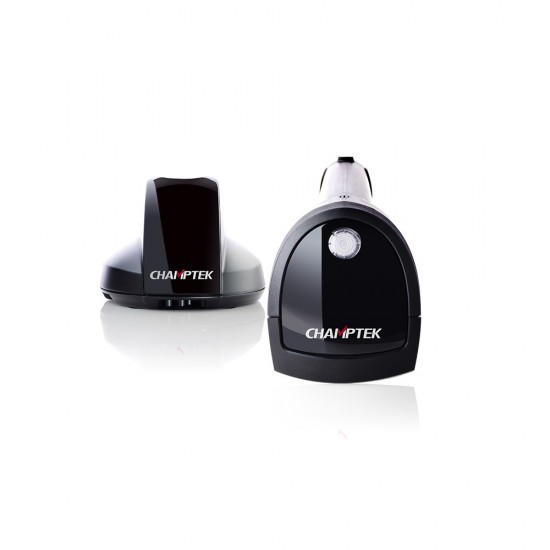

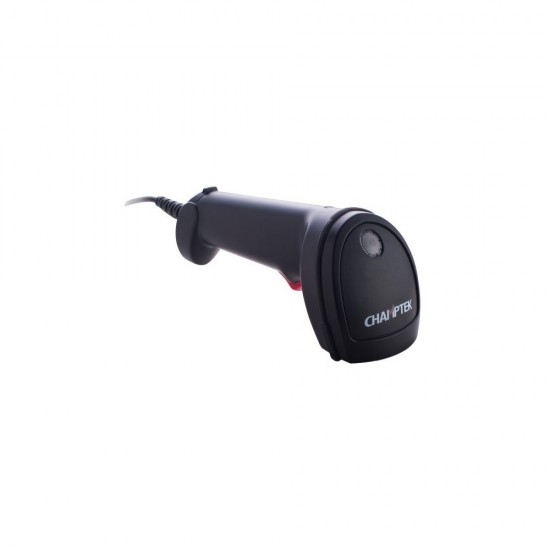

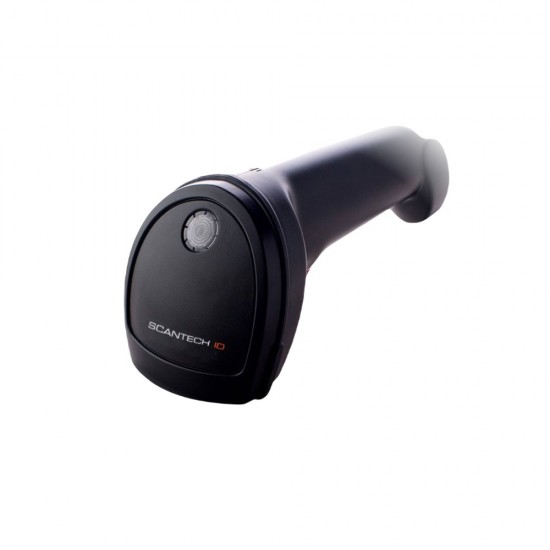

Scanner Scantech IG610 BT wireless Area Imager

IG610BT is a brand new gun-type wireless area imager bar code scanner which is designed especially for retail, logistic and warehousing management market. We include friendly functions with replaceable multi-interface cable options that makes it more easily to be operated by the customers to accommodate it to user environment. IG610BT supports 1D and 2D barcode scanning with up to 500mm reading depth for the majority of 1D, 2D bar codes and GS1 DataBar™ codes. Its scan rate is up to 60 images per second in 2D area mode. Support out of range or batch transmission mode, memory capacity stores up to 30,000 inputs of EAN13 barcodes. The scanner and cradle with Class1 Bluetooth V2.1 EDR technology with transmission range up to 100m/ 328.08 ft. in line of open sight, supports both SPP and HID profiles can easily pair up with other Bluetooth V2.1 compatible mobile equipments or systems. In short, IG610BT is a high performance wireless barcode scanner which provides customers with the most cost-effective solution in the market. It is perfectly suitable and definitely the best choice for any retail and logistic environment.

Specifications

Scanners
Reading mode 1D/ 2D
Scanning range/ Βάθος πεδίου Up to 300mm@20mil/0.5mm, PCS90%, Code 39
Scanning range/ Width of Field Horizontal: 40°, Vertical: 25°
Scan Rate Ρυθμός σάρωσης 1D mode: 120 scans; 2D mode: 60 images
Resolution 1D: 4mil/0.1mm, 2D: 5mil/0.127mm
Interfaces RS232, USB (HID, Virtual COM)
Dimensions 169.2x71.1x62.6mm
Weight 182g
Ambient light 100,000 Lux Max.
Sealing IP42
Symbologies Support 1D and 2D Barcodes plus GS1 Databar codes.
Additional features Operating Temperature 0°C to 50°C (32°F to 122°F)/ Storage Temperature-20°C to 70°C (-4°F to 158°F)/ Relative Humidity 20% to 95% (Non-condensing)/ Voltage Battery Li-Ion 3.7V/2,600 mAh. Charge Time Approx.5 hours. Reads per Charge 20,000 Times. Operation Consumption 400m.
