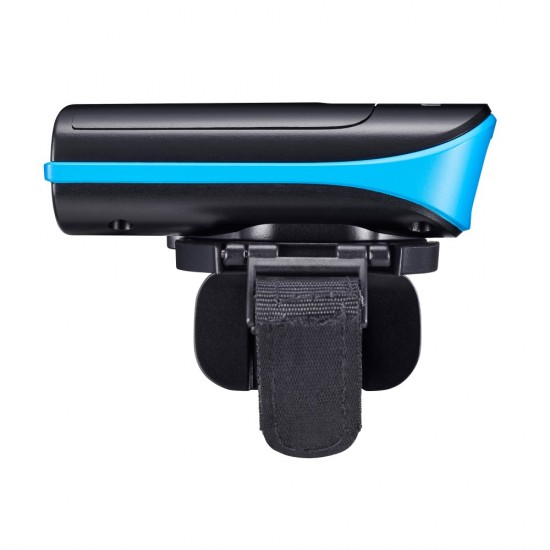

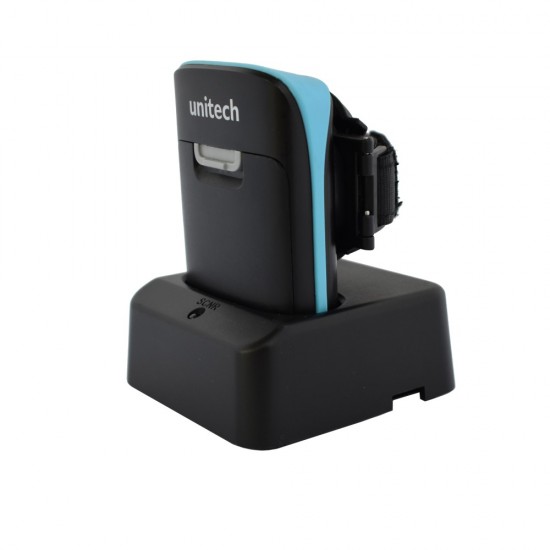

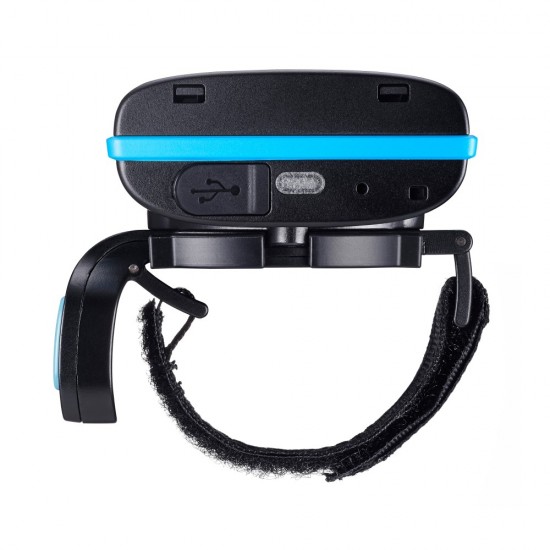

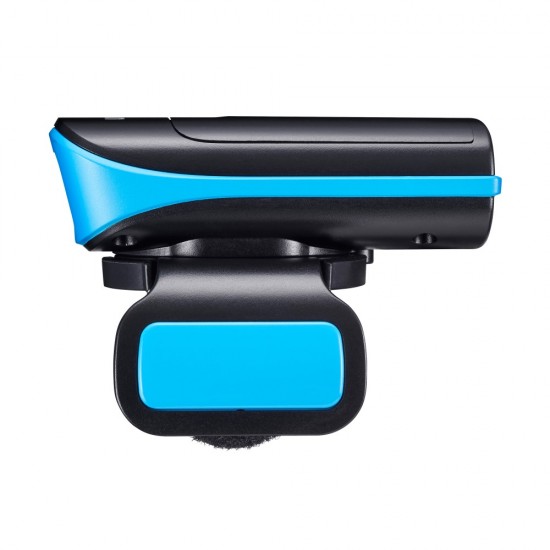

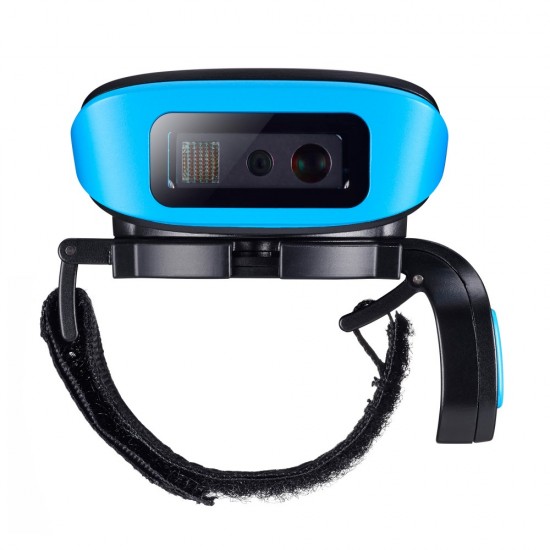

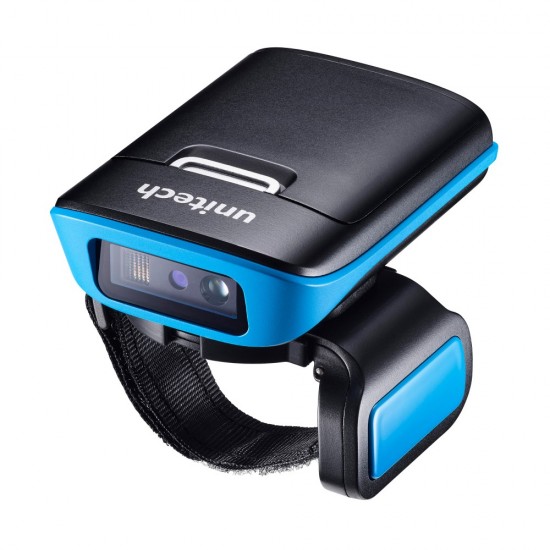

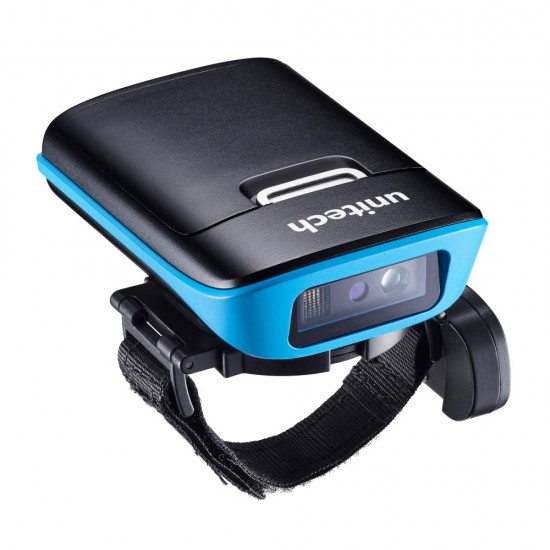

MS652 2D Ring Scanner

Name: MS652 2D Ring Scanner
Brand: UNITECH
Price: 1.00 EUR
Availability: InStock

MS652 2D Ring Scanner

Description

Ring Scanner MS652 2D 2.4GHz Wireless

Featuring a superior scan engine, the MS652+ is available to scan most 1D, 2D and PDF417 barcodes printed on paper labels or displayed on the screen of a mobile phone. The Bluetooth and NFC technology delivers the most efficient way to pair with smart phone and tablets (including iOS or Android system) with just a touch. Moreover, the wireless technology keeps the scanner connected up to 32 feet (10 meters) from the computer, increasing productivity by allowing workers to move to the task. The MS652+ can be utilized with an auto mode that ensures no data is lost while it is out of range of the wireless signal, it uploads data to the back-end system automatically when it gets back in range, allowing you to complete tasks without interruption

UNITECH

Specifications

Scanners
Reading mode	2D barcode: Available to read 1D, 2D and PDF417 barcodes
Scanning range/ Βάθος πεδίου	(DOF PCS=80%) Symbology \| Density \| Near \| Far Code 39, 5 mil \| 5.1 cm \| 16.2 cm Code 128, 5 mil \| 6.3 cm \| 12.7 cm PDF417, 6.6 mil \| 6.3 cm \| 16.0 cm PDF417, 10 mil \| 4.5 cm \| 22.8 cm 100% UPC, 13 mil \| 5.0 cm \| 31.7 cm Code 39, 20 mil \| 5.0 cm \| 49.5 cm Data Matrix, 20 mil \| 3.8 cm \| 34.3 cm QR Code, 20 mil \| 3.8 cm \| 27.9 cm
Scanning range/ Width of Field	Skew Angle 60º, Pitch Angle Sensor 60º
Resolution	CMOS sensor (640 x 400 pixels)
Interfaces	Bluetooth: Class 2, Bluetooth v 4.2 Low Energy, Protocol: BT HID / SPP, Range: 32 ft. (10.0m). Windows, Android and iOS compatible
Dimensions	2 in. H x 2.8 in. W x 0.8 in. D/ 5 cm H x 7.1 cm W x 2.1 cm D
Weight	3.4 oz. / 95 g
Ambient light	Tolerant to typical artificial indoor and natural outdoor lighting conditions. Sunlight: 107,639 Lux
Symbologies	1D Code: All major symbologies and PDF417/ 2D Code: QR Code, Data Matrix, Aztec Code, PDF417, Macro PDF417, Micro PDF417, MaxiCode, Coda, block A, Codablock F, GS1Composite, Han Xin, Code, Australian Post, British Post, Canadian Pos, InfoMail, Intelligent Mail Bar Code, Japanese Post, KIX (Netherlands) Post, GS1 Composite, Korea Post, Planet Code, Postal, Postnet
Additional features	Light Source: 1 Hyper Red 660nm LED/ Memory 7.5MB; stores up to 590,000 scans (EAN13 codes)/ Operating Time: 13 hours (1 scan/5 secs), Charging Time: 4 hours (full charge), Operation Mode: Trigger mode, Presentation mode, Auto mode, Batch mode/ Power: 800 mAh, Lithium-Ion Battery, Operating Current: 400 mAh, Standby Current: 160 mAh/ Operating Temperature: 32° to 122° F/0° to 50° C, Storage Temperature: -4ºF to 140ºF/-20ºC to 60ºC, Relative Humidity: 5% to 95% non-condensing, Drop Specification: Multiple 5 ft./1.5 m drops to concrete, Environmental Sealing: IP42, Electrostatic Discharge: 12KV air discharge 8KV contact discharge.
