Ring Scanner 8670 1D/ 2D 2.4GHz Wireless

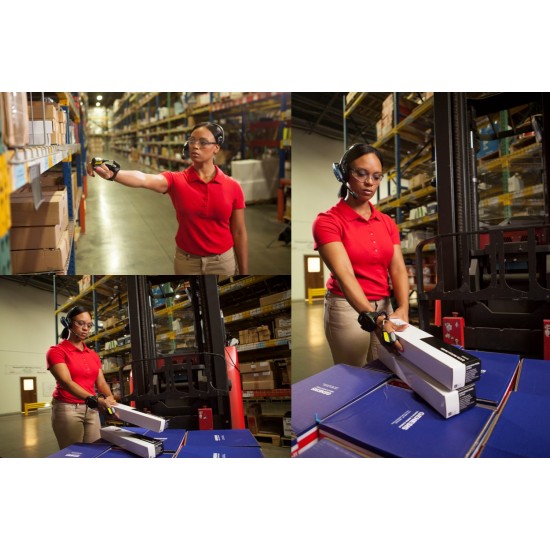

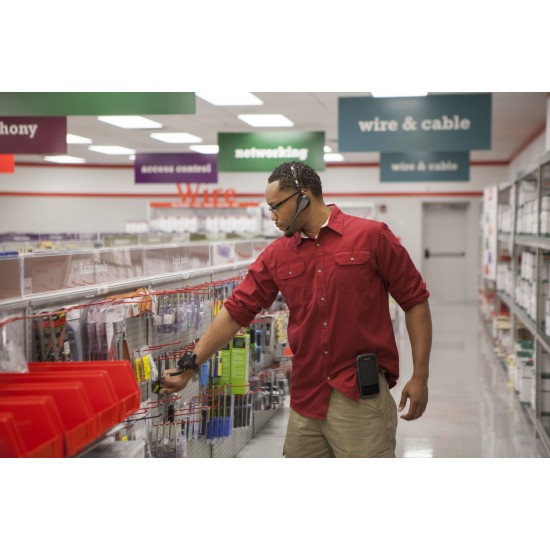

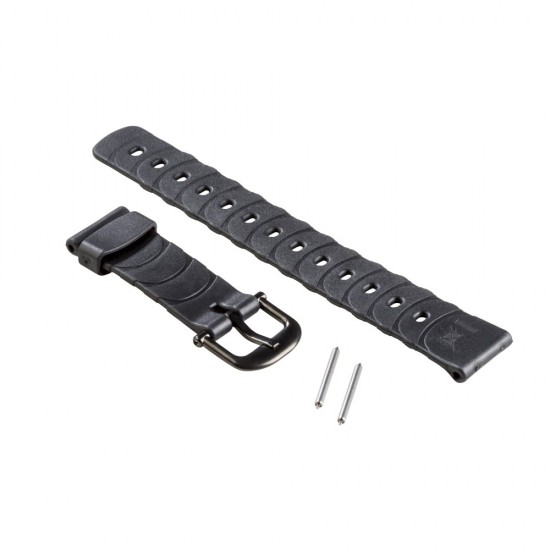

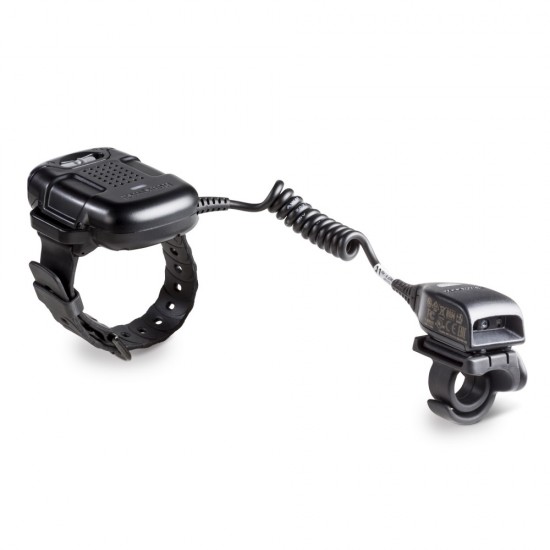

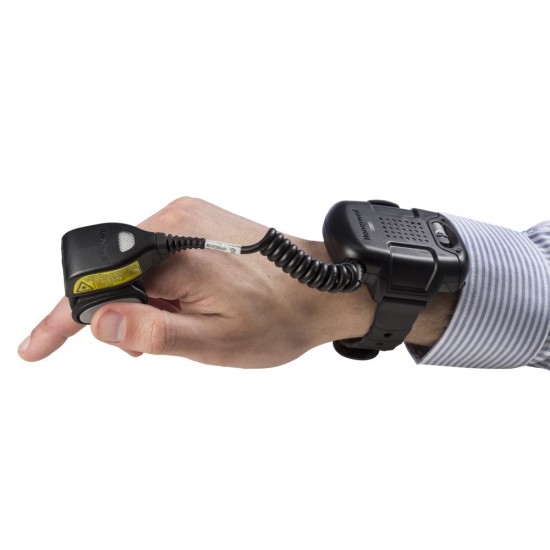

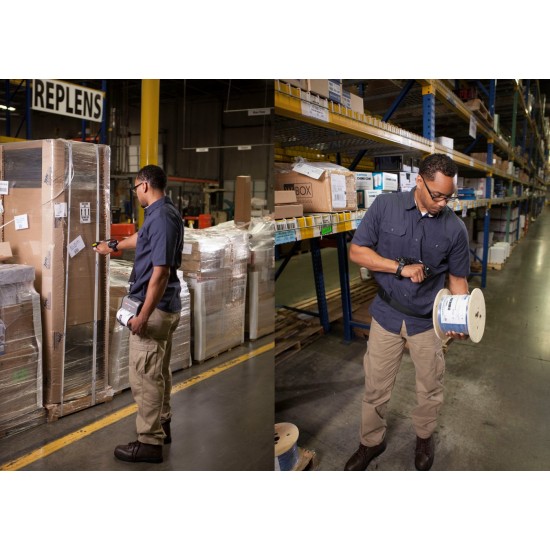

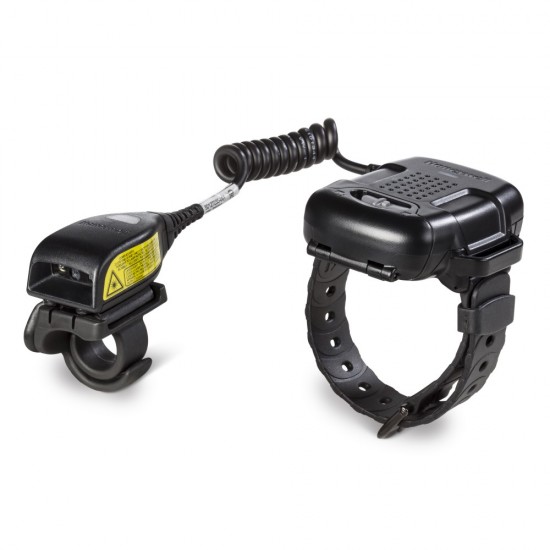

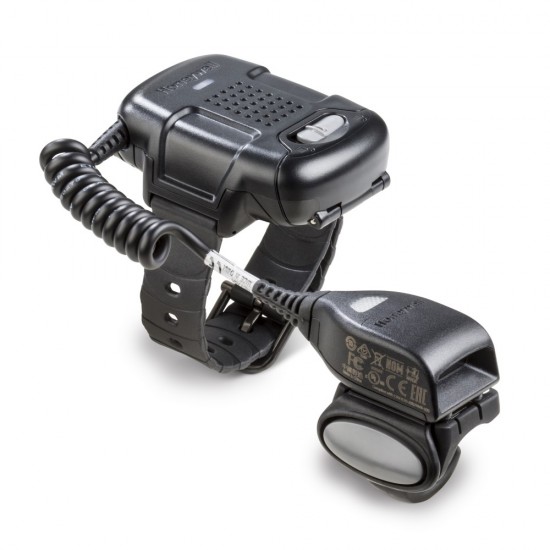

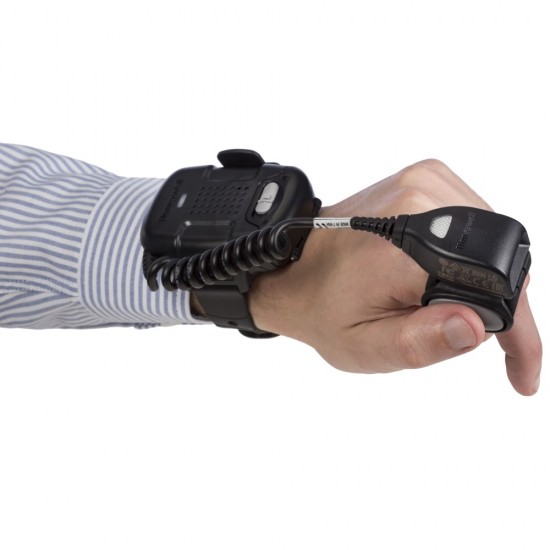

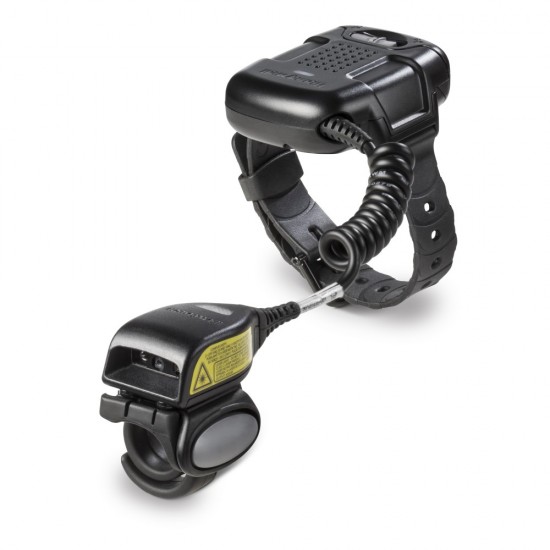

The 8670 Wireless Ring Scanner has an ergonomic two-piece design. The soft elastomeric finger and wrist straps are very comfortable and eliminate hygiene concerns. Simply mount the device’s small, lightweight scanner on your finger. Then wear the Bluetooth module comfortably on your wrist. This flexible design gives you unsurpassed freedom of movement to scan barcodes quickly, safely and comfortably, while letting you keep both hands free for related tasks. And to ensure highly productivity scanning, the design also enables multi-sensory feedback through a vibrator, beeper, LEDs and aimer. Excellent motion tolerance and fast decode speeds for omnidirectional 1D and 2D barcode scanning boosts productivity. Improved scanning performance on poor quality or damaged barcodes saves you time. Bluetooth technology provides freedom of movement up to 10m from the host. Pairs with Bluetooth enabled PCs, laptops and mobile devices running Apple, Android or Windows OS.







Specifications

Scanners
Reading mode 1D, 2D
Scanning range/ Βάθος πεδίου 5 MIL CODE 39: 54 mm – 153 mm (2.1 in – 6 in). 10 MIL CODE 39: 18 mm – 328 mm (0.7 in – 12.9 in). 13 MIL UPC-A: 36 mm – 409 mm (1.4 in – 16.1 in). 6.7 MIL PDF417: 36 mm – 175 mm (1.4 in – 6.9 in). 10 MIL DATA MATRIX: 43 mm – 193 mm (1.7 in – 7.6 in).
Scanning range/ Width of Field Skew Angle 60º, Pitch Angle Sensor 45º
Resolution Area Imager (844 x 640 pixel array)
Interfaces 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1: Class 2; 10 m (33 ft) line of sight
Dimensions Bluetooth Module: 78.2 mm x 70 mm x 28 mm (3.1 in x 2.75 in x 1.1 in). Ring Imager: 50 mm x 30 mm x 30 mm (2 in x 1.2 in x 1.2 in)
Weight 136 g (4.8 oz)
Ambient light 0 to 100,000 lux
Additional features Operating Temperature: -20°C to +50°C (-4°F to +122°F). Storage Temperature: -20°C to +60°C (-4°F to + 140°F). Humidity: Up to 95% relative humidity, non-condensing. Drop: Designed to withstand 30 1.5 m (5 ft) drops to concrete across temperature range Environmental Sealing: IP54
