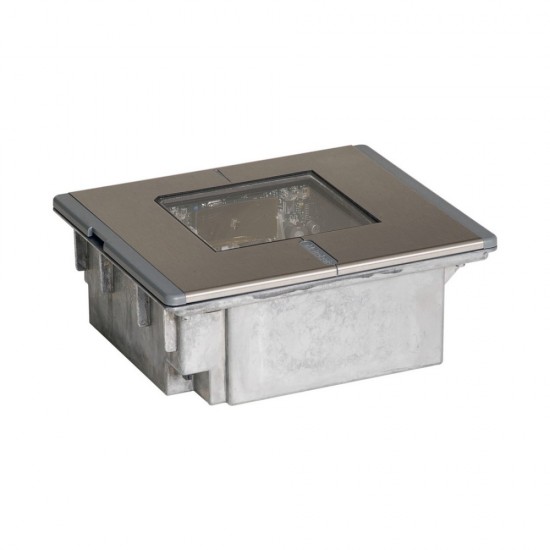

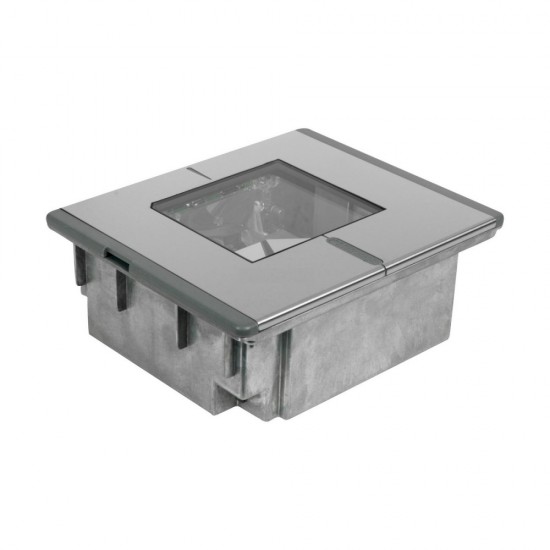

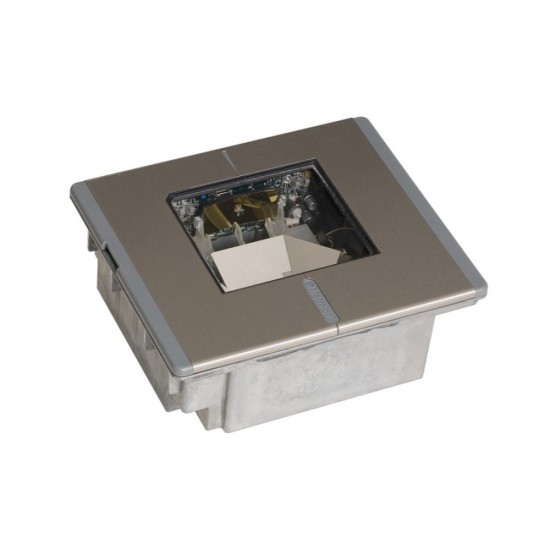

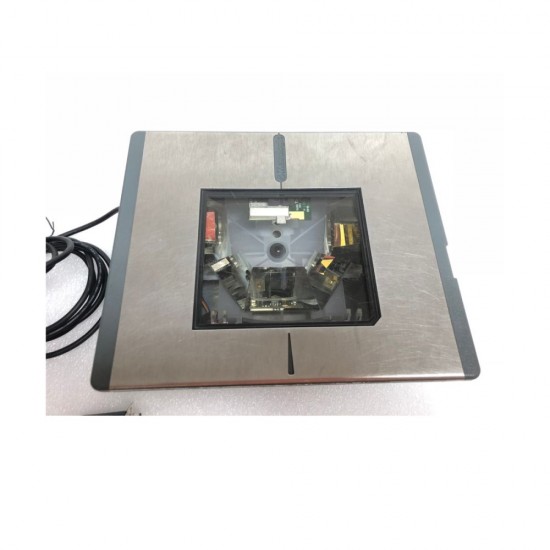

MS7625 Horizon 1D Scanner

MS7625 Horizon 1D Scanner
MS7625 Horizon 1D Scanner
MS7625 Horizon 1D Scanner
MS7625 Horizon 1D Scanner
MS7625 Horizon 1D Scanner
MS7625 Horizon 1D Scanner
MS7625 Horizon 1D Scanner
MS7625 Horizon 1D Scanner
MS7625 Horizon 1D Scanner

Downloads

File Size Download
horizon-7600-in-counter-scanner-data-sheet-en.pdf 258.38KB Download

Scanner MS 7625 Horizon  1D

The Horizon™ 7600 scanner is compact, yet tough. Its performance, ruggedness and feature set make it an excellent fit for a variety of businesses. The 7600 scanner’s dense 20-line scan pattern provides fast, efficient throughput. And its integrated EAS antenna makes it easy for you to scan barcodes and deactivate security tags at the same time. The Horizon 7600 in-counter hands-free laser scanner combines excellent performance and compact yet rugged construction with retail-smart features. It’s an ideal choice for grocery stores, package depots, and businesses that must deactivate security tags at checkout. Compatible with almost every POS system on the market today. If you use EAS security tags to reduce shrink, you’ll appreciate the scanner’s integrated RF EAS deactivation antenna. A single pass is all it takes to deactivate the security tag and scan the product’s barcode. The Horizon 7600 scanner is also equipped with IR laser activation, which allows cashiers to “wake” the unit from a power save or sleep mode and read a barcode instantaneously. And you can adapt the Horizon 7600 scanner to the needs of your business thanks to a RS232 auxiliary port. If your cashiers need to scan bulky, oversized objects, adding a handheld barcode scanner will make it easy. Or you can add a different peripheral such as a check reader or magnetic stripe reader – whatever best fits the needs of your cashiers and your customers.

Specifications

Scanners
Reading mode 1D Omnidirectional
Scanning range/ Βάθος πεδίου 0 mm - 38 mm/ 0 mm - 114 mm/ 0 mm - 178 mm/ 0 mm - 203 mm/ 0 mm - 229 mm
Scanning range/ Width of Field 5.2 mil/ 7.5 mil/ 10.4 mil/ 13 mil/ 19 mil
Scan Rate Ρυθμός σάρωσης 2000 scan lines per second
Resolution 5 mil (0.125 mm)
Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Wand Emulation. Auxiliary Ports RS232: Secondary Scanner or Scale, EAS
Dimensions 88 mm x 229 mm x 193 mm (3.5˝ x 9.0˝ x 7.6˝)
Weight 2.9 kg (6.3 lbs)
Ambient light 4842 Lux
Sealing Sealed to resist airborne particulate contaminants
Symbologies Reads standard 1D and GS1 DataBar symbologies
Additional features Input Voltage 5 VDC ± 0.25 V/ Operating Power 2.6 W (500 mA @ 5 V)/ Standby Power 830 mW (<165 mA @ 5 V)/ Operating Temperature 0°C to 40°C (32°F to 104°F)/ Storage Temperature -40°C to 60°C (-40°F to 140°F)/ Humidity 5% to 95% relative humidity, non-condensing/ Warranty 3 year factory warranty.
