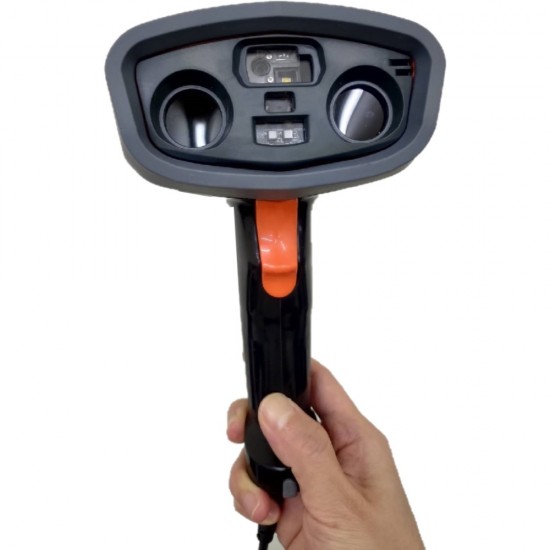

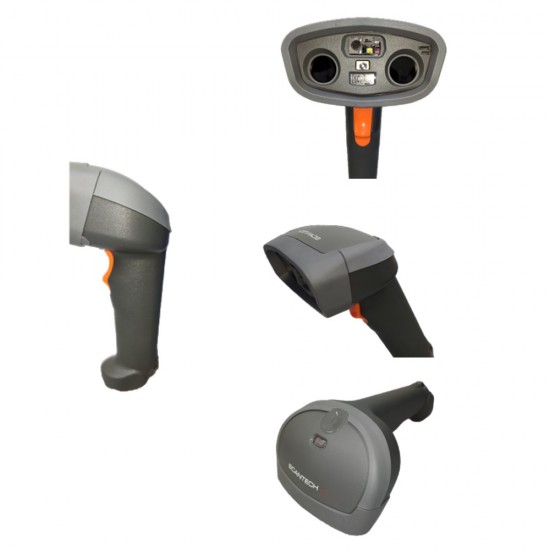

VM100 3D measurement reader

Scantech-ID’s VM100 is a compact and robust handheld multi-dimensional measuring device, easy to carry device. Intelligent reading zone detection and smart guiding aimer will alarm continuous beeps with flashing red LED when no object is detected inside the good reading zone which leads customers to measure very intuitively and quickly. Configurable buttons allow the operation flow best fit the application that enables customers to optimize various multi-dimensional measurement applications, quickly and effectively. Ideal for a courier and express delivery company, a post office, a shipping station, a retail ship-from-store location, an airport check-in counter, an inbound station of a warehouse. VM100 system provides an efficient way to achieve quick measuring and space optimization. Offers instantly and accurately measure the dimensions of an object.  It is a dimensioning device provides quick workflow replacing manual tape measurements with mistakes and reduced productivity. VM100 is a compact device to support multiple functions application and save space. Best choice for companies looking to measure packages, cartons, and objects to optimize its workload, workflow and space.


Specifications

Scanners
Reading mode 3D measurement
Scanning range/ Βάθος πεδίου Horizontal 52°, Vertical 30°. Measurement angle: Pitch: 35° ~ 65°, Skew : ± 15°. Aimer: 650±10nm Red VLD, 60825-1:2014 Class 1
Scanning range/ Width of Field Shape: Cubic and rectangular package / carton. Accuracy: d=2, less than ±2cm deviation. Object size: 10 cm / 3.94 inches cube (OIML 20cm cube),80 cm / 31.5 inches cube (OIML 60cm cube).
Scan Rate Ρυθμός σάρωσης Measurement time less than 1 second
Interfaces USB or RS-232 wired cable
Dimensions 115 x 70 x 80mm
Weight Approx. 270g / 9.52oz
Ambient light 3.000 Lux
Sealing IP54
Additional features Operating temperature 0°C to 40°C (32°F to 104°F). Storage temperature -20°C to 60°C (-4°F to 140°F). Supply Voltage DC+5V±5%. Operation (Typ.) 465mA. Stand by (Typ.) 225mA. Certification CE, FCC, LVD, apply OIML/MID and NTEP.
