Scanner Honeywell MS1250 Voyager 1D

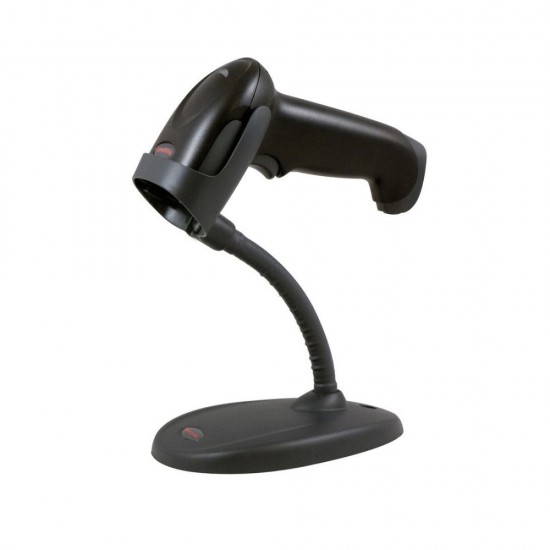

Extend your scanning range with the Voyager™ 1250g single-line laser barcode scanner. It aggressively reads linear barcodes up to 58.4 cm (23 in) away, making the job more comfortable and productive for your team. The scanner quickly switches to hands-free scanning with the included stand. With extended depth of field to make scanning out-of-reach items a breeze. Minimizes the need for manual data entry and that leads to increased productivity and fewer errors. The 1250g scanner’s stand provides the advantage of hands-free scanning for those applications that benefit from being able to use both hands. Quick installation, plug-and-play easy. Simply plug the device’s cable into your host system and the 1250g scanner will automatically configure itself to the appropriate interface. No programming barcodes to scan. No hassle.

Specifications

Scanners
Reading mode 1D
Scanning range/ Βάθος πεδίου 57 mm - 139 mm (2.2˝ - 5.5˝)/ 28 mm - 245 mm (1.1˝ - 9.7˝)/ 9 mm - 369 mm (0.4˝ - 14.5˝)/ 0 mm - 446 mm (0˝ - 17.6˝)
Scanning range/ Width of Field 5.0 mil / 7.5 mil / 10.4 mil / 13 mil
Resolution 4 mil (0.127 mm)
Interfaces Multi-interface; includes USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V, 4 signals), Keyboard Wedge, RS-232C (± 12V), IBM RS485 supported via adapter cable Multi-interface; includes USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V, 4 signals), Keyboard Wedge, RS-232C (± 12V), IBM RS485 supported via adapter cable
Dimensions 60 mm x 168 mm x 74 mm (2.3˝ x 6.6˝ x 2.9˝)
Weight 133 g (4.7 oz)
Ambient light 75,000 Lux
Sealing IP40
Symbologies Reads standard 1D and GS1 DataBar symbologies
Additional features Input Voltage 5 V ± 5%, Operating Power 700 mW; 140 mA (typical) @5V, Standby Power 425 mW; 85 mA (typical) @ 5V . Operating Temperature 0°C to 40°C (32°F to 104°F). Storage Temperature -20°C to 60°C (-4°F to 140°F). Humidity 5% to 95% relative humidity, non-condensing. Drop Designed to withstand 30 drops on concrete from 1.5 m (5’)
