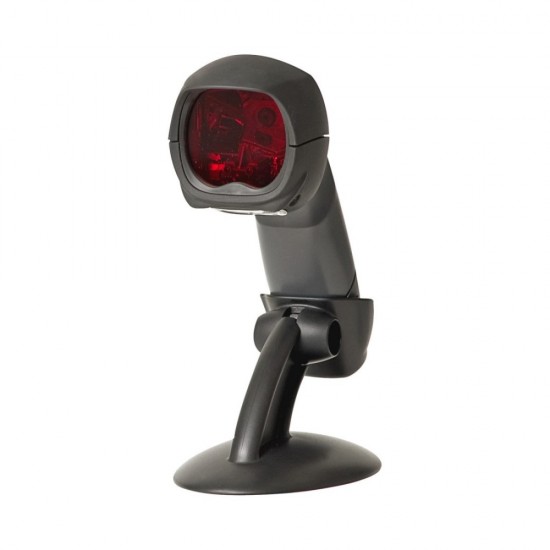

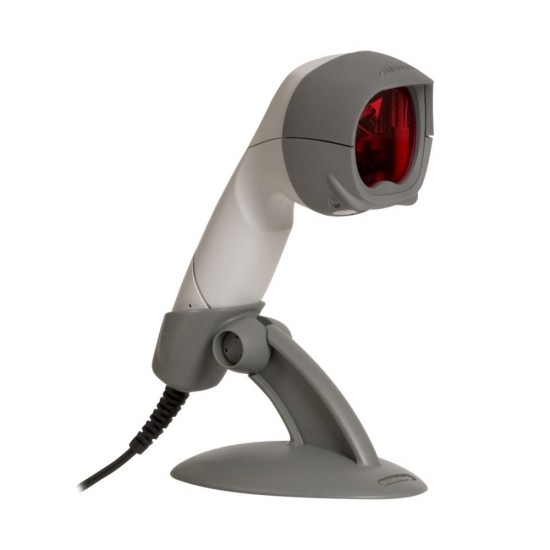

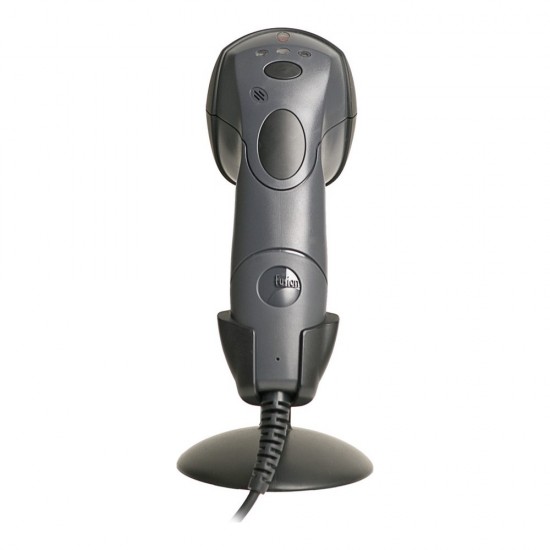

Scanner Honeywell MS3780 Fusion 1D

The Fusion™ 3780 laser barcode scanner is ideal for medium-volume retailers. It combines omnidirectional and single-line laser scanning into a lightweight, ergonomic handheld device that’s also affordable. And the scanner's automatic stand detection lets you seamlessly switch from handheld to hands-free presentation scanning on the fly. The Fusion 3780 is an affordable handheld devices that provides omnidirectional laser scanning plus single-line scanning capability for standard 1D and GS1 DataBar symbologies. Stabilized with a weighted metal base; hard-mount the stand to a checkout counter or wall.Optional integration of RF EAS Antenna increases efficiency by letting you simultaneously deactivate RF EAS tags and decode barcodes. Standard features such as Flash ROM, MetroSelect™ and MetroSet™2 programming, and user replaceable cables protect your investment by enabling the Fusion 3780 scanner to grow with you and your application needs.

Specifications

Scanners
Reading mode 1D
Scanning range/ Βάθος πεδίου 1.18 in - 5.91 in
Scanning range/ Width of Field 5 mil
Scan Rate Ρυθμός σάρωσης 1333 line / sec
Resolution 5 mil (0.127 mm)
Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA
Dimensions 189 mm x 65 mm x 73 mm (7.4˝ x 2.6˝ x 2.9˝)
Weight 195 g (6.9 oz)
Ambient light 4842 Lux
Sealing Sealed to resist airborne particulate contaminants
Symbologies GS1 DataBar-14, GS1 DataBar Expanded, GS1 DataBar Limited
Additional features Input Voltage 5 VDC ± 0.25 V. Operating Power 1.4 W (275 mA @ 5 V). Standby Power 1.0 W (200 mA @ 5 V). Operating Temperature -20°C to 40°C (-4°F to 104°F). Storage Temperature -40°C to 60°C (-40°F to 140°F). Humidity 5% to 95% relative humidity, non-condensing. Warranty 3 year factory warranty Drop Designed to withstand multiple 1.5 m (5´) drop
