Scanner Gryphon GBT4400 2D BT KIT

Name: Scanner Gryphon GBT4400 2D BT KIT
Brand: DATALOGIC
Price: 1.00 EUR
Availability: InStock

Scanner Gryphon GBT4400 2D BT KIT

Downloads

File	Size	Download
DS-GRYPHONIGBT_GM4500-2D-ENA4.pdf	371.48KB	Download

Description
Video

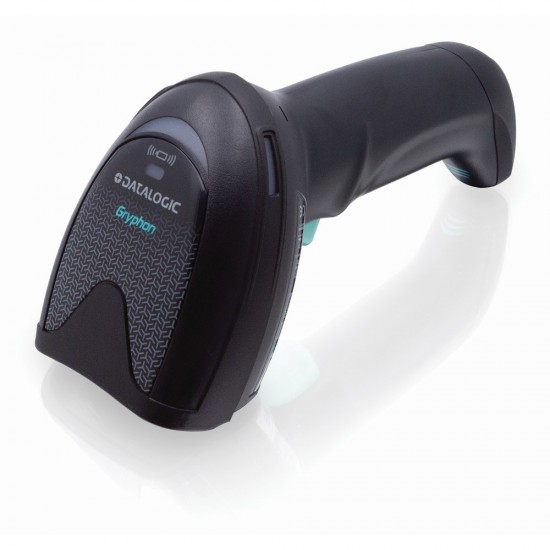

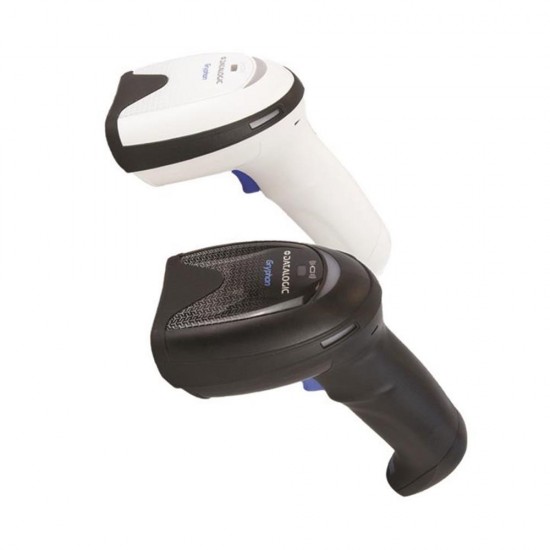

Scanner Datalogic Gryphon GBT4500 2D BT KIT

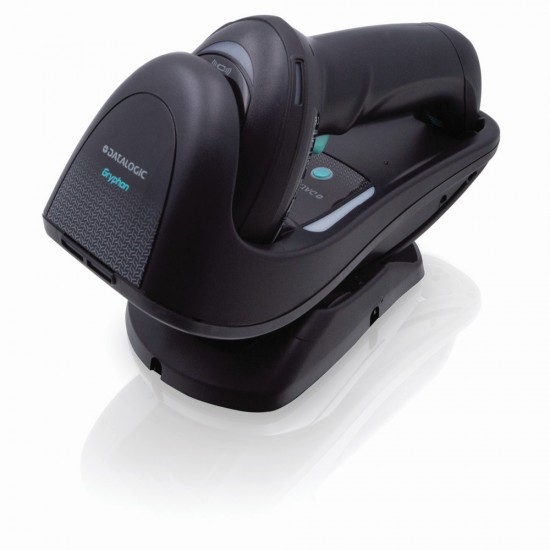

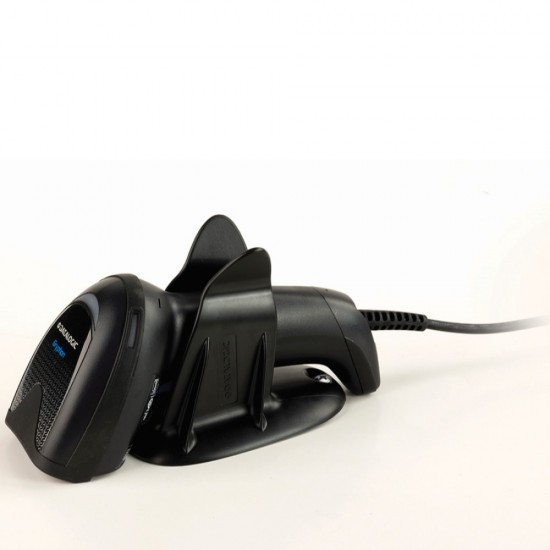

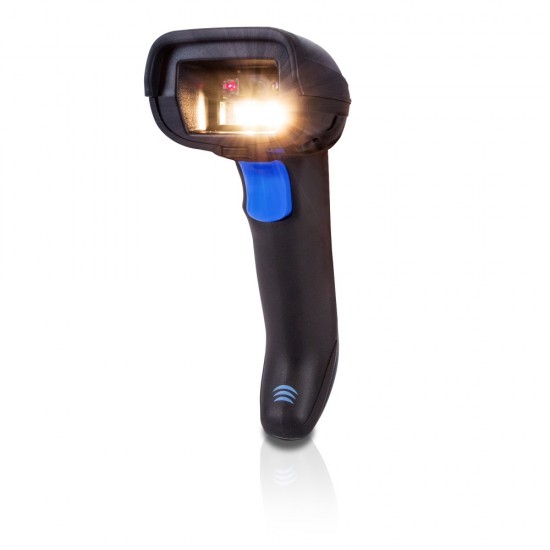

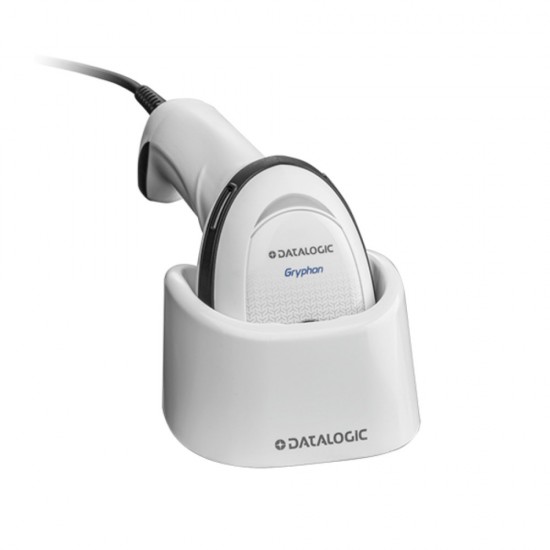

The Gryphon GBT4500 2D provides 1 MP optics for superior scanning and DOF. Datalogic distinctive technology with highly visible white-illumination and 4-Dot aimer with center cross for targeted scanning. Datalogic’s patented ‘Green Spot’ technology, exclusive 3GL™ (3 Green Lights) and Vibration for superior good-read feedback. Motionix™ motion-sensing technology for seamless reading mode transitions. Omnidirectional reading. Image capture and document scanning capabilities. Reads 1D, 2D and postal codes plus stacked and composite codes; Digital Watermarking and DPM reading on specific models. Choice of Bluetooth wireless technology version 4.0 with BLE or Datalogic’s STAR Cordless System (radio frequencies available in 433 MHz or 910 MHz). Wireless battery charging system. Adjustable position cradle with Scan-While-Charging capability. Batch Mode capability. Point-to-point / Point-to-multipoint transmission Long lasting user-replaceable Lithium-Ion battery.

DATALOGIC

Specifications

Scanners
Reading mode	1D /2D
Scanning range/ Βάθος πεδίου	GM/GBT4500 Standard Range (SR): Code 39: 5 mils: 7.0 to 38.0 cm / 2.7 to 14.9 in, Code 39: 10 mils: 2.2 to 58.0 cm / 0.8 to 22.8 in, Data Matrix: 10 mils: 5.5 to 27.0 cm / 2.2 to 10.6 in, Data Matrix: 15 mils: 2.8 to 41.0 cm / 1.1 to 16.1 in, EAN-13: 13 mils: 1.0 to 71.0 cm / 0.4 to 27.9 in, PDF417: 10 mils: 2.5 to 41.0 cm / 1.0 to 16.1 in, QR Code: 10 mils: 5.5 to 24.0 cm / 2.2 to 9.5 in.
Scanning range/ Width of Field	GM/GBT4500 High Density (HD): Code 39: 3 mils: 5.0 to 15.0 cm / 2.0 to 5.9 in, Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in, Data Matrix: 5 mils: 5.5 to 9.0 cm / 2.2 to 3.5 in, Data Matrix: 10 mils: 2.0 to 27.0 cm / 0.8 to 10.6 in, EAN-13: 7.5 mils: 2.0 to 23.5 cm / 0.8 to 9.3 in, EAN-13: 13 mils: 1.0 to 40.0 cm / 0.4 to 15.7 in, PDF417: 4 mils: 3.0 to 12.0 cm / 1.2 to 4.7 in, PDF417: 10 mils: 0.5 to 31.0 cm / 0.2 to 12.2 in, QR Code: 10 mils: 2.0 to 25.0 cm / 0.8 to 9.8 in.
Resolution	High Density (HD): 1D Linear: 0.077 mm / 3 mils; PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils. Standard Range (SR): 1D Linear: 0.102 mm / 4 mils; PDF417: 0.127 mm / 5 mils; Data Matrix: 0.195 mm / 7.5 mils.
Interfaces	RS-232 / USB / Keyboard Wedge Multi-Interface
Dimensions	16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in
Weight	235 g / 8.29 oz
Ambient light	0 - 100,000 lux
Sealing	IP52
Symbologies	1D Linear Codes Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes/2D Codes Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code/ Postal Codes Australian Post; British Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Postnet; Royal Mail Code (RM4SCC)/ Stacked Codes EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites/ Digital Watermarking Digimarc Barcodes.
Additional features	Lithium-Ion: 3250 mAh. Charge Time: External Power: 4 Hours @ 12 VDC; Reads per Charge: 80,000/ Charging (Typical): < 6 W; Scanner only: 330 mA @ 3.7 V (Operative). Cradle only: 80 mA @ 5 V (Operative). Input Voltage 4.5 - 14 VDC +/- 5%.
