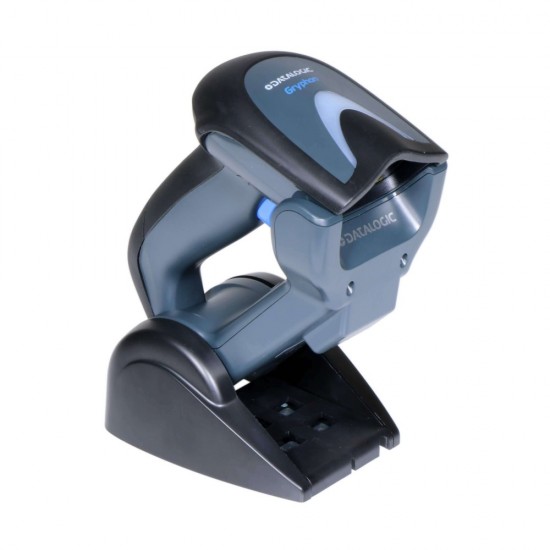

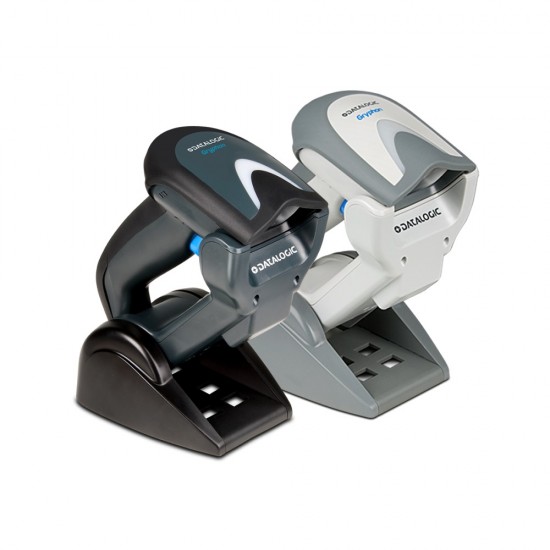

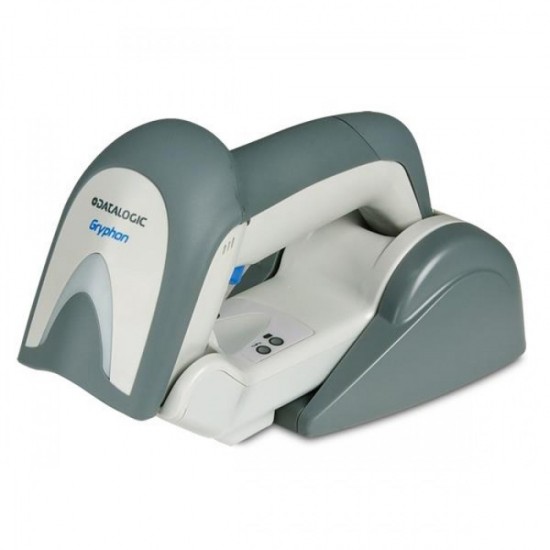

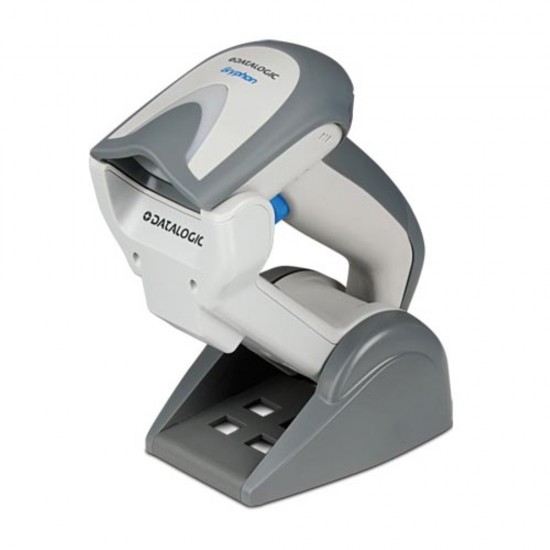

Scanner Gryphon GBT4400 2D BT KIT

Scanner Gryphon GBT4400 2D BT KIT
Scanner Gryphon GBT4400 2D BT KIT
Scanner Gryphon GBT4400 2D BT KIT
Scanner Gryphon GBT4400 2D BT KIT
Scanner Gryphon GBT4400 2D BT KIT
Scanner Gryphon GBT4400 2D BT KIT
Scanner Gryphon GBT4400 2D BT KIT
Scanner Gryphon GBT4400 2D BT KIT
Scanner Gryphon GBT4400 2D BT KIT

Downloads

File Size Download
gryphon-gbt-4400-gryphon_gbt4400_2d_0.pdf 1.13MB Download

Scanner Gryphon GBT4400 2D BT KIT

With rich feature sets, the Gryphon™ product series from Datalogic ADC represents the premium level of data collection equipment for general purpose applications. Top reading performance on 1D, 2D, postal codes, stacked and composite codes. User-replaceable and long lasting Lithium-Ion battery, Image capture and document scanning capabilities, Bluetooth Wireless Technology with up to 30 m / 98 ft range. Datalogic's patented 'Green Spot' technology for good-read feedback, Two-position cradle with Scan-While-Charging capability. Featuring Bluetooth® Wireless Technology, the Gryphon GBT4400 2D reader is designed with Datalogic’s Motionix™ motion-sensing technology, which enables the scanner to intuitively switch into handheld mode when the device is picked up. When placed back into the stand, it seamlessly returns to stand mode, eliminating the need to scan a code or to rely on a mechanical switch to make this change. The two-position base station provides the flexibility to use the scanner in presentation or stand mode while it’s charging. The scanner also features Datalogic’s patented ‘Green Spot’ for additional good read confirmation by placing a green spot directly on the code. Lightweight and comfortable to use, the steady, dim, deep red illumination light is much easier on the eyes than other similar products with flicker illumination, even during extended periods of use. The highly visible 4-Dot aimer clearly defines the reading zone of the scanner and the center cross provides a locator for targeting when scanning a sheet or product with multiple bar codes.





Specifications

Scanners
Reading mode 1D / LINEAR CODES-2D CODES. BLUETOOTH WIRELESS TECHNOLOGY Piconet: Max. Readers per Radio Receiver: 7 (when using an external Piconet dongle); Profiles: SPP (Serial Port Profile) Protocol: Bluetooth 2.0 Certified Class 2; Radio Frequency: 2.4 GHz Radio Range (Open Air): 30.0 m / 98.4 ft; Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results. Security: Data Encryption; Scanner Authentication
Scanning range/ Βάθος πεδίου High Density (HD): Data Matrix: 5 mils: 2.8 to 6.1 cm / 1.1 to 2.4 in EAN-13: 13 mils: 1.1 to 17.2 cm / 0.4 to 6.8 in PDF417: 4 mils: 1.8 to 6.8 cm / 0.7 to 2.7 in PDF417: 10 mils: 0 to 14.3 cm / 0 to 5.6 in QR Code: 6.7 mils: 2.1 to 4.2 cm / 0.8 to 1.7 in Standard Range (SR): Data Matrix: 10 mils: 2.0 to 16.0 cm / 0.8 to 6.3 in Data Matrix: 15 mils: 0 to 23.6 cm /0 to 9.3 in EAN-13: 13 mils: 1.5 to 40.0 cm / 0.6 to 15.7 in PDF417: 10 mils: 0.5 to 22.0 cm / 0.2 to 8.6 in QR Code: 3.0 to 12.5 cm / 1.2 to 4.9 in
Scanning range/ Width of Field High Density (HD): Code 39: 3 mils: 2.4 to 9.1 cm / 0.9 to 3.6 in Code 39: 5 mils: 0.8 to 11.3 cm / 0.3 to 4.5 in Standard Range (SR): Code 39: 5 mils: 4.0 to 19.0 cm / 1.6 to 7.5 in Code 39: 10 mils: 1.0 to 30.0 cm / 0.4 to 11.8 in
Scan Rate Ρυθμός σάρωσης 60 frames per second
Resolution High Density (HD): 1D Linear: 0.077 mm / 3 mils Data Matrix: 0.127 mm / 5 mils PDF417: 0.102 mm / 4 mils Standard Range (SR): 1D Linear: 0.102 mm / 4 mils Data Matrix: 0.178 mm / 7 mils PDF417: 0.127 mm / 5 mils
Interfaces RS-232 / IBM 46XX / USB Multi-Interface; RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
Dimensions Cradle: 18.6 x 9.9 x 5.6 cm / 7.25 x 3.9 x 2.2 in Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Weight Cradle: 246 g / 8.68 oz; Reader: 245 g / 8.64 oz
Ambient light 0 - 100,000 lux
Sealing IP52
Symbologies Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. 2D CODES Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; QR Code POSTAL CODES Australian Post; China Post; IMB; Japanese Post; KIX Post; Korea Post; Planet Code; Postnet; Royal Mail Code (RM4SCC) STACKED CODES EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar. Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E. Composites
Additional features BATTERY Battery Type: Lithium-Ion, 2100 mAh; Charge Time: External Power: 4 Hours @ 12 VDC; Reads per Charge: 50,000 CRADLE INDICATOR LEDS Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow) CURRENT Charging (Typical): < 8 W; Operating (Typical): < 2.5 W @ 5 VDC; Standby/Idle (Typical): < 2.5 mA @ 5 VDC Τάση: 4.5 - 14.0 VDC
