Scanner Gryphon GBT4100 KIT

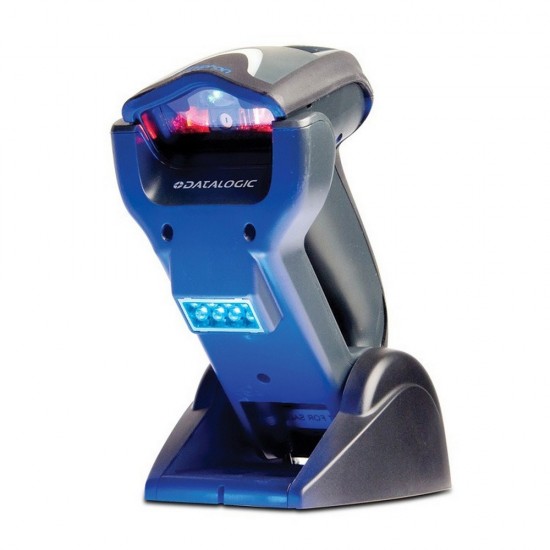

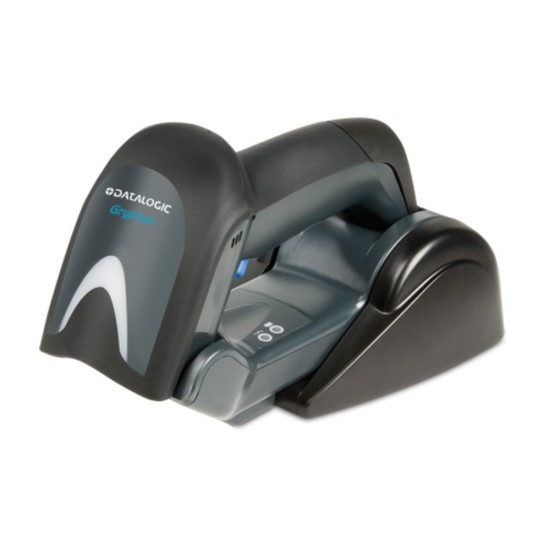

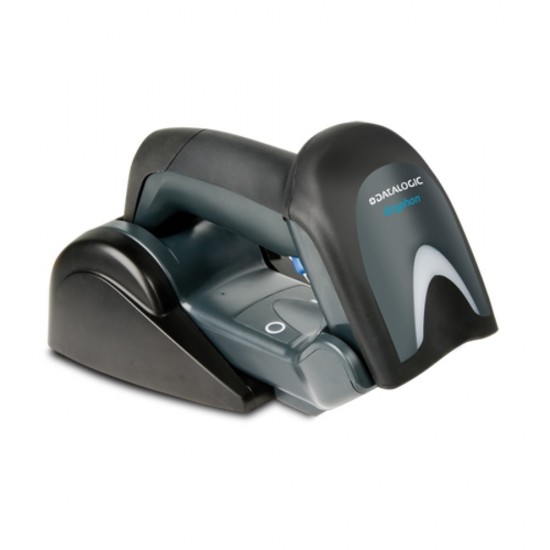

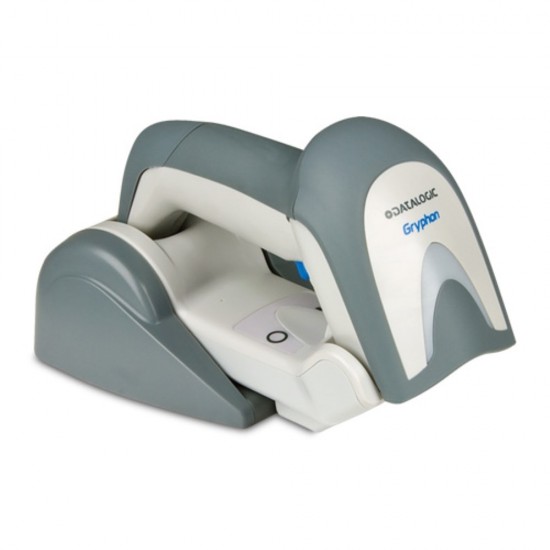

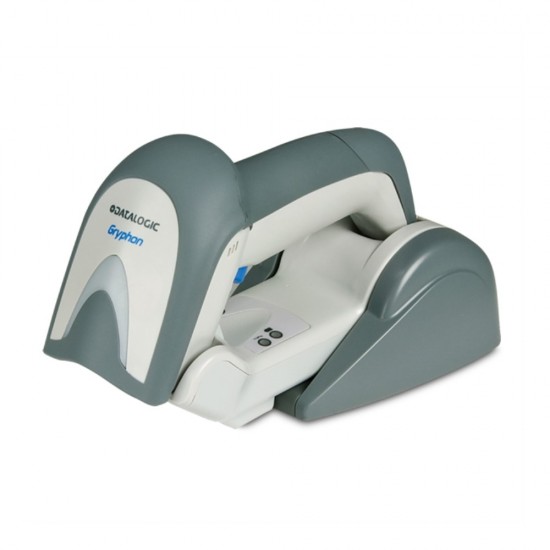

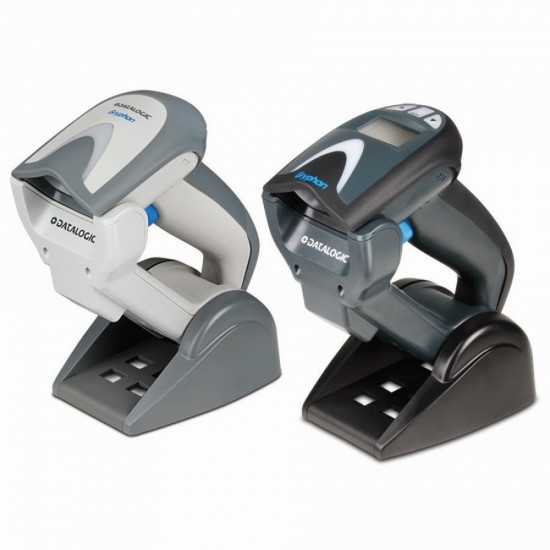

Cordless Bluetooth® linear imager providing standard Bluetooth connectivity and top 1D reading performance.
Featuring Bluetooth® Wireless Technology, the Gryphon GBT4100 readers eliminate the need for cables that limit operator movement and create safety concerns in the workplace. The reader can also transmit data to the host through its base station as well as to any commercial or embedded Bluetooth® v2.0 compliant device. Datalogic’s unique 2-position cradle provides multiple features for the user. When in the ‘up’ position, this imager can be used as a hands-free or presentation style reader. With the Scan-While-Charging feature, there is never any concern about depleted or dead batteries, ensuring constant up-time for increased productivity. The Gryphon GBT4100 reader’s batch mode capability allows more than 1200 bar codes to be stored in the memory.
Combined with a 33,000 scans per charge Lithium-Ion battery, these two features create unlimited mobility and reliable data collection when out-of-range. Standard multi-interface capabilities include USB, RS-232, Keyboard Wedge and Wand Emulation for the GBT4130 models. IBM interface models include IBM 46XX, USB and RS-232 Emulation for the GBT4110 models.

Specifications

Scanners
Reading mode 1D / LINEAR CODES
Scanning range/ Βάθος πεδίου Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. 5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in. 7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in 10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in. 13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in. 20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in.
Scanning range/ Width of Field Code 39
Scan Rate Ρυθμός σάρωσης 325 reads/sec.
Resolution 0.076 mm / 3 mils
Interfaces RS-232 / IBM 46XX / USB Multi-Interface; RS-232 / USB / Keyboard Wedge / Wand Multi- Interface
Dimensions Cradle: 18.6 x 9.9 x 5.6 cm / 7.25 x 3.9 x 2.2 in Reader: 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
Weight Cradle: 246 g / 8.68 oz; Reader: 225 g / 7.94 oz
Ambient light 0 - 100,000 lux
Sealing IP52
Symbologies Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. POSTAL CODES: China Post. STACKED CODE: GS1 DataBar Expanded Stacked; GS1 DataBar. Stacked; GS1 DataBar Stacked Omnidirectional
Additional features BATTERY Battery Type: Lithium-Ion, 2100 mAh/ Charge Time: External Power (12 VDC): 4 Hours Reads per Charge: 33,000/ CRADLE INDICATOR LEDS Battery Charging (Red); Charge Completed (Green); Power/Data (Yellow)/ CURRENT Charging (Typical): < 8 W/ Operating (Typical): < 2.5 W @ 5 VDC/ standby/ Idle (Typical): < 2.5 mA @ 5 VDC/ INPUT VOLTAGE 4.5 - 14.0 VDC
