TD1100 65 lite Imaging 1D Scanner

TD1100 65 lite Imaging 1D Scanner
TD1100 65 lite Imaging 1D Scanner
TD1100 65 lite Imaging 1D Scanner
TD1100 65 lite Imaging 1D Scanner
TD1100 65 lite Imaging 1D Scanner
TD1100 65 lite Imaging 1D Scanner
TD1100 65 lite Imaging 1D Scanner
TD1100 65 lite Imaging 1D Scanner
TD1100 65 lite Imaging 1D Scanner

Downloads

File Size Download
DS-TD1100-ENA4.pdf 177.31KB Download

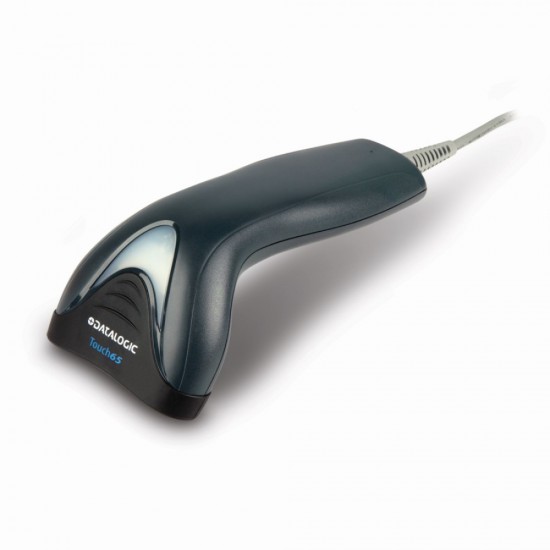

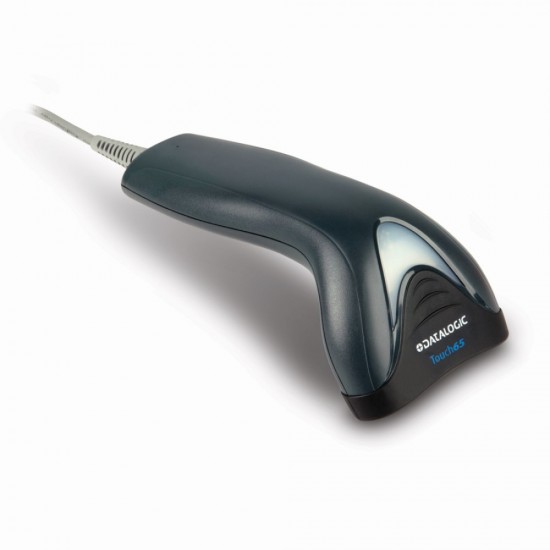

Scanner Datalogic TD1100 65 lite Imaging 1D

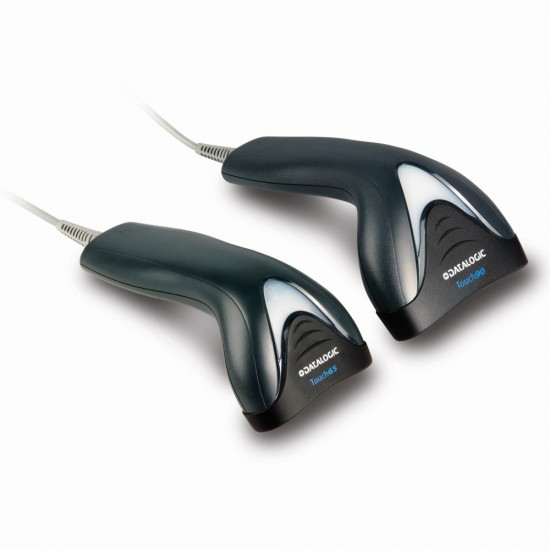

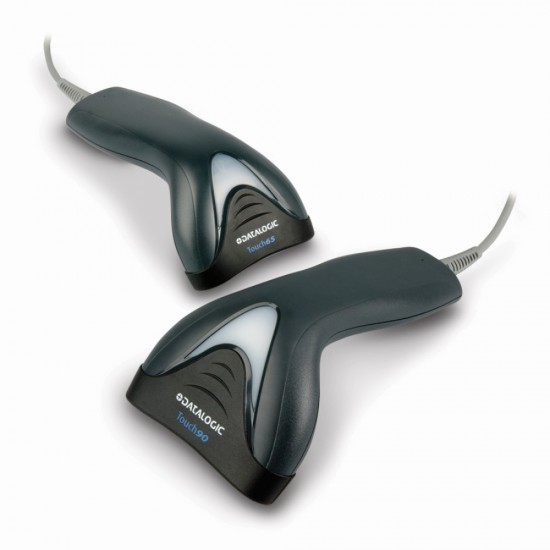

The TD1100 series of linear imaging contact readers represent a cost-effective solution for close contact bar code reading with high quality and performance. Designed for low throughput applications within multiple markets, the TD1100 readers provide the guarantee of contact reading with an excellent reading performance on virtually all linear bar codes, including damaged or poorly printed codes. Small, lightweight and low on energy consumption, the TD1100 readers available with the option of two different sizes of reading windows. The TD1100 65/90 Pro readers provide a complete all-in-one multi-interface solution, including RS-232, USB and Keyboard Wedge and Wand Emulation, while the TD1100 65/90 Lite readers provide USB or RS-232/Keyboard Wedge interfaces. An innovative ‘read-thru’ holder provides the TD1100 readers with hands-free reading capability on documents or small items.

Specifications

Scanners
Reading mode 1D / LINEAR CODES. Autodiscriminates all standard 1D codes including GS1 DataBarTM linear codes.
Scanning range/ Βάθος πεδίου Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. Code 39: 7.5 mils: 0 to 8.1 cm / 0 to 3.2 in. Code 39: 10 mils: 0 to 12.0 cm / 0 to 4.7 in. EAN13: 13 mils: 0 to 15.0 cm / 0 to 6.0 in
Scanning range/ Width of Field Wide reading windows: 6.5cm /2.6in and 9.0cm/3.5 in. Pitch: 65°; Roll (Tilt): 45°; Skew (Yaw): 70°
Scan Rate Ρυθμός σάρωσης 325 reads/sec
Resolution 0.102 mm / 4 mil
Interfaces RS-232 / Keyboard Wedge: 65/90 Lite. RS-232 / USB / Keyboard Wedge / Wand Emulation Multi-Interface: 65/90 Pro. USB: 65/90 Lite
Dimensions 16.0 x 8.4 x 5.8 cm / 6.3 x 3.3 x 2.3 in
Weight 130.0 g / 4.6 oz
Ambient light 0 - 20,000 lux
Sealing IP30
Symbologies GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional
Additional features Drop Resistance Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. ESD Protection (Air Discharge) 16 kV. Humidity (Non-Condensing) 5 - 95%. Temperature Operating: 0 to 50°C/32 to 122°F Storage/Transport: -20 to 70 °C / -4 to 158 °F.
